Parts List
Key:
Instock.
Nilstock.
Contact MRE.

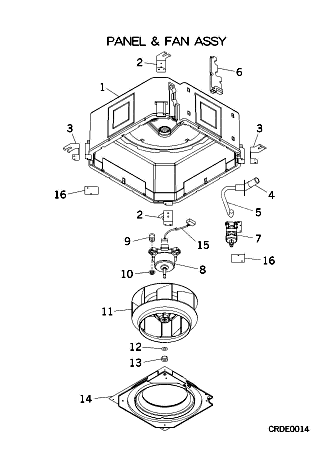

Check the parts position number [ ] matching with the drawing. Login to view prices.
[1-3]
Contact
PJA100A760A
CABINET ASSY
Contact
[2]
Contact
PJA032A760
HOLDER
Contact
[3]
Contact
PJA032A760A
HOLDER
Contact
[4]
Out of Stock
SSA422C086
SOCKET
[4-5]
Contact
PJA422C600
SOCKET ASSY
Contact
[5]
Contact
SSA423A092
HOSE,DRAIN
Contact
[6]
Contact
PJA132A760
LID
Contact
[7]
In Stock
PJA451A505P
PUMP ASSY DRAIN
[8]
In Stock
SSA512T131
FAN MOTOR
[9]
In Stock
SSA941C309A
CUSION RUBBER
Notes: 1pc only - SOLD INDIVIDUALLY
[10]
In Stock
SSA914C015
NUT FLANGE
[11]
Out of Stock
SSA431J018
FAN,TURBO
Substitute: OUT OF PRODUCTION Notes: OUT OF PRODUCTION Show Image
[12]
In Stock
W205H10
WASHER
[13]
In Stock
N001A10
NUT
[14]
Contact
PJA433A751
BELLMOUTH ASSY
Contact
[15]
Contact
PJA504A751
HARNESS ASSY
Contact
[16]
Contact
PJA116A752
BRACKET
Contact
[17]
In Stock
PSA006A039
HOSE SET, DRAIN
[18]
In Stock
V300Y38
CLAMP
