STM50ZE-S HEAT EXCH. ASSY

Name: STM50ZE-S HEAT EXCH. ASSY
SKU: STM50ZE-S HEAT EXCH. ASSY
Availability: InStock

STM50ZE-S HEAT EXCH. ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

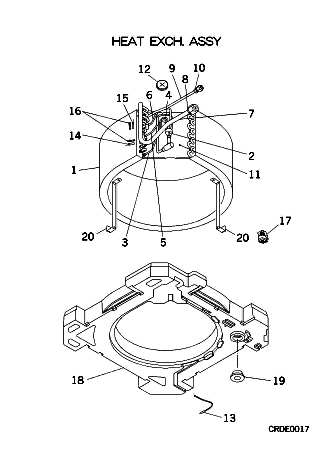

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact

RJH311A001

HEAT EXCH(AIR)

Contact

[1-12] In Stock

RJH301A001

HEAT EXCH A

[2] Out of Stock

SSA315A252A

DISTRIBUTOR

[2-6] Contact

RJH315A001

DISTRIBUTOR ASSY

Contact

[3] Contact

RJH315B001

CAPILLARY(1)

Contact

[4] Contact

RJH315B002

CAPILLARY(2)

Contact

[5] Contact

RJH315B003

CAPILLARY(3)

Contact

[6] Contact

RJH315B004

CAPILLARY(4)

Contact

[7-8] Contact

RJH315D001

HEADER ASSY,GAS

Contact

[8] In Stock

SSA323F012B

UNION

Notes: GAS Show Image

[9-10] Contact

RJH321A001

PIPING ASSY

Contact

[10] Contact

SSA323F084

UNION

Contact

Notes: LIQ.

[11] Contact

PJA141A750

PLATE ASSY,BAFFLE

Contact

[12] In Stock

S751W25X

GROMMET

Notes: D30 Show Image

[13] In Stock

PJA551A010W

SENSOR(TEMP

Notes: THI-A Show Image

[14] In Stock

PJA551A005CC

SENSOR(TEMP

Notes: THI-R1 Show Image

[15] Out of Stock

PJA551A005CB

SENSOR(TEMP)

Notes: THI-R2(CAPILLARY), OUT OF PRODUCTION - THI-R2(CAPILLARY)

[16] Out of Stock

RKJ941F001

SPRING LEAF

Substitute: PSA941F001 Notes: FOR SENSOR Show Image

[17] Out of Stock

PJA536A700B

SWITCH ASSY

Substitute: OUT OF PRODUCTION Notes: FS Show Image

[18-19] In Stock

PJA454A750A

PAN ASSY,DR

[19] Contact

SSA326A022

PLUG

Contact

[20] Contact

PJA116A754

BRACKET

Contact
