STM35ZF-S PANEL AND FAN ASSY

Name: STM35ZF-S PANEL AND FAN ASSY
SKU: STM35ZF-S PANEL AND FAN ASSY
Availability: InStock

STM35ZF-S PANEL AND FAN ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

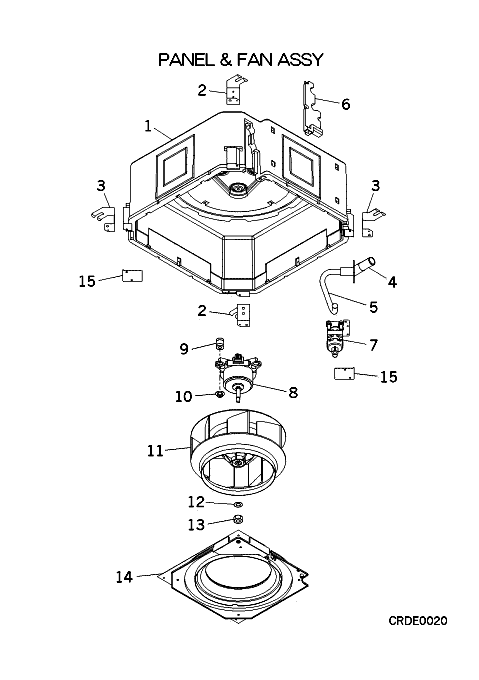

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-3] Contact

PJA100A760A

CABINET ASSY

Contact

[2] Contact

PJA032A760

HOLDER

Contact

[3] Contact

PJA032A760A

HOLDER

Contact

[4] Out of Stock

SSA422C086

SOCKET

[4-5] Contact

PJA422C600

SOCKET ASSY

Contact

[5] Contact

SSA423A092

HOSE,DRAIN

Contact

Substitute: SSA422C600

[6] Contact

PJA132A760

LID

Contact

[7] In Stock

PJA451A505P

PUMP ASSY DRAIN

Show Image

[8] In Stock

SSA512T131

FAN MOTOR

[9] In Stock

SSA941C309A

CUSION RUBBER

Notes: 1pc only - SOLD INDIVIDUALLY

[10] In Stock

SSA914C015

NUT FLANGE

Notes: 1pc Show Image

[11] Out of Stock

SSA431J018

FAN,TURBO

Substitute: OUT OF PRODUCTION Notes: OUT OF PRODUCTION Show Image

[12] In Stock

W205H10

WASHER

Notes: 1pc ONLY Show Image

[13] In Stock

N001A10

NUT

Notes: 1pc Show Image

[14] Contact

PJA433A751

BELLMOUTH ASSY

Contact

[15] Contact

PJA116A752

BRACKET

Contact

[16] In Stock

PSA006A039

HOSE SET, DRAIN

[17] In Stock

V300Y38

CLAMP

Notes: CLAMP Show Image
