SRRM60ZE-S HEAT EXCH. AND CONTROL

Name: SRRM60ZE-S HEAT EXCH. AND CONTROL
SKU: SRRM60ZE-S HEAT EXCH. AND CONTROL
Availability: InStock

SRRM60ZE-S HEAT EXCH. AND CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

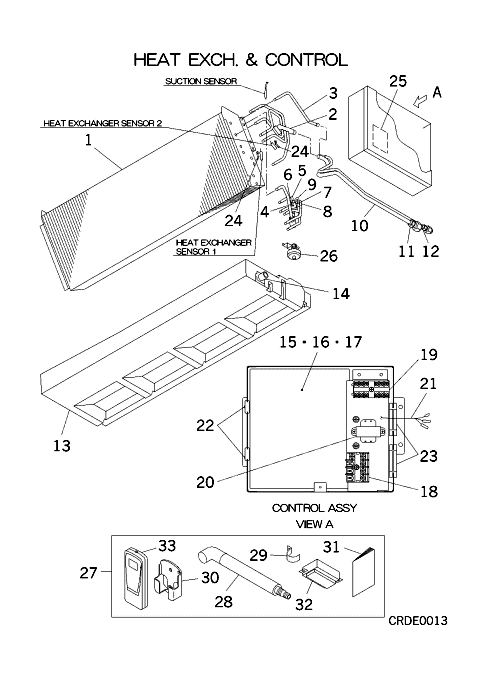

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-9] Contact

RJD301A104

HEAT EXCH A

Contact

[2] Contact

RJD315D102

HEADER ASSY

Contact

[3] Contact

RJD321A115

PIPE

Contact

[4] Contact

SSA315A252

DISTRIBUTOR

Contact

[4-9] Contact

RJD315A100

DISTRIBUTOR ASSY

Contact

[5] Contact

RJD315B100

CAPILLARY

Contact

[6] Contact

RJD315B101

CAPILLARY

Contact

[7] Contact

RJD315B102

CAPILLARY

Contact

[8] Contact

RJD315B103

CAPILLARY

Contact

Notes: !D2.8XD4.0 L70

[9] Contact

RJD315B104

CAPILLARY

Contact

[10-12] Contact

RJD321A101A

PIPE ASSY

Contact

[11] Contact

SSA323F082B

UNION(SLD)

Contact

Notes: GAS, FOR GAS

[12] Contact

SSA323F082A

UNION(SLD)

Contact

Notes: LIQ.

[13-14] Out of Stock

RJD454A100

PAN ASSY,DR

[14] Contact

RKA454A004

SOCKET

Contact

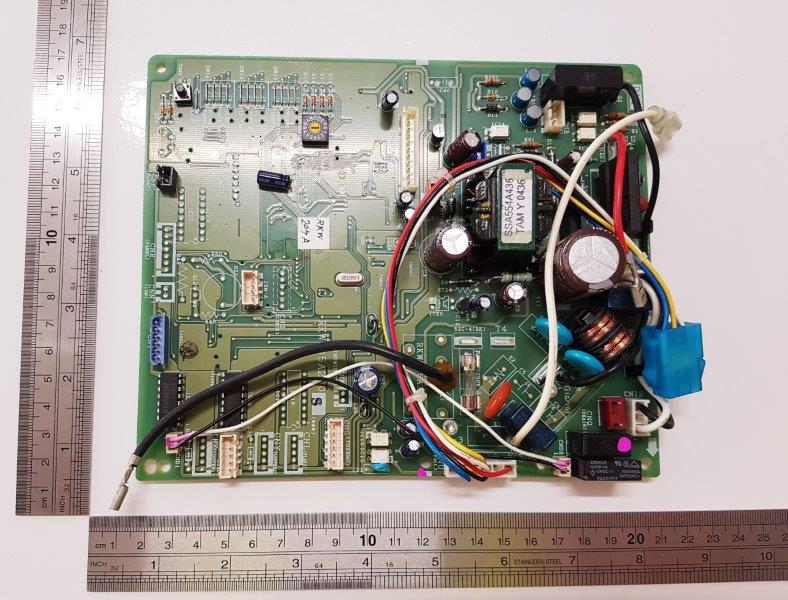

[15-17] In Stock

RKW505A200S

PWB ASSY

Show Image

[16] In Stock

SSA555B050C

VARISTOR

Notes: Z1 Show Image

[17] In Stock

SSA564A132

FUSE(CURRENT)

Notes: 3.15A Show Image

[18] In Stock

SSA561B702B

BLOCK,TERMINAL

Notes: T2 Show Image

[19] Contact

SSA561B686G

BLOCK,TERMI

Contact

[20] In Stock

SSA554A480

TRANSFORMER

Notes: TR Show Image

[21] In Stock

SSA551A212A

SENSOR ASSY

Notes: 3 SENSORS ON 1 PLUG Show Image

[22] Contact

SSA947B019

GROMMET

Contact

Notes: 16X8

[23] Contact

SSA947B104

GROMET

Contact

Notes: D37

[24] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR THI-R Show Image

[25] Contact

RJD011G100

LABEL,WIRING

Contact

[26] In Stock

RJD536A002A

FLOAT ASSY

Notes: FLOAT SWITCH Show Image

[27] Contact

RJD008A100

PARTS,STANDARD

Contact

[28] In Stock

SSA423A012F

DRAIN HOSE

[29] Out of Stock

SSA937A815A

CLAMP

[30] In Stock

RKN032A002B

HOLDER

Show Image

[31] Contact

RJD012A100

MANUAL,INSTRUCTION

Contact

[32] Out of Stock

RJD503A100

DISPLAY ASSY

Substitute: OUT OF PRODUCTION

[33] In Stock

RMA502A001F

REMOCON ASSY

Notes: RKR032A002 remote control holder Show Image

[34] Contact

RWA011F006C

LABEL,MODEL NAME

Contact

SKU: SRRM60ZE-S HEAT EXCH. AND CONTROL Category: Uncategorised
