SRRM35ZE-S HEAT EXCH. AND CONTROL

Name: SRRM35ZE-S HEAT EXCH. AND CONTROL
SKU: SRRM35ZE-S HEAT EXCH. AND CONTROL
Availability: InStock

SRRM35ZE-S HEAT EXCH. AND CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

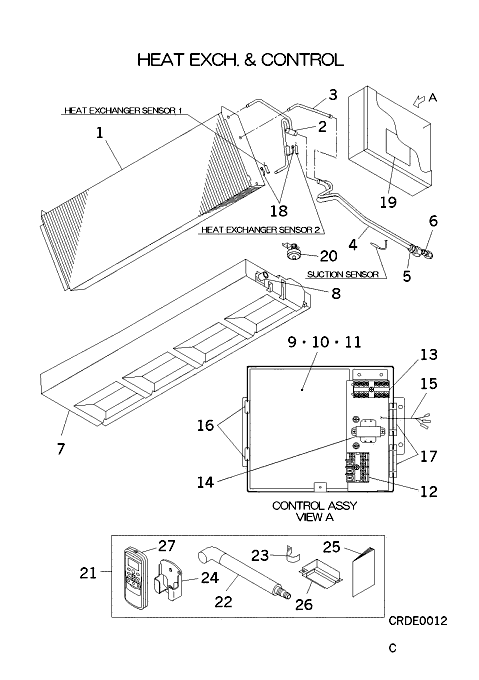

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-3] In Stock

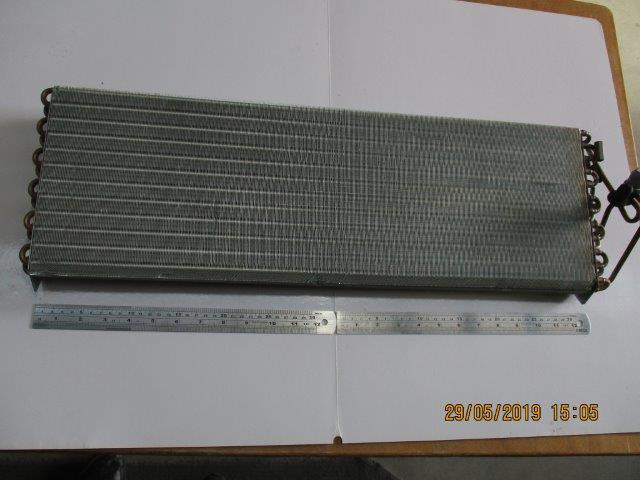

RJD301A103

HEAT EXCH A

Show Image

[2] Contact

RJD315D100

HEADER ASSY

Contact

[3] Contact

RJD321A100

PIPE

Contact

[4-6] Contact

RJD321A101

PIPE ASSY

Contact

[5] Contact

SSA323F082

UNION

Contact

Notes: GAS

[6] Contact

SSA323F082A

UNION(SLD)

Contact

Notes: LIQ.

[7-8] Out of Stock

RJD454A100

PAN ASSY,DR

[8] Contact

RKA454A004

SOCKET

Contact

[9-11] In Stock

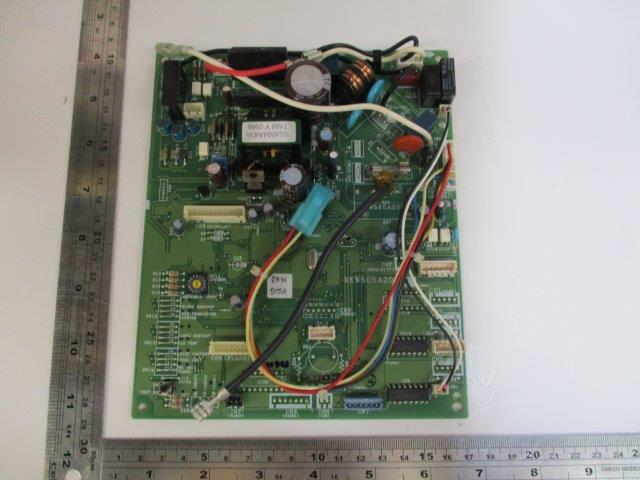

RKW505A200P

PWB ASSY

Show Image

[10] In Stock

SSA555B050C

VARISTOR

Notes: Z1 Show Image

[11] In Stock

SSA564A132

FUSE(CURRENT)

Notes: 3.15A Show Image

[12] In Stock

SSA561B702B

BLOCK,TERMINAL

Notes: T2 Show Image

[13] Contact

SSA561B686G

BLOCK,TERMI

Contact

[14] In Stock

SSA554A480

TRANSFORMER

Notes: TR Show Image

[15] In Stock

SSA551A212A

SENSOR ASSY

Notes: 3 SENSORS ON 1 PLUG Show Image

[16] Contact

SSA947B019

GROMMET

Contact

Notes: 16X8

[17] Contact

SSA947B104

GROMET

Contact

Notes: D37

[18] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR THI-R Show Image

[19] Contact

RJD011G100

LABEL,WIRING

Contact

[20] In Stock

RJD536A002A

FLOAT ASSY

Notes: FLOAT SWITCH Show Image

[21] Contact

RJD008A100

PARTS,STANDARD

Contact

[22] In Stock

SSA423A012F

DRAIN HOSE

[23] Out of Stock

SSA937A815A

CLAMP

[24] In Stock

RKN032A002B

HOLDER

Show Image

[25] Contact

RJD012A100

MANUAL,INSTRUCTION

Contact

[26] Out of Stock

RJD503A100

DISPLAY ASSY

Substitute: OUT OF PRODUCTION

[27] In Stock

RMA502A001F

REMOCON ASSY

Notes: RKR032A002 remote control holder Show Image

[28] Contact

RWA011F006A

LABEL,MODEL NAME

Contact

SKU: SRRM35ZE-S HEAT EXCH. AND CONTROL Category: Uncategorised
