SRR60ZS-W CONTROL AND PARTS SET

Name: SRR60ZS-W CONTROL AND PARTS SET
SKU: SRR60ZS-W CONTROL AND PARTS SET
Availability: InStock

SRR60ZS-W CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

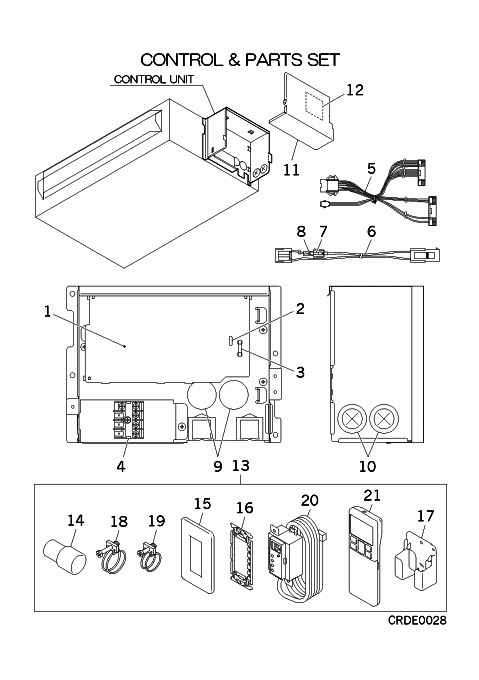

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-10] Contact

RJJ501A001H

CONTROL UNIT

Contact

Notes: !

[1-3] Contact

RKY505A001SP

PWB ASSY

Contact

[2] In Stock

SSA555B050C

VARISTOR

Notes: Z, Z1 Show Image

[3] In Stock

SSA564A132

FUSE(CURRENT)

Notes: F 3.15A, 3.15A Show Image

[4] In Stock

SSA561B702B

BLOCK,TERMINAL

Notes: T1, T2 Show Image

[5] In Stock

RJJ504A001

HARNESS ASSY

Notes: CNE,CNF- CNE,CNY Show Image

[6-8] In Stock

RJJ504A002

HARNESS ASSY

Notes: CNW- CNW Show Image

[7] In Stock

SSA564A139

FUSE(CURRENT)

Notes: F 0.16A Show Image

[8] In Stock

RWC564B002

HOLDER,FUSE

Show Image

[9] Contact

S751W25

GROMMET

Contact

Notes: D30

[10] In Stock

S751W25X

GROMMET

Notes: D30 Show Image

[11] In Stock

PJH142A020

LID ASSY CONT.(MAIN)

[12] Contact

RJJ011G001

LABEL,WIRING

Contact

Notes: !

[13] In Stock

RJJ008A001D

PARTS,STANDARD

Notes: !

[14] In Stock

PJA129A103C

SOCKET #1

Notes: LENGTH 6.5CM Show Image

[15] In Stock

RJD132A003

COVER CONT

[16] In Stock

RJD119A100

FRAME

Notes: LENGTH 11CM Show Image

[17] In Stock

RLA032A700

HOLDER(REMO-CON)

Notes: REMOTE CONTROL HOLDER/CRADLE Show Image

[18] In Stock

V300Y38

CLAMP

Notes: CLAMP Show Image

[19] In Stock

V300Y30

CLAMP

Show Image

[20] In Stock

RJD503A100D

DISPLAY ASSY

Notes: RECEIVER / DISPLAY BOARD - COMES WITH WIRING HARNESS

[21] In Stock

RLA502A700M

CONTROL REMOTE

[22] Contact

RJJ011F002BD

LABEL,MODEL NAME

Contact

Notes: !

SKU: SRR60ZS-W CONTROL AND PARTS SET Category: Uncategorised
