SRR60ZJ-S/A HEAT EXCH. AND CONTROL

Name: SRR60ZJ-S/A HEAT EXCH. AND CONTROL
SKU: SRR60ZJ-S/A HEAT EXCH. AND CONTROL
Availability: InStock

SRR60ZJ-S/A HEAT EXCH. AND CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

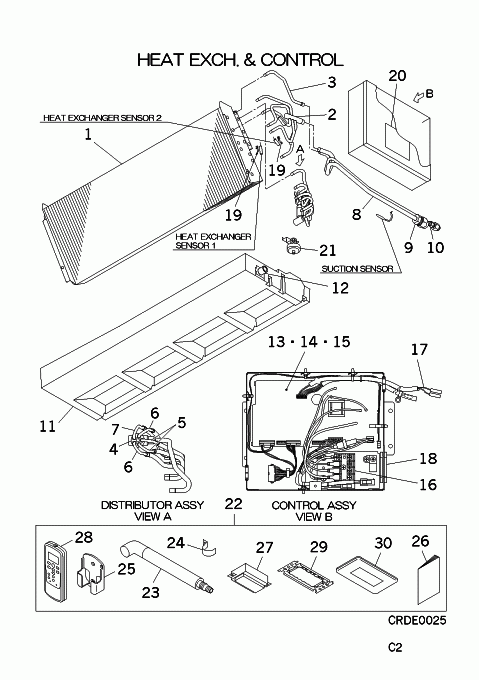

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-7] Out of Stock

RJD301A108

HEAT EXCH ASSY(AIR

[2] Contact

RJD315D105

HEADER ASSY

Contact

[3] Contact

RJD321A143

PIPE

Contact

[4] Contact

SSA315A252

DISTRIBUTOR

Contact

[4-7] Contact

RJD315A101

DISTRIBUTOR ASSY

Contact

[5] Contact

RJD315B105

CAPILLARY

Contact

Notes: !D2.8XD4.0 L70

[6] Contact

RJD315B103

CAPILLARY

Contact

Notes: !D2.8XD4.0 L70

[7] Contact

RJD315B106

CAPILLARY

Contact

Notes: !D2.8XD4.0 L80

[8-10] Contact

RJD321A140A

PIPE ASSY

Contact

[9] Out of Stock

SSA323F088B

UNION(SLD)

Notes: GAS, FOR GAS‚ / LENGTH 3.2CM Show Image

[10] In Stock

SSA323F088A

UNION(SLD)

Notes: LIQ., FOR LIQ.‚ / LENGTH 2.3CM Show Image

[11-12] Out of Stock

RJD454A100

PAN ASSY,DR

[12] Contact

RKA454A004

SOCKET

Contact

[13-15] In Stock

RKY505A001FD

PWB ASSY

Show Image

[14] In Stock

SSA555B050C

VARISTOR

Notes: Z1 Show Image

[15] In Stock

SSA564A132

FUSE(CURRENT)

Notes: 3.15A Show Image

[16] In Stock

SSA561B702B

BLOCK,TERMINAL

Notes: T1, T2 Show Image

[17] In Stock

SSA551A212A

SENSOR ASSY

Notes: 3 SENSORS ON 1 PLUG Show Image

[18] Contact

SSA947B104

GROMET

Contact

[19] In Stock

RKJ941F001

SPRING LEAF

Show Image

[20] Contact

RJD011G200

LABEL,WIRING

Contact

[21] In Stock

RJD536A002B

FLOAT ASSY

Notes: FLOAT SWITCH

[22] Contact

RJD008A100D

PARTS,STANDARD

Contact

Substitute: OUT OF PRODUCTION

[23] In Stock

SSA423A012F

DRAIN HOSE

[24] Out of Stock

SSA937A815A

CLAMP

[25] In Stock

RKN032A002B

HOLDER

Show Image

[26] Contact

RJD012A200G

MANUAL,INSTRUCTION

Contact

[27] In Stock

RJD503A100A

DISPLAY ASSY

Show Image

[28] In Stock

RKX502A007B

REMOTE CONTROL

Show Image

[29] In Stock

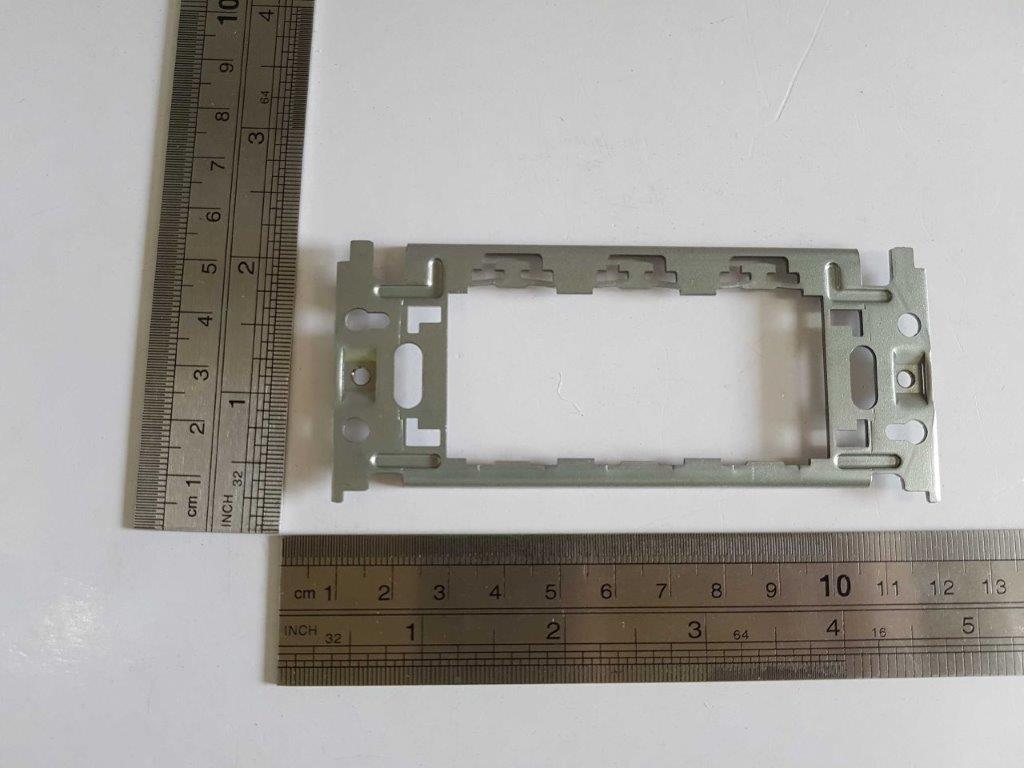

RJD119A100

FRAME

Notes: LENGTH 11CM Show Image

[30] In Stock

RJD132A003

COVER CONT

[31] Contact

RWA011F006AM

LABEL,MODEL NAME

Contact

SKU: SRR60ZJ-S/A HEAT EXCH. AND CONTROL Category: Uncategorised
