SRK95ZRA-W HEAT EXCH. AND CONTROL

Name: SRK95ZRA-W HEAT EXCH. AND CONTROL
SKU: SRK95ZRA-W HEAT EXCH. AND CONTROL
Availability: InStock

SRK95ZRA-W HEAT EXCH. AND CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

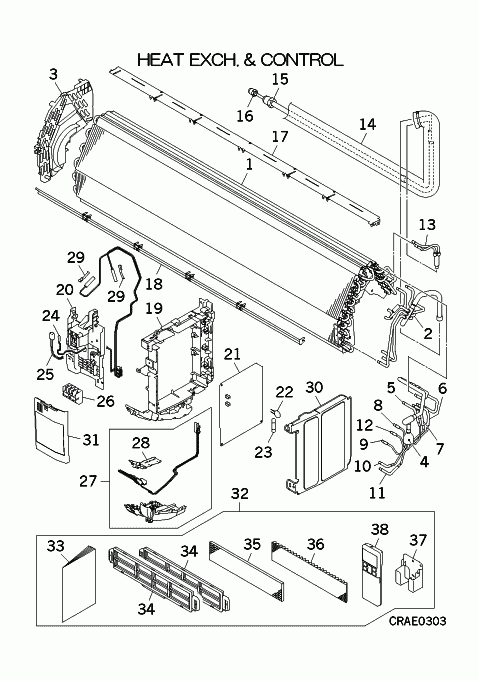

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-18] In Stock

RLD301A003SG

HEAT EXCH ASSY (AIR)

Notes: Indoor Heat exchanger assembly

[2] Contact

RLD315D002B

HEADER ASSY

Contact

[3] In Stock

RLD129A003

BRACKET(L)

[4] Contact

RSA315A006

DISTRIBUTOR

Contact

[4-12] Contact

RLD315A004

DISTRIBUTOR ASSY

Contact

[5] Contact

RLD321A031

PIPE ASSY

Contact

Notes: f2.8xf4.0 L100, f2.8”f4.0 L100

[6] Contact

RLD321A032

PIPE ASSY

Contact

Notes: f2.8xf4.0 L100, f2.8”f4.0 L100

[7] Contact

RLD321A033

PIPE ASSY

Contact

Notes: f2.8xf4.0 L100, f2.8”f4.0 L100

[8] Contact

RLD315B001

CAPILLARY

Contact

Notes: D2.8xD4.0 L100

[9] Contact

RLD315B009

CAPILLARY

Contact

Notes: f2.8xf4.0 L100, f2.8”f4.0 L100

[10] Contact

RLD321A034

PIPE ASSY

Contact

Notes: f2.8xf4.0 L100, f2.8”f4.0 L100

[11] Contact

RLD321A035

PIPE ASSY

Contact

Notes: f2.8xf4.0 L100, f2.8”f4.0 L100

[12] Contact

RLD315B004

CAPILLARY

Contact

Notes: D2.8xD4.0 L100

[13] Contact

RLD321A051

PIPE ASSY

Contact

[14-16] Contact

RLD321A001D

PIPE ASSY

Contact

[15] Contact

SSA323F092D

UNION,SOLDER

Contact

Notes: FOR GAS

[16] In Stock

SSA323F088

UNION(SLD)

Notes: LENGTH 2.6CM Show Image

[17] Contact

RLD129A004

PLATE,BAFFLE

Contact

[18] Contact

RLD129A006

SEAL(A)

Contact

[19] In Stock

PHA142A401

BOX ASSY,CONTROL

[20] Contact

RLD129A016

COVER,BEND

Contact

[21-23] In Stock

RLA505A001SG

PWB ASSY

Notes: INDOOR MAIN PC BOARD Show Image

[22] In Stock

SSA555B050C

VARISTOR

Notes: Z1 Show Image

[23] In Stock

SSA564A132

FUSE(CURRENT)

Notes: 3.15A Show Image

[24] In Stock

SSA551A223L

SENSOR ASSY

Notes: INCL.SENSOR(ROOM TEMP.& HEAT EXCH.), room temp & heat exchanger coil sensors Show Image

[25] In Stock

SSA551B017C

SENSOR(HUMIDITY)

Notes: HUMIDITY SENSOR Show Image

[26] In Stock

SSA561B702B

BLOCK,TERMINAL

Notes: T2 Show Image

[27] In Stock

RLD503A001

DISPLAY ASSY

Notes: DOES NOT INCLUDE FRONT FACIA - INCLUDES RECEIVER BOARD HOUSING AND HARNESS Show Image

[28] In Stock

RLD505A001

PWB ASSY(DISPLAY)

Notes: INDOOR RECEIVER / DISPLAY BOARD WITH HARNESS Show Image

[29] In Stock

RKJ941F001

SPRING LEAF

Show Image

[30] In Stock

RLD142A001

LID,CONTROL

[31] In Stock

RLD132A003H

LID ASSY(TERMINAL)

Show Image

[32] In Stock

RLD008A001AH

PARTS,STANDARD

[33] Contact

RLD012A015F

MANUAL,INSTRUCTION

Contact

[34] In Stock

RKX129A014

HOLDER,FILTER

Notes: 1pc ONLY, FILTER HOLDER - UNIT HAS 2 - SOLD INDIVIDUALLY

[35] In Stock

RKT437A005

FILTER,CLEAN

Notes: 1pc ONLY, PHOTO-CATALYTIC / DEODORIZING FILTER - triangular honeycomb shape

[36] In Stock

RKT437A801D

FILTER,CLEAN(BIO)

Notes: ALLERGEN FILTER. For ZT models the optional Photocatalytic filter is RKT437A005. Show Image

[37] In Stock

RLA032A700

HOLDER(REMO-CON)

Notes: REMOTE CONTROL HOLDER/CRADLE Show Image

[38] In Stock

RLA502A700R

CONTROL,REMOTE

Notes: DOES NOT COME WITH HOLDER PART NUMBER - RLA032A700 Show Image

[39] Contact

RLD011F006D

LABEL,MODEL NAME

Contact

SKU: SRK95ZRA-W HEAT EXCH. AND CONTROL Category: Uncategorised
