SRK92ZL-S PANEL AND FAN ASSY

Name: SRK92ZL-S PANEL AND FAN ASSY
SKU: SRK92ZL-S PANEL AND FAN ASSY
Availability: InStock

SRK92ZL-S PANEL AND FAN ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

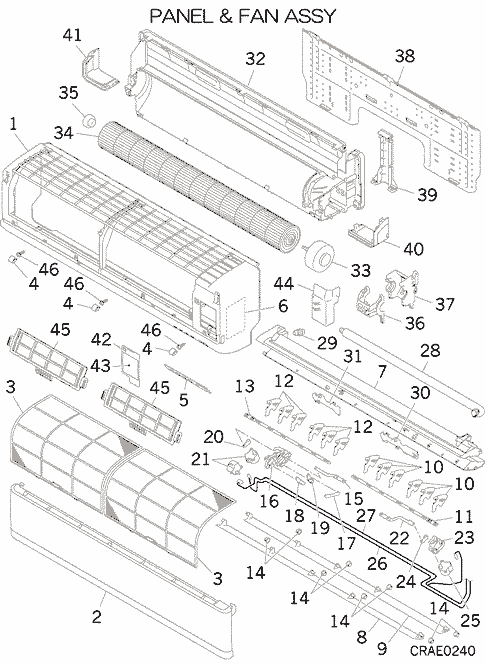

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

RKW122A400

PANEL,FRONT

[1-6] In Stock

RKW102A400

PANEL ASSY,FRONT

[2] In Stock

RKW435A401

PANEL ASSY,AIR IN

Notes: FOR CLIP ONLY SEE RKW129A401 (LEFT) or RKW129A400 (RIGHT)

[3] In Stock

RKW437A400

FILTER, AIR

Notes: 1pc ONLY, RETURN AIR / DUST FILTER - UNIT HAS 2 - SOLD INDIVIDUALLY

[4] In Stock

RKW129A214A

CAP

Show Image

[5] In Stock

RKW133A401

PLATE,ORNAMENT

Show Image

[6] Contact

RKW011G400

LABEL,WIRING

Contact

[7] In Stock

RKW435A202AG

GRILLE ASSY, AIR OUT

Notes: Includes Condensate/Drip tray + all louvers/ louver motors/louver wiring harness & drain hose

[7-31] In Stock

RKW435A202AG

GRILLE ASSY, AIR OUT

Notes: Includes Condensate/Drip tray + all louvers/ louver motors/louver wiring harness & drain hose

[8] In Stock

RKW436A200A

FLAP(A)

Notes: UPPER, UPPER, WIDER FLAP

[9] In Stock

RKW436A201AB

FLAP(B)

Notes: LOWER, LOWER, THINNER FLAP

[10] In Stock

RKW436A203A

LOUVER

Notes: 1pc ONLY, LEFT/RIGHT AIR FLOW Show Image

[10-11] In Stock

RKW436A202B

LOUVER ASSY (R)

Notes: RIGHT SIDE - Includes 6 louvers and louver plate connector

[11] Contact

RKW129A209A

PLATE,CONNECTING

Contact

[12] In Stock

RKW436A203A

LOUVER

Notes: 1pc ONLY, LEFT/RIGHT AIR FLOW Show Image

[12-13] In Stock

RKW436A202C

LOUVER ASSY (L)

Notes: LEFT SIDE - Includes 6 louvers and louver plate connector - LEFT SIDE

[13] Contact

RKW129A209A

PLATE,CONNECTING

Contact

[14] Out of Stock

RKW935C200

COLLAR

Notes: 1pc ONLY, ***SOLD INDIVIDUALLY***

[15] In Stock

RKW129A208A

JOINT(L)

Show Image

[15-21] In Stock

RKW144A200A

LINK ASSY

Show Image

[16] In Stock

RKW129A210

BRACKET,MOTOR(A)

Notes: LENGTH 8.5CM Show Image

[17] In Stock

RKW144A201

LINK

Show Image

[18] In Stock

RKW144A202

CRANK(A)

Show Image

[19] In Stock

RKW144A203

CRANK(B)

Notes: LINKAGE BETWEEN FLAP AND UP/DOWN LOUVER MOTOR HOUSING Show Image

[20] In Stock

RKW144A204

CRANK(C)

Show Image

[21] In Stock

SSA512T158

MOTOR STEPPING

Notes: FOR FLAP Show Image

[22] In Stock

RKW129A207A

JOINT(R)

Notes: LENGTH 9.5CM Show Image

[22-25] In Stock

RKW144A205A

CRANK ASSY

Show Image

[23] In Stock

RKW129A211

BRACKET

Show Image

[24] In Stock

RKW144A204

CRANK(C)

Show Image

[25] In Stock

SSA512T158

MOTOR STEPPING

Notes: FOR FLAP Show Image

[26] In Stock

RKW504A401

HARNESS ASSY

Notes: FOR FLAP MOTOR, FOR FLAP MOTOR - wiring harness for horizontal flap stepping motor Show Image

[27] In Stock

RKW504A402

HARNESS ASSY

Notes: FOR LOUVER MOTOR, FOR LOUVER MOTOR - has two plugs for louver motors - one short harness and one long harness Show Image

[28] In Stock

SSA423A102A

HOSE,DRAIN

[29] In Stock

SSA326A043

PLUG

Notes: LENGTH 3.5CM Show Image

[30] In Stock

RKW116A400

BRACKET,PANEL(R)

Show Image

[31] In Stock

RKW116A401

BRACKET,PANEL(L)

Show Image

[32] In Stock

RKW111A200C

BASE ASSY

Notes: REAR CASING

[33] In Stock

SSA512T099

MOTOR,DC

Notes: FOR IMPELLER, (FOR IMPELLER) COMES WITH WIRING HARNESS Show Image

[34] In Stock

SSA431G043A

IMPELLER

Notes: FAN BARREL / FAN SCROLL - INDOOR Show Image

[35] In Stock

SSA923C136

BEARING, PLANE

Notes: END BEARING Show Image

[36] In Stock

RKW129A201

BRACKET,MOT

Show Image

[37] In Stock

RKW129A202

BRACKET,MOT

[38] In Stock

RKW032A200A

PLATE , INSTALLATION

Notes: BACKING PLATE

[39] In Stock

PHA129A302A

COVER ASSY(PIPE)

Show Image

[40] In Stock

RKW132A400

LID(R)

Notes: RIGHT LID Show Image

[41] In Stock

RKW132A401

LID(L)

Notes: LEFT HAND SIDE LID (WHEN LOOKING AT UNIT) Show Image

[42-43] In Stock

RKW132A403

LID ASSY(TERMINAL)

Show Image

[43] Contact

RSA011H027

LABEL,NOTICE

Contact

[44] In Stock

RKW129A405

COVER,PIPE

[45] In Stock

RKW129A213

HOLDER, FILTER

Notes: 1pc ONLY, FILTER HOLDER ONLY - FILTERS FOR FILTER HOLDER IN "HEAT EXCH. AND CONTROL" Show Image

[46] In Stock

SSA913A007A

SCREW,TAP

Notes: 4X14, 1pc ONLY/ LENGTH 2CM Show Image
