SRK60ZIX-S PANEL AND FAN ASSY

Name: SRK60ZIX-S PANEL AND FAN ASSY
SKU: SRK60ZIX-S PANEL AND FAN ASSY
Availability: InStock

SRK60ZIX-S PANEL AND FAN ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

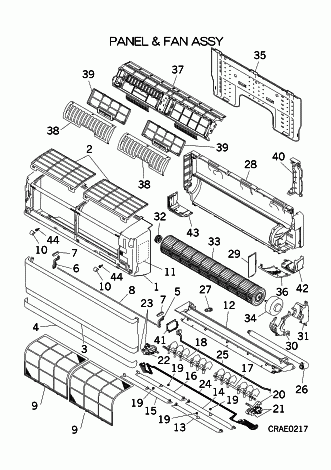

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

RKY122A002F

PANEL ASSY FRONT

[1-11] In Stock

RKY102A001B

PANEL ASSY,FRONT

Notes: GRILLE INCLUDED - includes parts,1,2,3,4,5,6,7,8,9,10,11

[2] In Stock

RKY435A003B

GRILLE, AIR IN (TOP)

Notes: 1pc ONLY

[3-8] In Stock

RKY435A004F

PANEL ASSY, AIR IN

Notes: AIR INTLET PANEL ASSY / FILTER COVER

[4] In Stock

RKY435A007F

PANEL, ORNAMENT

[5] In Stock

RKY144A005

LINK A(R)

Notes: RIGHT Show Image

[6] Out of Stock

RKY144A006

LINK A(L)

Notes: LEFT

[7] In Stock

RKY144A007

LINK A

Show Image

[8] In Stock

RKY144A008

SHAFT

[9] In Stock

RKY437A001

FILTER

Notes: 1pc ONLY, RETURN AIR / DUST FILTER - UNIT HAS 2 - SOLD INDIVIDUALLY Show Image

[10] In Stock

RKY129A012

COVER

Show Image

[11] Contact

RKY011G001B

LABEL,WIRING

Contact

Notes: !

[12] Contact

RKY435A002

GRILLE,AIR OUT

Contact

Notes: NOT FOR SALE-GO TO GRILLE,AIR OUT ''ASSY''

[12-27] In Stock

RKY435A001B

GRILLE ASSY,AIR OUT

Notes: INCLUDES DRIP/CONDENSATE TRAY - LOUVERS, LOUVER HARNESSES AND LOUVER MOTORS

[13] In Stock

RKY436A001

LOUVER

Notes: FLAP ASSY(A) - WIDER/UPPER FLAP

[14] In Stock

RKY436A003

LOUVER

Notes: FLAP ASSY(B) - THINNER/LOWER FLAP

[15] In Stock

RKY436A005

LOUVER

Notes: WIDER/UPPER FLAP

[16] In Stock

RKY436A007

LOUVER

Notes: THINNER/LOWER FLAP Show Image

[17] In Stock

RKY436A009

LOUVER ASSY

Notes: CONNECTIING PLATE & 6 LOUVER BLADES - RIGHT SIDE Show Image

[18] In Stock

RKY436A009A

LOUVER ASSY

Notes: CONNECTIING PLATE & 6 LOUVER BLADES - LEFT SIDE Show Image

[19] Out of Stock

RKW935C200

COLLAR

Notes: 1pc ONLY, ***SOLD INDIVIDUALLY***

[20-21] Out of Stock

RKY144A010

LINK ASSY(R)

Notes: RIGHT Show Image

[21] In Stock

SSA512T158

MOTOR STEPPING

Notes: FOR LOUVER(LEFT/RIGHT) Show Image

[22-23] In Stock

RKY144A011

LINK ASSY(L)

Notes: LEFT Show Image

[23] In Stock

SSA512T158

MOTOR STEPPING

Notes: FOR LOUVER(LEFT/RIGHT) Show Image

[24] In Stock

RKY504A003A

HARNESS ASSY

Notes: FOR FLAP & LOUVER

[25] In Stock

RKY504A004A

HARNESS ASSY

Show Image

[26] In Stock

SSA423A114

HOSE,DRAIN

[27] In Stock

SSA326A047

PLUG

Notes: Plug for condensate/drain tray.

[28] In Stock

RKY111A001

BASE ASSY

[29] Contact

RKY129A002

PLATE,BASE

Contact

[30] In Stock

RKY129A003

BRACKET,MOTOR(U)

Notes: FRONT Show Image

[31] In Stock

RKY129A004

BRACKET,MOTOR(L)

Notes: REAR Show Image

[32] In Stock

SSA923C136

BEARING, PLANE

Notes: END BEARING Show Image

[33] In Stock

SSA431G045A

FAN

[34] In Stock

SSA512T092

MOTOR, DC

Notes: FOR IMPELLER

[35] In Stock

RKY032A001

PLATE,INSTALLATION

[36] In Stock

RKY133A008A

PLATE ASSY,ORNAMEN

Show Image

[37] In Stock

RKY129A036

HOLDER,FILTER

Notes: 1pc ONLY

[37-39] In Stock

RKY129A023B

FILTER UNIT ASSY

[38] In Stock

RKY129A025

HOLDER,FILTER(R)

Notes: 1pc ONLY, !

[39] In Stock

RKY129A028

HOLDER,FILTER

Notes: 1pc ONLY, ! Show Image

[40] Contact

RKY129A034

COVER ASSY(PIPE)

Contact

[41] In Stock

RKY129A030

COVER,CONNECTOR

[42] In Stock

RKY132A001A

LID

[43] In Stock

RKY132A002

LID(L)

[44] In Stock

SSA913A007

SCREW

Notes: 4X12, 1pc ONLY Show Image
