SRK561CENF-A PANEL AND FAN ASSY

Name: SRK561CENF-A PANEL AND FAN ASSY
SKU: SRK561CENF-A PANEL AND FAN ASSY
Availability: InStock

SRK561CENF-A PANEL AND FAN ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

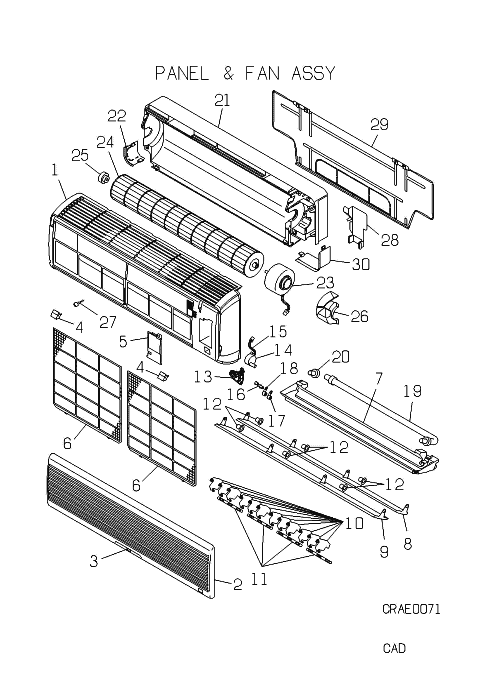

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Out of Stock

RKS122A200H

FRONT PANEL

Substitute: OUT OF PRODUCTION

[1-5] Contact

RKS102A400G

PANEL,FRONT

Contact

Substitute: RKS102A410

[2-3] In Stock

RKS435A410

GRILLE IN

[3] Out of Stock

RKS133A200

ORNAMENT P

[4] Out of Stock

RKS129A207

C A P

[5] Out of Stock

RKS132A202C

L I D

[6] Out of Stock

RKS437A200A

FILTER

Notes: 1pc ONLY, RETURN AIR/DUST FILTER - SOLD INDIVIDUALLY - UNIT HAS 2 Show Image

[7] Contact

RKS435A203

GRILLE OUT

Contact

Substitute: RKS435A202

[7-20] Out of Stock

RKS435A401F

GRILLE IN

Substitute: OUT OF PRODUCTION

[8] In Stock

RKS436A200

FLAP

Notes: LOWER

[9] In Stock

RKS436A201

FLAP

Notes: UPPER

[10] In Stock

RKS436A304

LOUVER

Notes: 1pc ONLY Show Image

[10-11] In Stock

RKS436A302

LOUVER

Show Image

[11] In Stock

RKS129A302

PLATE CONEC

Show Image

[12] In Stock

RKR935C001

COLLAR

Notes: 1pc ONLY, ***SOLD INDIVIDUALLY*** Show Image

[13] In Stock

RKS129A205

BRACKET MOR

Show Image

[13-18] In Stock

RKS144A400

LINK

Show Image

[14] In Stock

SSA512T017

MOTOR,STEPPING

Notes: VERTICAL LOUVER MOTOR LEFT/RGHT AIR FLOW Show Image

[15] In Stock

RKS504A100B

HARNESS

Show Image

[16] Contact

RKS144A201

LINK

Contact

[17] Contact

RKS144A202

CLANK

Contact

[18] Contact

RKS144A203

CLANK

Contact

[19] Out of Stock

RSA423A001A

DRAIN HOSE

Substitute: SSA423A089 Notes: SSA423A082A

[20] In Stock

SSA326A038

PLUG

Show Image

[21-22] Contact

RKS111A200

BASE

Contact

[22] Out of Stock

RKS132A201

L I D

[23] Out of Stock

SSA512T031C

MOTOR DC

Substitute: OUT OF PRODUCTION Notes: FOR IMPELLER Show Image

[24] In Stock

SSA431G039

IMPELLER

[25] In Stock

SSA923C136

BEARING, PLANE

Notes: END BEARING Show Image

[26] Contact

RKS129A202

COVER

Contact

[27] In Stock

SSA913A007

SCREW

Notes: 4x12, 1pc ONLY Show Image

[28] Contact

RKS129A204

COVER

Contact

[29] In Stock

RKR032A001

PLATE

[30] In Stock

RKS132A200

L I D

Show Image

SKU: SRK561CENF-A PANEL AND FAN ASSY Category: Uncategorised
