SRK50ZSA-W HEAT EXCH. AND CONTROL

Name: SRK50ZSA-W HEAT EXCH. AND CONTROL
SKU: SRK50ZSA-W HEAT EXCH. AND CONTROL
Availability: InStock

SRK50ZSA-W HEAT EXCH. AND CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

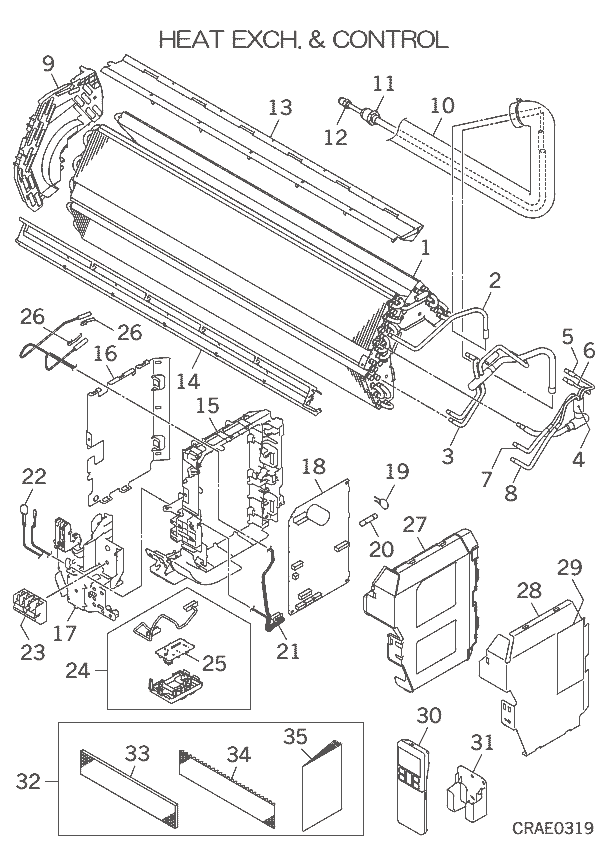

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-14] Out of Stock

RLF301A104SA

HEAT EXCH ASSY (AIR)

Notes: Indoor heat exchanger coil assembly

[2] Contact

RLF321A015

PIPE

Contact

[3] Contact

RLF315D100

HEADER ASSY

Contact

[4] Contact

RKX315A003

DISTRIBUTOR

Contact

Notes: !

[4-8] Contact

RLF315A100

DISTRIBUTOR ASSY

Contact

[5] Contact

RLF315B001

CAPILLARY

Contact

Notes: f2.8xf4.0 L100

[6] Contact

RLF315B002

CAPILLARY

Contact

Notes: f2.8xf4.0 L100

[7] Contact

RLF321A016

PIPE ASSY

Contact

Notes: f2.8xf4.0 L100

[8] Contact

RLF321A017

PIPE ASSY

Contact

Notes: f2.8xf4.0 L100

[9] Contact

RLF129A119

BRACKET ASSY(L)

Contact

[10-12] Contact

RLF321A001A

PIPE ASSY

Contact

[11] Out of Stock

SSA323F088B

UNION(SLD)

Notes: FOR GAS, FOR GAS‚ / LENGTH 3.2CM Show Image

[12] In Stock

SSA323F088A

UNION(SLD)

Notes: FOR LIQ., FOR LIQ.‚ / LENGTH 2.3CM Show Image

[13] Contact

RLF129A105

PLATE,BAFFLE

Contact

[14] In Stock

RLF129A106

SEAL

[15] Contact

RLF142A101

BOX,CONTROL

Contact

[15-16] In Stock

RLF142A100

BOX ASSY CONTROL

Show Image

[16] Contact

RLF132A100

COVER,CONTROL

Contact

[17] Contact

RLF129A107

COVER,BEND

Contact

[18-20] In Stock

RLF505A102AD

PWB ASSY

Notes: INDOOR MAIN PC BOARD Show Image

[19] In Stock

SSA555B050C

VARISTOR

Notes: Z1 Show Image

[20] In Stock

SSA564A132

FUSE(CURRENT)

Notes: 3.15A Show Image

[21] In Stock

SSA551A223P

SENSOR ASSY

Notes: INCL.SENSOR(ROOM TEMP.& HEAT EXCH.), 3 SENSORS. INCL.SENSOR(ROOM TEMP.& HEAT EXCH.) Show Image

[22] In Stock

SSA551B017C

SENSOR(HUMIDITY)

Notes: HUMIDITY SENSOR Show Image

[23] In Stock

SSA561B702B

BLOCK,TERMINAL

Notes: T2 Show Image

[24] In Stock

RLF503A100

PWB, DISPLAY ASSY

Notes: COMES WITH HARNESS AND CASING Show Image

[25] In Stock

RLF505A101

PWB, DISPLAY

Notes: BOARD ONLY - DOES NOT INCLUDE HARNESS - FOR HARNESS AND RECEVER = RLF503A100 Show Image

[26] In Stock

RKJ941F001

SPRING LEAF

Show Image

[27] Contact

RLF132A104

LID,CONTROL

Contact

[27-29] In Stock

RLF142A103A

LID ASSY,CONTROL

[28] Contact

RLF142A105

LID,CONTROL

Contact

[29] Contact

RLF011G100D

LABEL,WIRING

Contact

[30] In Stock

RLA502A720

REMOTE CONTROL

Notes: REMOTE CONTROL HOLDER IS PART NUMBER RLA032A700. Does not come with holder.

[31] In Stock

RLA032A700

HOLDER(REMO-CON)

Notes: REMOTE CONTROL HOLDER/CRADLE Show Image

[32] In Stock

RLF008A100B

PARTS,STANDARD

Notes: Allergen Filter, Photo-Catalytic Deodorizing Filter and User Manual

[33] In Stock

RKT437A005

FILTER,CLEAN

Notes: 1pc ONLY, PHOTO-CATALYTIC / DEODORIZING FILTER - triangular honeycomb shape

[34] In Stock

RKT437A801D

FILTER,CLEAN(BIO)

Notes: ALLERGEN FILTER. For ZT models the optional Photocatalytic filter is RKT437A005. Show Image

[35] Contact

RLF012A104

MANUAL,INSTRUCTION

Contact

[36] Contact

RLF011F101Y

LABEL,MODEL NAME

Contact
