SRK50ZJ-S1 HEAT EXCH. AND CONTROL

Name: SRK50ZJ-S1 HEAT EXCH. AND CONTROL
SKU: SRK50ZJ-S1 HEAT EXCH. AND CONTROL
Availability: InStock

SRK50ZJ-S1 HEAT EXCH. AND CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

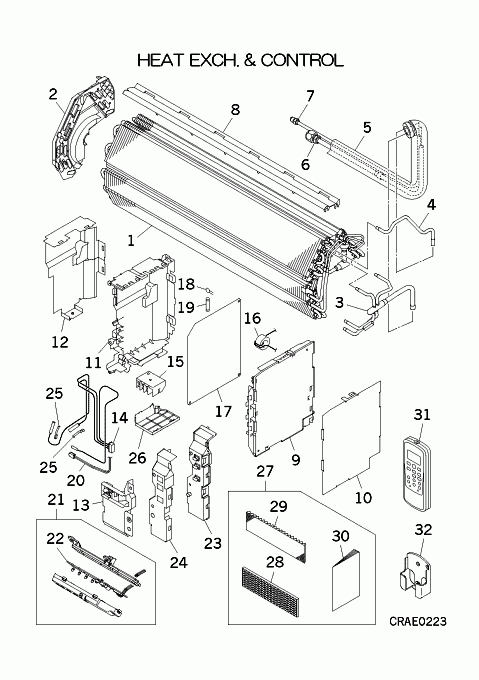

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-8] In Stock

RLA301A013SA

HEAT EXCH ASSY

Notes: HEAT EXCHANGER COIL ASSEMBLY

[2] In Stock

RLA129A004

BRACKET(L)

[3] Contact

RLA315D004

HEADER ASSY

Contact

[4] Contact

RLA321A058

PIPE

Contact

[5-7] In Stock

RLA321A001B

PIPE ASSY

[6] Out of Stock

SSA323F088B

UNION(SLD)

Notes: FOR GAS, FOR GAS‚ / LENGTH 3.2CM Show Image

[7] In Stock

SSA323F088A

UNION(SLD)

Notes: FOR LIQ., FOR LIQ.‚ / LENGTH 2.3CM Show Image

[8] Contact

RLA129A005A

PLATE, BAFFLE

Contact

[9] In Stock

RLA142A003

BOX,CONTROL(R)

Show Image

[9-10] In Stock

RLA142A005

BOX ASSY,CONTROL(R

Show Image

[10] Contact

RLA132A003

COVER,CONTROL(R)

Contact

[11] Contact

RLA142A004

BOX,CONTROL(L)

Contact

[11-12] In Stock

RLA142A006

BOX ASSY,CONTROL(L

Notes: LENGTH 34CM Show Image

[12] Contact

RLA132A004

COVER,CONTROL(L)

Contact

[13] Contact

RLA129A022

COVER,BEND

Contact

[14] In Stock

SSA551A223F

SENSOR ASSY

Notes: 3 sensors on same plug - Room temp & 2x Heat exchanger sensors Show Image

[15] In Stock

SSA561B702B

BLOCK,TERMINAL

Notes: T2 Show Image

[16] In Stock

SSA554D183

KILLER,NOISE

Show Image

[17-19] In Stock

RLA505A001BR

PWB ASSY

Notes: INDOOR MAIN PC BOARD Show Image

[18] In Stock

SSA555B050C

VARISTOR

Notes: Z1 Show Image

[19] In Stock

SSA564A132

FUSE(CURRENT)

Notes: 3.15A Show Image

[20] In Stock

SSA551B017A

SENSOR (HUMIDITY)

Show Image

[21] In Stock

RLA503A001

DISPLAY ASSY

Notes: COMES WITH BRACKET,BOARD,WIRING & FACIA Show Image

[22] In Stock

RLA505A003

PWB ASSY(DISPLAY)

Notes: PCB BOARD AND HARNESS ONLY

[23] In Stock

RLA132A007

LID,CONTROL

Show Image

[23-24] In Stock

RLA132A008

LID ASSY,CONTROL

[24] Out of Stock

RLA132A005

COVER,LID

[25] In Stock

RKJ941F001

SPRING LEAF

Show Image

[26] In Stock

RLA129A023

COVER ASSY(TB)

Show Image

[27] Contact

RLA008A004H

PARTS, STANDARD

Contact

[28] In Stock

RKT437A005

FILTER,CLEAN

Notes: 1pc ONLY, PHOTO-CATALYTIC / DEODORIZING FILTER - triangular honeycomb shape

[29] In Stock

RKT437A801D

FILTER,CLEAN(BIO)

Notes: 1pc ONLY, ALLERGEN FILTER. For ZT models the optional Photocatalytic filter is RKT437A005. Show Image

[30] Contact

RLA012A013F

MANUAL,INSTRUCTION

Contact

[31] In Stock

RKX502A007C

REMOTE CONTROL

Notes: Holder RKN032A002B

[32] In Stock

RKN032A002B

HOLDER

Show Image

[33] Contact

RLA011F002AB

LABEL, MODEL NAME

Contact

SKU: SRK50ZJ-S1 HEAT EXCH. AND CONTROL Category: Uncategorised
