SRK501CENF-A HEAT EXCH. AND CONTROL

Name: SRK501CENF-A HEAT EXCH. AND CONTROL
SKU: SRK501CENF-A HEAT EXCH. AND CONTROL
Availability: InStock

SRK501CENF-A HEAT EXCH. AND CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

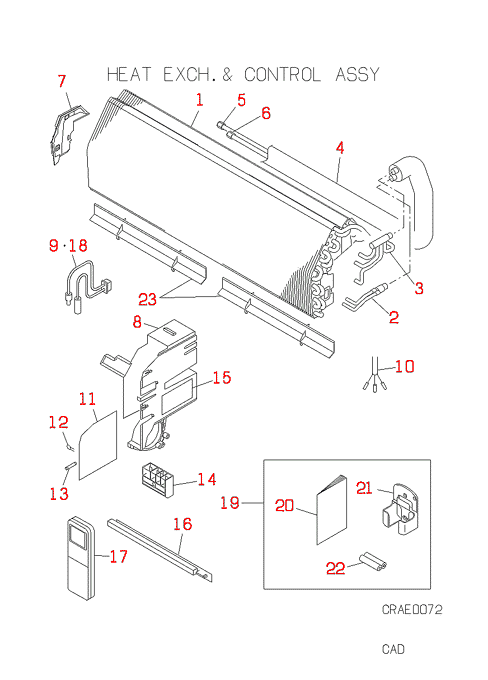

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-3] Contact

RKS301A207

HEAT EXCH

Contact

Substitute: RKS301A206

[1-6] Contact

RKS301A404B

HEAT EXCH

Contact

[2] Contact

RKS321A201

PIPE ASSY

Contact

[3] Contact

RKS315D202

HEADER

Contact

[4-6] Contact

RKS321A412

PIPE

Contact

[5] Contact

SSA323F084

UNION

Contact

Notes: LIQ.

[6] Contact

SSA323F084B

UNION

Contact

Notes: GAS

[7] Contact

RKS129A203

BRACKET

Contact

[8] Contact

RKS142A200

CONT BOX

Contact

[9] In Stock

SSA551A163J

SENSOR

Notes: INCL.SENSOR(ROOM TEMP.& HEAT EXCH.), INCL.SENSOR(ROOM TEMP.& HEAT EXCH.)/ LENGTH 56CM Show Image

[10] Contact

RKS504A014

HARNESS

Contact

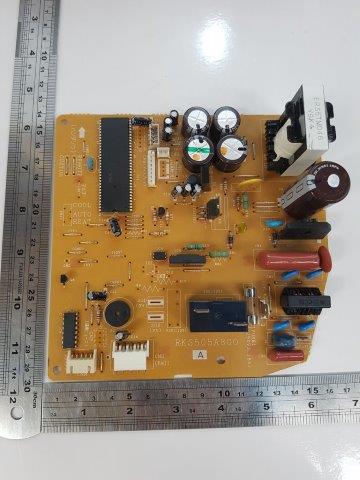

[11-13] In Stock

RKS505A800A

PWB ASSY

Show Image

[12] Contact

SSA555B003B

VARISTOR

Contact

Notes: Z

[13] In Stock

SSA564A132

FUSE(CURRENT)

Notes: 3.15A Show Image

[14] Contact

SSA561B670A

BLOCK,TERMINAL

Contact

[15] Contact

RKS011G800A

LABEL,WIRING

Contact

[16] In Stock

RKS503A400B

DISPLAY

Notes: RECEIVER BOARD WITH WIRING HARNESS Show Image

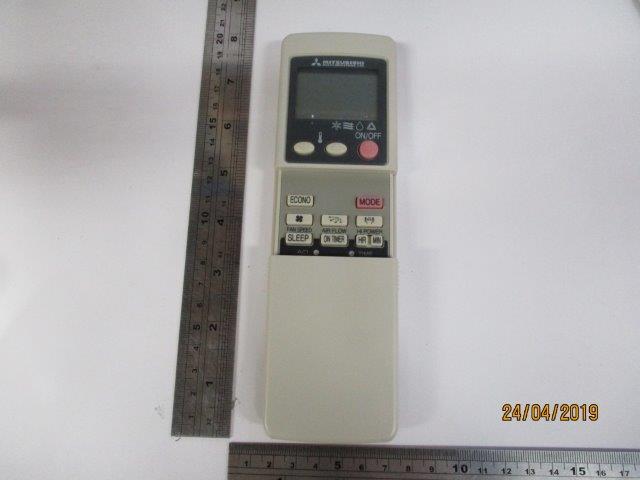

[17] In Stock

RKN502A500A

REMOTE CONTROL

Show Image

[18] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR THI-R Show Image

[19] Contact

RWA008A047D

PARTS,STANDARD

Contact

[20] Contact

RWA012A176

MANUAL,INSTRUCTION

Contact

[21] In Stock

RKN032A002A

PLATE REMOC

Show Image

[22] Contact

RSA549A005

BUTTERY

Contact

Substitute: RKH549A500B Notes: RSA549A001 ALSO SUB

[23] Contact

RKS129A213

PLATE

Contact

[24] Contact

RSA011F363B

LABEL,MODEL NAME

Contact

SKU: SRK501CENF-A HEAT EXCH. AND CONTROL Category: Uncategorised
