SRK458HENF-A HEAT EXCH. AND CONTROL

Name: SRK458HENF-A HEAT EXCH. AND CONTROL
SKU: SRK458HENF-A HEAT EXCH. AND CONTROL
Availability: InStock

SRK458HENF-A HEAT EXCH. AND CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

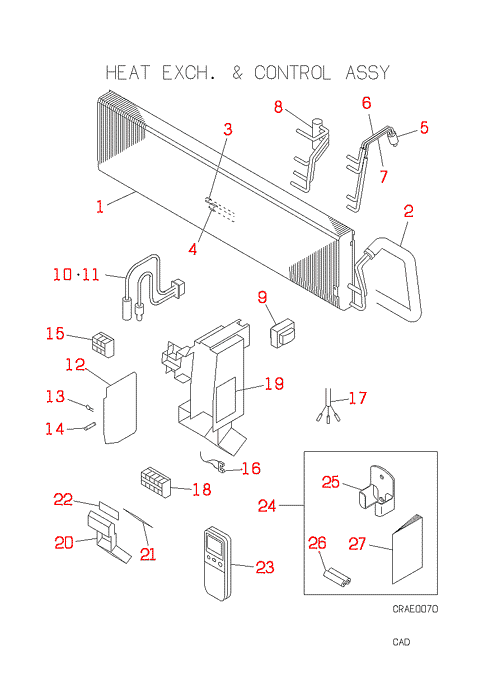

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact

RKM311A101A

HEAT,EX,AIR

Contact

[1-8] Contact

RKM301A101A

HEAT EXCHAN

Contact

[2-4] Contact

RKM321A107

PIPE ASSY

Contact

[3] Contact

SSA323F006

UNION

Contact

[4] Contact

SSA323F006B

UNION

Contact

[5] Contact

SSA315A021A

DISTRIBUTOR

Contact

[5-7] Contact

RKM315A102

DISTRI,ASSY

Contact

[6] Contact

RKM315B102

CAPILLARY

Contact

Notes: !D3.5XD5.0 L140

[7] Contact

RKM315B103

CAPILLARY

Contact

Notes: !D3.5XD5.0 L130

[8] Contact

RKM315D102

HEADER ASSY

Contact

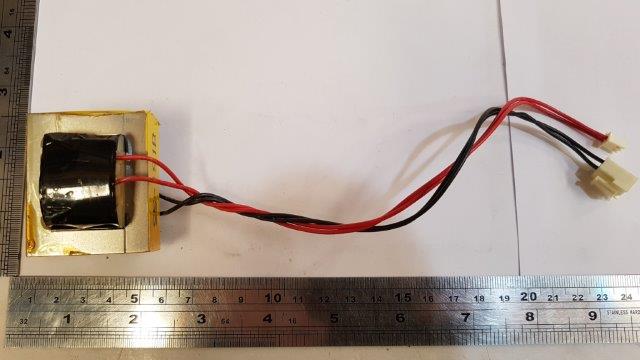

[9] In Stock

SSA554A191B

TRANSFORMER

Show Image

[10] In Stock

SSA551A163F

SENSOR

Notes: INCL SENSOR ROOM TEMP and HEAT EXCH, INCL.SENSOR (ROOM TEMP.& HEAT EXCH.) Show Image

[11] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR THI-R Show Image

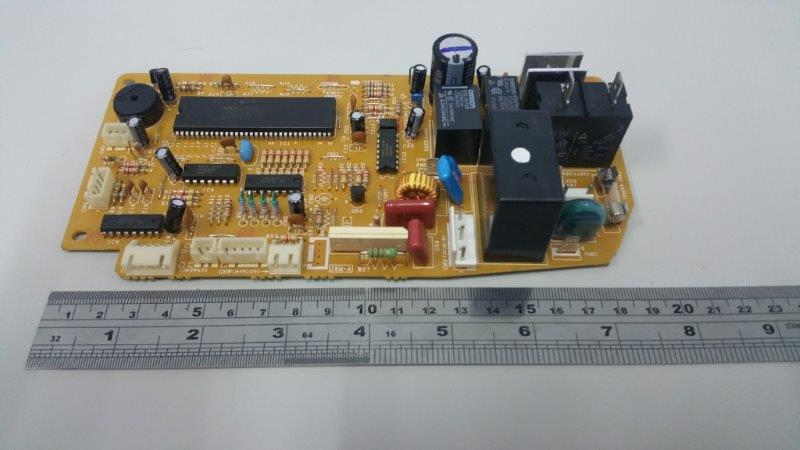

[12-14] Out of Stock

RKM505A230GB

PWB ASSY

Substitute: OUT OF PRODUCTION Show Image

[13] In Stock

SSA555B003A

VARISTOR

Show Image

[14] In Stock

SSA564A132

FUSE(CURRENT)

Notes: 3.15A Show Image

[15] Out of Stock

RSA561B001

BLOCK,TERMI

Substitute: SSA561B001 Notes: T1

[16] In Stock

SSA564A062

FUSE

Show Image

[17] Contact

RWA567A008A

HARNESS ASSY(POWER

Contact

[18] Contact

RSA561B674A

BLOCK,TERMINAL

Contact

[19] Contact

RWA011G028

LABEL,WIRING

Contact

[20-22] Out of Stock

RKM503A200L

DISPLAY ASY

[21] Out of Stock

RKM505A200D

PWB ASSY

Substitute: OUT OF PRODUCTION

[22] In Stock

RKM505A101B

PWB ASSY

Notes: OUT OF PRODUCTION - HAS NO RECEIVER OR DISPLAY LIGHT/S - BUTTON ONLY Show Image

[23] Out of Stock

RKN502A500

REMOCON

Substitute: OUT OF PRODUCTION Notes: OUT OF PRODUCTION

[24] Contact

RWA008A054

PARTS,STANDARD

Contact

[25] In Stock

RKN032A002A

PLATE REMOC

Show Image

[26] Contact

RSA549A001

BATTERY

Contact

Substitute: RKH549A500

[27] Out of Stock

RWA012A172

INSTRUCTION

[28] Contact

RSA011F300P

LABEL,MODEL NAME

Contact
