SRK388HENF-A HEAT EXCH. AND CONTROL

Name: SRK388HENF-A HEAT EXCH. AND CONTROL
SKU: SRK388HENF-A HEAT EXCH. AND CONTROL
Availability: InStock

SRK388HENF-A HEAT EXCH. AND CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

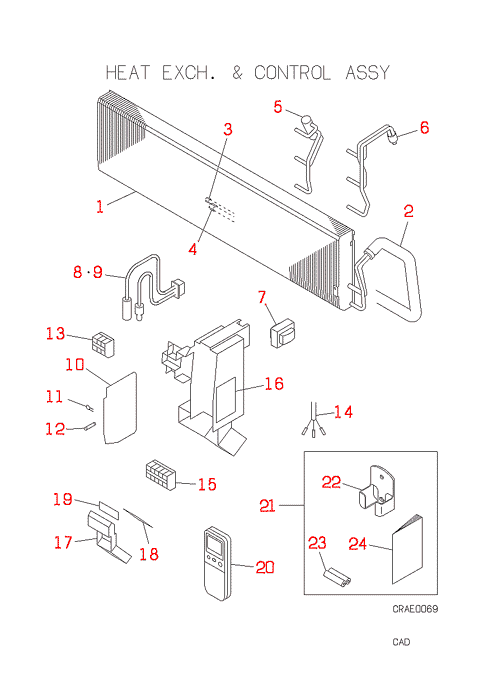

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact

RKM311A201J

HEAT,EX,AIR

Contact

[1-6] Contact

RKM301A201N

HEAT EXCHAN

Contact

[2-4] Contact

RKM321A215

PIPE ASSY

Contact

[3] Contact

SSA323F006

UNION

Contact

[4] Contact

SSA323F006B

UNION

Contact

[5] Contact

RKM315D200

HEADER ASSY

Contact

[6] Contact

RKM315A202A

DISTRIBUTOR

Contact

[7] In Stock

SSA554A191B

TRANSFORMER

Show Image

[8] In Stock

RKH551A511D

SENSOR ASSY

Notes: INCL.SENSOR(ROOM TEMP.& HEAT EXCH.), COIL SENSOR Show Image

[9] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR THI-R Show Image

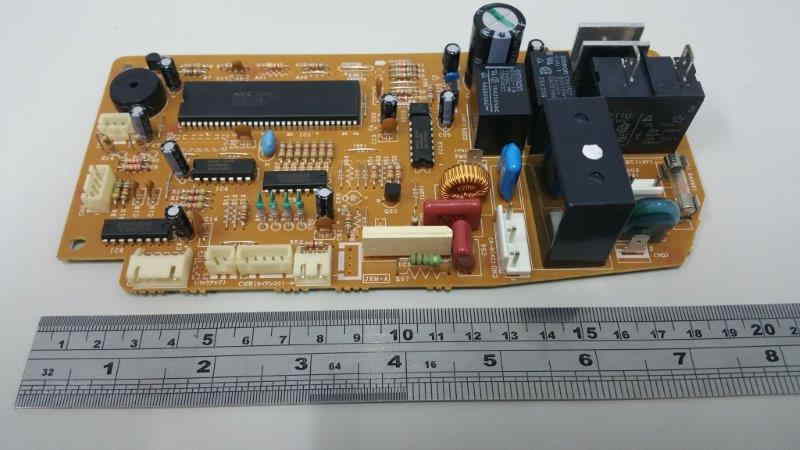

[10-12] In Stock

RKM505A230GA

PWB ASSY

Show Image

[11] In Stock

SSA555B003A

VARISTOR

Show Image

[12] In Stock

SSA564A132

FUSE(CURRENT)

Notes: 3.15A Show Image

[13] Out of Stock

RSA561B001

BLOCK,TERMI

Substitute: SSA561B001 Notes: T1

[14] Contact

RWA567A011

HARNESS ASSY(POWER

Contact

[15] Contact

SSA561B674A

BLOCK,TERMI

Contact

[16] Contact

RWA011G028

LABEL,WIRING

Contact

[17-19] Out of Stock

RKM503A200L

DISPLAY ASY

[18] Out of Stock

RKM505A200D

PWB ASSY

Substitute: OUT OF PRODUCTION

[19] In Stock

RKM505A101B

PWB ASSY

Notes: OUT OF PRODUCTION - HAS NO RECEIVER OR DISPLAY LIGHT/S - BUTTON ONLY Show Image

[20] Out of Stock

RKN502A500

REMOCON

Substitute: OUT OF PRODUCTION Notes: OUT OF PRODUCTION

[21] Contact

RWA008A054

PARTS,STANDARD

Contact

[22] In Stock

RKN032A002A

PLATE REMOC

Show Image

[23] Contact

RSA549A001

BATTERY

Contact

Substitute: RKH549A500

[24] Out of Stock

RWA012A172

INSTRUCTION

[25] Contact

RSA011F300N

LABEL,MODEL NAME

Contact

SKU: SRK388HENF-A HEAT EXCH. AND CONTROL Category: Uncategorised
