SRK28HCA-S PANEL AND FAN ASSY

Name: SRK28HCA-S PANEL AND FAN ASSY
SKU: SRK28HCA-S PANEL AND FAN ASSY
Availability: InStock

SRK28HCA-S PANEL AND FAN ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

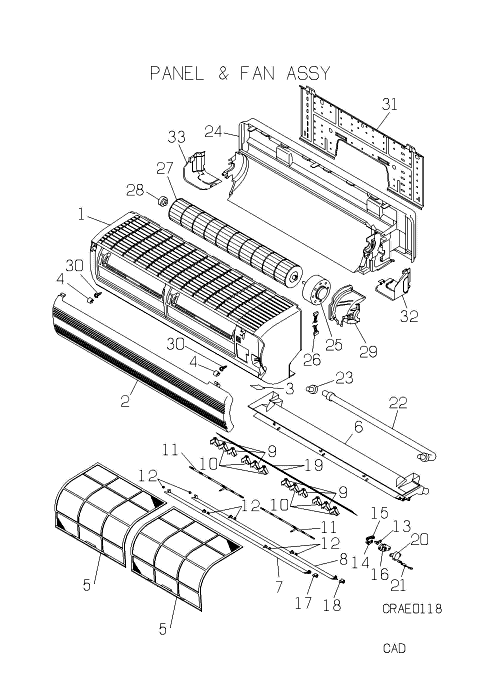

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Out of Stock

RKV122A001A

PANEL FRONT

[1-5] Out of Stock

RKV102A500

PANEL ASSY

[2] Contact

RKV435A501

GRILLE,AIR

Contact

[3] Contact

RKV133A500

PLATE,DISPL

Contact

[4] In Stock

RKV129A007

CAP

Show Image

[5] In Stock

RKV437A001

FILTER

Notes: 1pc ONLY

[6] In Stock

RKV435A003

GRILLE,AIR OUTLET

Notes: ***MUST INFORM CUSTOMER DIFFICULT INSTALLATION-DOES NOT COME WITH FOAM***FOAM NOT AVAILABLE TO PURCHASE SEPARATELY

[6-23] Out of Stock

RKV435A500

GRILLE ASSY

Substitute: OUT OF PRODUCTION

[7] In Stock

RKV436A001

FLAP,A

Notes: UPPER

[8] In Stock

RKV436A002

FLAP,B

Notes: LOWER

[9] Contact

RKV436A501

LOUVER

Contact

Notes: 1pc ONLY

[9-11] Contact

RKV436A500

LOUVER ASSY

Contact

[10] Contact

RKV436A501A

LOUVER

Contact

Notes: 1pc ONLY

[11] Contact

RKV129A003

PLATE,CONNECTING

Contact

[12] Out of Stock

RKR935C001B

COLLAR

Substitute: OUT OF PRODUCTION Notes: 1pc ONLY, ***SOLD INDIVIDUALLY***

[13] In Stock

RKV144A001

CRANK,A

Show Image

[14] In Stock

RKV144A002

CRANK,B

Notes: LENGTH 1.7CM Show Image

[15] In Stock

RKV144A003

LINK

Notes: LENGTH 3CM Show Image

[16] Contact

RKV129A005

BRACKET,MOT

Contact

[17] Out of Stock

RKV937C500

CLIP

Substitute: OUT OF PRODUCTION Show Image

[18] In Stock

RKV937C500A

CLIP

[19] Contact

RKV131A500

GUARD,FAN

Contact

[20] In Stock

SSA512T017

MOTOR,STEPPING

Notes: VERTICAL LOUVER MOTOR LEFT/RGHT AIR FLOW Show Image

[21] In Stock

RKS504A100F

HARNESS

Notes: FOR FLAP MOTOR Show Image

[22] In Stock

SSA423A114

HOSE,DRAIN

[23] In Stock

SSA326A043

PLUG

Notes: LENGTH 3.5CM Show Image

[24] Contact

RKV111A001

BASE ASSY

Contact

[25] Out of Stock

SSA511T286

MOTOR, AC

Notes: FOR IMPELLER Show Image

[26] Out of Stock

RKR504A016

HARNESS

Notes: FOR MOTOR,AC Show Image

[27] In Stock

SSA431G042C

IMPELLER

[28] In Stock

SSA923C136

BEARING, PLANE

Notes: END BEARING Show Image

[29] In Stock

RKV129A002

COVER,MOTOR

Show Image

[30] In Stock

SSA913A007A

SCREW,TAP

Notes: 4X14, 1pc ONLY/ LENGTH 2CM Show Image

[31] In Stock

RKV032A001

PLATE,INSTA

[32] In Stock

RKV132A001A

LID(R)

Notes: RIGHT LID Show Image

[33] In Stock

RKV132A002

LID,L

Notes: LEFT LID Show Image
