SRK28HCA-S HEAT EXCH. AND CONTROL

Name: SRK28HCA-S HEAT EXCH. AND CONTROL
SKU: SRK28HCA-S HEAT EXCH. AND CONTROL
Availability: InStock

SRK28HCA-S HEAT EXCH. AND CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

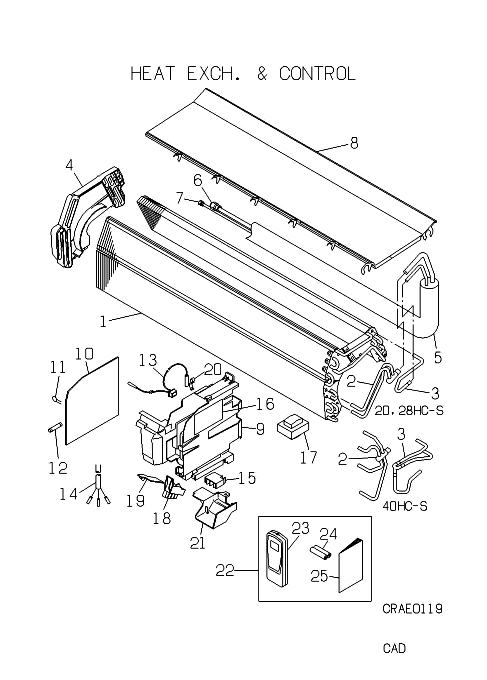

Check the parts position number [ ] matching with the drawing. Login to view prices.

[2] Contact

RKV315D500

HEADER ASSY

Contact

[3] Contact

RKV321A500

PIPE

Contact

[4] Contact

RKV129A001

BRACKET(L)

Contact

[5-7] Contact

RKV321A004A

PIPE ASSY

Contact

[6] Contact

SSA323F082

UNION

Contact

Notes: GAS

[7] Contact

SSA323F082A

UNION(SLD)

Contact

Notes: LIQ.

[8] Contact

RKV129A004

PLATE

Contact

[9] In Stock

RKV142A500

BOX,CONTROL

Show Image

[10-12] Out of Stock

RKV505A500A

PWB ASSY

Substitute: OUT OF PRODUCTION Notes: No subs 10/08/16-RM

[11] Contact

SSA555B041B

VARISTOR

Contact

Notes: Z

[12] In Stock

SSA564A132

FUSE(CURRENT)

Notes: 3.15A Show Image

[13] In Stock

SSA551A163F

SENSOR

Notes: INCL SENSOR ROOM TEMP and HEAT EXCH, INCL.SENSOR (ROOM TEMP.& HEAT EXCH.) Show Image

[14] In Stock

RKV504A500G

HARNESS ASSY

[15] In Stock

SSA561B702

BLOCK,TERMINAL

Notes: TB1 Show Image

[16] Contact

RKV011G500

LABEL,WIRING

Contact

[17] In Stock

SSA554A441

TRANSFORMER

Show Image

[18] Out of Stock

RKV129A006

HOLDER,DISP

Substitute: OUT OF PRODUCTION

[18-19] In Stock

RKV503A500ZA

DISPLAY ASSY

Show Image

[19] In Stock

RKV505A002C

PWB DISPLAY

Show Image

[20] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR THI-R Show Image

[21] In Stock

RKV142A501

COVER

Show Image

[22] Contact

RKV008A500

PARTS,STAND

Contact

[23] In Stock

RMA502A001F

REMOCON ASSY

Notes: RKR032A002 remote control holder Show Image

[24] Contact

RKH549A500B

BATTERY

Contact

[25] Contact

RKV012A501

MANUAL,INST

Contact

[26] Contact

RSA011F375N

LABEL,MODEL NAME

Contact

SKU: SRK28HCA-S HEAT EXCH. AND CONTROL Category: Uncategorised
