SRK25ZGA-S HEAT EXCH. AND CONTROL

Name: SRK25ZGA-S HEAT EXCH. AND CONTROL
SKU: SRK25ZGA-S HEAT EXCH. AND CONTROL
Availability: InStock

SRK25ZGA-S HEAT EXCH. AND CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

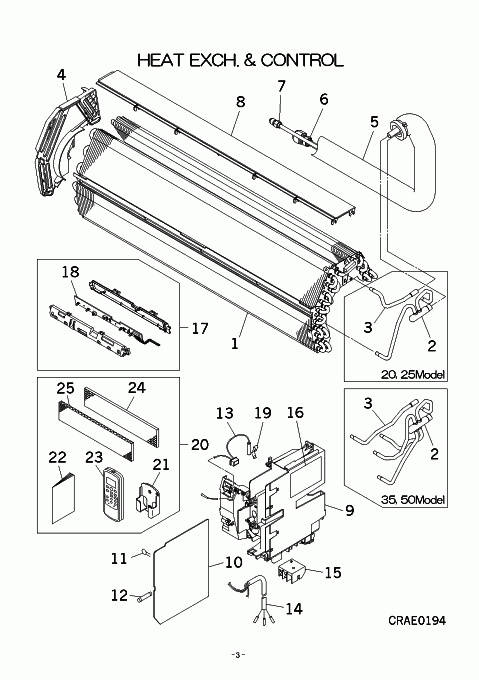

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-8] In Stock

RKX301A009

HEAT EXCH ASSY(AIR

[2] Contact

RKX315D006

HEADER ASSY

Contact

Notes: !

[3] Contact

RKX321A034

PIPE

Contact

Notes: !

[4] Contact

RKX129A016

BRACKET ASSY(L)

Contact

Notes: !

[5-7] In Stock

RKX321A001

PIPE ASSY

[6] Contact

SSA323F082

UNION

Contact

Notes: GAS

[7] Contact

SSA323F082A

UNION(SLD)

Contact

Notes: LIQ.

[8] Contact

RKX129A001

PLATE ASSY,BAFFLE

Contact

[9] In Stock

RKX142A001

BOX,CONTROL

Show Image

[10-12] Out of Stock

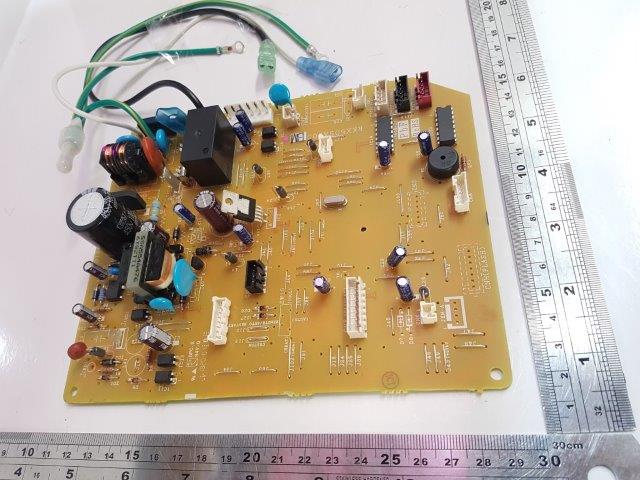

RKX505A500BM

PWB ASSY

Substitute: OUT OF PRODUCTION Notes: INDOOR MAIN PC BOARD Show Image

[11] In Stock

SSA555B050C

VARISTOR

Notes: Z1 Show Image

[12] In Stock

SSA564A132

FUSE(CURRENT)

Notes: 3.15A Show Image

[13] In Stock

SSA551A163L

SENSOR ASSY

Notes: SENSOR INCL.(ROOM TEMP.& HEAT EXCHANGE TEMP)/ LENGTH 40CM Show Image

[14] In Stock

RKV504A500G

HARNESS ASSY

[15] In Stock

SSA561B702B

BLOCK,TERMINAL

Notes: T2 Show Image

[16] Contact

RKX011G600

LABEL,WIRING

Contact

Notes: !

[17] In Stock

RKX503A001B

DISPLAY ASSY

Notes: COMES WITH RECEIVER BRD, HARNESS & CASING Show Image

[18] In Stock

RKX505A003B

PWB ASSY(DISPLAY)

Notes: COMES WITH HARNESS Show Image

[19] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR THI-R Show Image

[20] Contact

RKX008A005B

PARTS,STANDARD

Contact

Notes: !

[21] In Stock

RKN032A002B

HOLDER

Show Image

[22] Contact

RKX012A015

MANUAL,INSTRUCTION

Contact

[23] In Stock

RKX502A007C

REMOTE CONTROL

Notes: Holder RKN032A002B

[24] In Stock

RKT437A005

FILTER,CLEAN

Notes: 1pc ONLY, PHOTO-CATALYTIC / DEODORIZING FILTER - triangular honeycomb shape

[25] In Stock

RKT437A801D

FILTER,CLEAN(BIO)

Notes: 1pc ONLY, ALLERGEN FILTER. For ZT models the optional Photocatalytic filter is RKT437A005. Show Image

SKU: SRK25ZGA-S HEAT EXCH. AND CONTROL Category: Uncategorised
