SRK25GZ-L1 HEAT EXCH. AND CONTROL

Name: SRK25GZ-L1 HEAT EXCH. AND CONTROL
SKU: SRK25GZ-L1 HEAT EXCH. AND CONTROL
Availability: InStock

SRK25GZ-L1 HEAT EXCH. AND CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

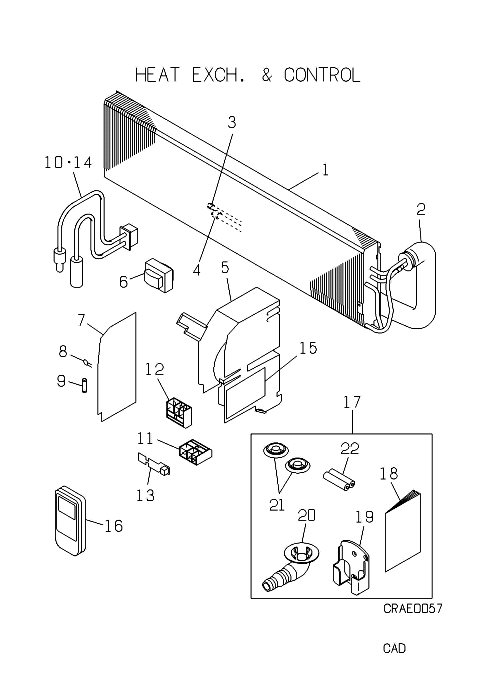

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact

RKS311A500B

HEAT EXCH

Contact

[1-4] Contact

RKS301A500A

HEAT EXCH

Contact

[2-4] Contact

RKS321A500

P I P E

Contact

[3] Contact

SSA323F006

UNION

Contact

[4] Contact

SSA323F006A

UNION

Contact

[5] Contact

RKS142A500

BOX CONT

Contact

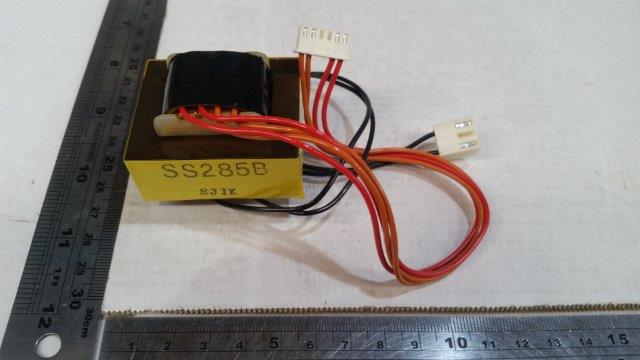

[6] In Stock

SSA554A285B

TRANSFORMER

Show Image

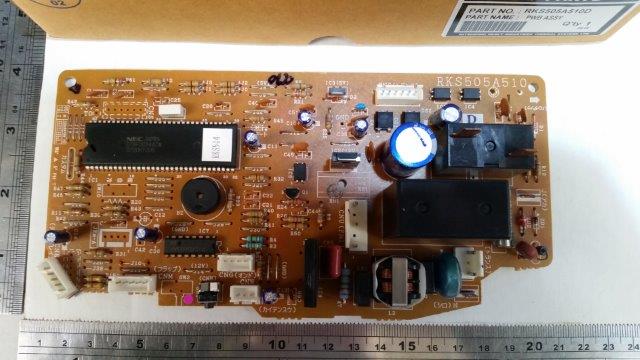

[7-9] Out of Stock

RKS505A510D

PWB ASSY

Notes: OUT OF PRODUCTION Show Image

[8] In Stock

SSA555B003A

VARISTOR

Show Image

[9] In Stock

SSA564A132

FUSE(CURRENT)

Notes: 3.15A Show Image

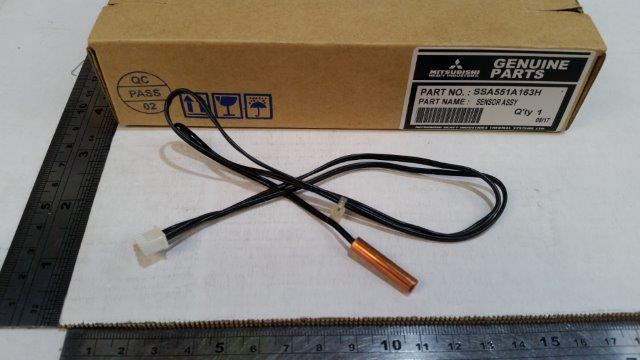

[10] In Stock

SSA551A163H

SENSOR

Notes: INCL.SENSOR(ROOM TEMP.& HEAT EXCH.), INCL.SENSOR (ROOM TEMP.& HEAT EXCH.) Show Image

[11] In Stock

SSA561B665

BLOCK TERMI

Notes: T1 Show Image

[12] Contact

SSA561B211B

BLOCK,TERMI

Contact

Substitute: SSA561B665A Notes: TB2

[13] Contact

RKS505A511

PWB DISPLAY

Contact

Substitute: OUT OF PRODUCTION Notes: OUT OF PRODUCTION - PLUGS STRAIGHT INTO MAIN PCB - NO HARNESS

[14] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR THI-R Show Image

[15] Contact

RKS011G500B

LABEL,WIRING

Contact

[16] In Stock

RKS502A503

REMOTE CONTROL

Show Image

[17] Out of Stock

RKS008A500T

PARTS SET

[18] Contact

RWA012A177

MANUAL,INSTRUCTION

Contact

[19] In Stock

RKN032A002A

PLATE REMOC

Show Image

[20] In Stock

RPC008A601

DRAIN KIT

Notes: 1x ELBOW, 2x GROMMETS PER DRAIN KIT

[21] In Stock

SSA947A089

GROMMET

Notes: D20.1, SSA422A024 ELBOW Show Image

[22] Contact

RKH549A500B

BATTERY

Contact

[23] Contact

RSA011F281AK

LABEL,MODEL NAME

Contact

SKU: SRK25GZ-L1 HEAT EXCH. AND CONTROL Category: Uncategorised
