SRK20ZSXA-W/A HEAT EXCH. AND CONTROL

Name: SRK20ZSXA-W/A HEAT EXCH. AND CONTROL
SKU: SRK20ZSXA-W/A HEAT EXCH. AND CONTROL
Availability: InStock

SRK20ZSXA-W/A HEAT EXCH. AND CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

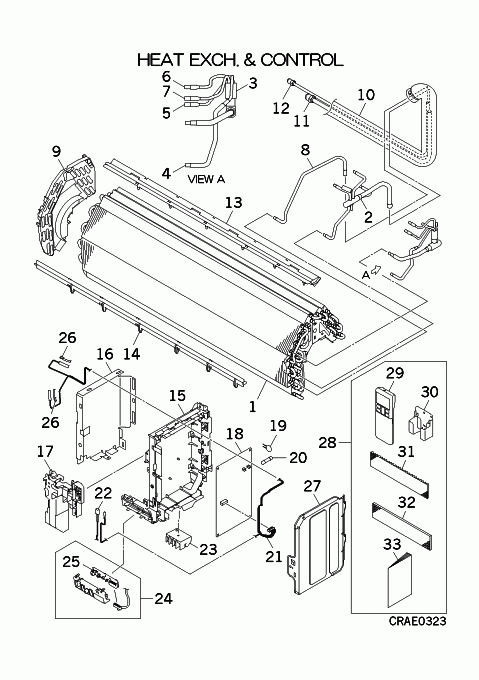

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-14] Out of Stock

RLF301A200A

HEAT EXCH ASSY

[2] Contact

RLF315D200

HEADER ASSY

Contact

Notes: !

[3] Contact

RKX315A003

DISTRIBUTOR

Contact

Notes: !

[3-7] Contact

RLF315A200

DISTRIBUTOR ASSY

Contact

[4] Contact

RLF321A037

PIPE ASSY

Contact

Notes: !D2.8XD4.0 L100, f2.8”f4.0 L100

[5] Contact

RLF315B005

CAPILLARY

Contact

Notes: !D2.8XD4.0 L100, f2.8”f4.0 L100

[6] Contact

RLF315B006

CAPILLARY

Contact

Notes: !D2.8XD4.0 L100, f2.8”f4.0 L100

[7] Contact

RLF315B007

CAPILLARY

Contact

Notes: !D2.8XD4.0 L100, f2.8”f4.0 L100

[8] Contact

RLF321A030

PIPE

Contact

[9] Contact

RLF129A200

BRACKET(L)

Contact

[10-12] Contact

RLF321A025

PIPE ASSY

Contact

[11] In Stock

SSA323F088

UNION(SLD)

Notes: FOR GAS, LENGTH 2.6CM Show Image

[12] In Stock

SSA323F088A

UNION(SLD)

Notes: FOR LIQ., FOR LIQ.‚ / LENGTH 2.3CM Show Image

[13] Contact

RLF129A201

PLATE,BAFFLE

Contact

[14] Contact

RLF129A202

SEAL

Contact

Show Image

[15] In Stock

RLF142A202

BOX,CONTROL

[15-16] In Stock

RLF142A201

BOX ASSY,CONTROL

Notes: !

[16] Contact

RLF132A200

COVER,CONTROL

Contact

[17] Contact

RLF129A211

COVER,BEND

Contact

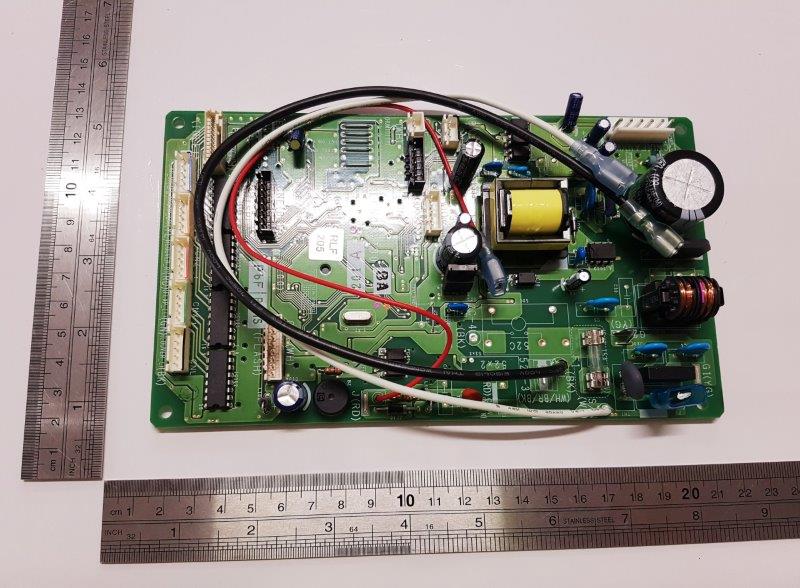

[18-20] In Stock

RLF505A200BA

PWB ASSY

Show Image

[19] In Stock

SSA555B050C

VARISTOR

Notes: Z1 Show Image

[20] In Stock

SSA564A132

FUSE(CURRENT)

Notes: F1 3.15A, 3.15A Show Image

[21] In Stock

SSA551A223R

SENSOR ASSY

Notes: INCL.SENSOR(ROOM TEMP.& HEAT EXCH.) Show Image

[22] Contact

SSA551B017F

SENSOR(HUMIDITY)

Contact

[23] In Stock

SSA561B702B

BLOCK,TERMINAL

Notes: TB1, T2 Show Image

[24] In Stock

RLF503A200

DISPLAY ASSY

Show Image

[25] In Stock

RLF505A202

PWB ASSY(DISPLAY)

Show Image

[26] In Stock

PSA941F001

SPRING LEAF

Notes: 1pc ONLY Show Image

[27] In Stock

RLF142A200

LID,CONTROL

[28] Contact

RLF008A201V

PARTS,STANDARD

Contact

Notes: !

[29] In Stock

RLA502A704

CONTROL ASSY,REMOT

Notes: remote holder = RLA032A700

[30] In Stock

RLA032A700

HOLDER(REMO-CON)

Notes: REMOTE CONTROL HOLDER/CRADLE Show Image

[31] In Stock

RKT437A801D

FILTER,CLEAN(BIO)

Notes: ALLERGEN FILTER. For ZT models the optional Photocatalytic filter is RKT437A005. Show Image

[32] In Stock

RKT437A005

FILTER,CLEAN

Notes: PHOTO-CATALYTIC / DEODORIZING FILTER - triangular honeycomb shape

[33] Contact

RLF012A213A

MANUAL,INSTRUCTION

Contact

[34] Contact

RLF011F201S

LABEL,MODEL NAME

Contact

Notes: !
