SRK12CCA PANEL AND FAN ASSY

Name: SRK12CCA PANEL AND FAN ASSY
SKU: SRK12CCA PANEL AND FAN ASSY
Availability: InStock

SRK12CCA PANEL AND FAN ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

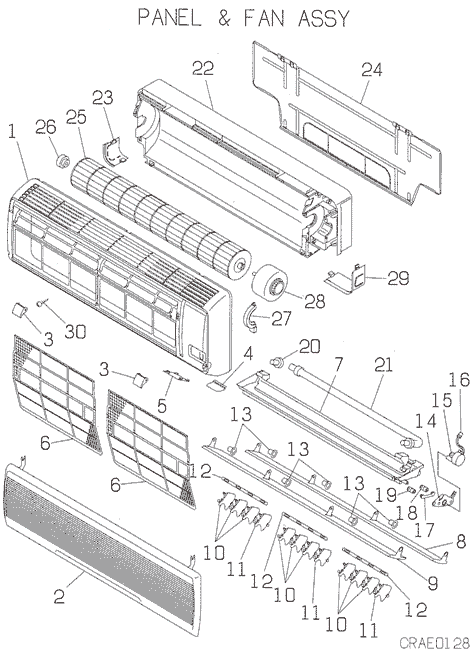

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact

RKR122A600

FRONT PANEL

Contact

[1-6] Out of Stock

RWA102A008A

FRONT PANEL

[2] In Stock

RKR435A601

GRILLE ASSY

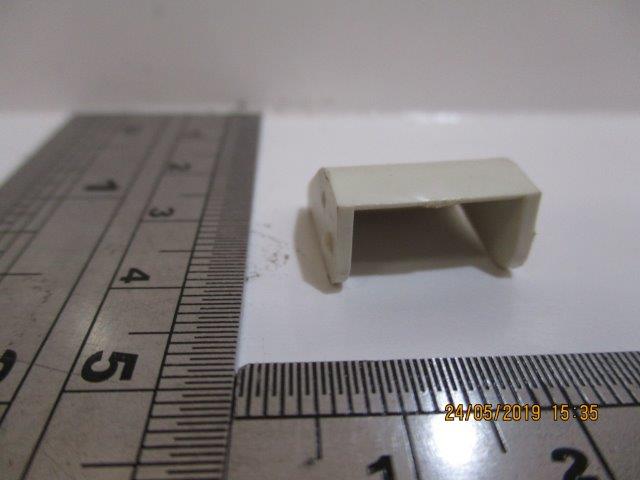

[3] In Stock

RKR129A604

CAP

Show Image

[4] Contact

RKR129A600

PLATE

Contact

[5] Contact

RKR133A600A

PLATE ASSY

Contact

[6] Out of Stock

RKR437A001

AIR FILTER

Substitute: OUT OF PRODUCTION Notes: 1pc ONLY, 2 PER UNIT - SOLD INDIVIDAULLY

[7] Contact

RKR435A003C

GRILLE,AIR OUTLET

Contact

[7-21] In Stock

RWA435A003

GRILLE OUT

[8] Contact

RKR436A005A

FLAP,A

Contact

Notes: LOWER

[9] Contact

RKR436A006A

FLAP,B

Contact

Notes: UPPER

[10] Contact

RKR436A101G

LOUVER

Contact

Notes: 1pc ONLY

[10-12] Contact

RWA436A002

LOUVER ASSY

Contact

[11] Contact

RKR436A101H

LOUVER

Contact

Notes: 1pc ONLY

[12] Contact

RKR129A100C

PLATE,CONNECTING

Contact

[13] In Stock

RKR935C001

COLLAR

Notes: 1pc ONLY, ***SOLD INDIVIDUALLY*** Show Image

[14] In Stock

RKR129A009

BRACKET MOT

Show Image

[14-19] In Stock

RKR144A001

LINK ASSY

[15] In Stock

SSA512T017

MOTOR,STEPPING

Notes: VERTICAL LOUVER MOTOR LEFT/RGHT AIR FLOW Show Image

[16] In Stock

RKR504A003

HARNESS

[17] Out of Stock

RKR144A002

LINK

[18] Out of Stock

RKR144A003

CLANK

[19] Out of Stock

RKR144A004

CLANK

[20] In Stock

SSA326A038

PLUG

Show Image

[21] In Stock

SSA423A090

DRAIN HOSE

[22-23] Contact

RWA111A001

BASE ASSY

Contact

[23] Contact

RKR132A004A

LID(L)

Contact

[24] In Stock

RKR032A001

PLATE

[25] In Stock

SSA431G039B

IMPELLER

Notes: OUT OF PRODUCTION

[26] In Stock

SSA923C136

BEARING, PLANE

Notes: END BEARING Show Image

[27] In Stock

RKR129A012

BRACKET MOT

[28] In Stock

SSA511J217

MOTOR AC

Notes: FOR IMPELLER

[29] Out of Stock

RKR132A003B

LID

Substitute: OUT OF PRODUCTION

[30] In Stock

SSA913A007

SCREW

Notes: 4X12, 1pc ONLY Show Image
