SRK100ZR-W/B PANEL AND FAN ASSY

Name: SRK100ZR-W/B PANEL AND FAN ASSY
SKU: SRK100ZR-W/B PANEL AND FAN ASSY
Availability: InStock

SRK100ZR-W/B PANEL AND FAN ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

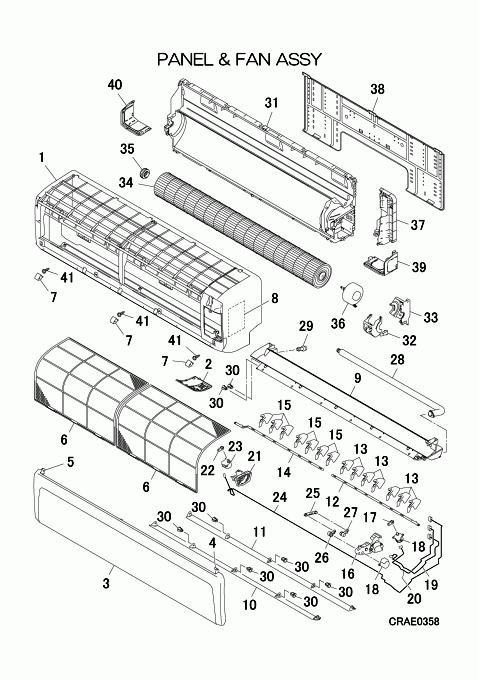

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

RLD122A001B

PANEL,FRONT

Notes: !

[1-8] In Stock

RLD102A001W

PANEL ASSY,FRONT

[2] In Stock

RLD133A001G

PLATE ASSY ORNAMENT

Show Image

[3-5] In Stock

RLD435A003L

PANEL ASSY AIR INLET

Notes: AIR INLET PANEL / FILTER COVER. for ARM INLET/HINGE/CLIPS use - Left = RLD129A009 / Right = RLD129A008

[4] In Stock

RLD129A008

ARM, INLET (R.)

Notes: RIGHT SIDE WHEN FACING/LOOKING AT UNIT - FOR left SIDE SEE RLD129A009

[5] In Stock

RLD129A009

ARM, INLET (L)

Notes: LEFT SIDE WHEN FACING/LOOKING AT UNIT - FOR RIGHT SIDE SEE RLD129A008

[6] In Stock

RLD437A001

FILTER,AIR

Notes: W507.5XH401.5( 2), RETURN AIR / DUST FILTER - THIS MODEL HAS 2 - SOLD INDIVIDUALLY

[7] Out of Stock

RLD129A007

CAP

Show Image

[8] In Stock

RLD011G001

LABEL,WIRING

Notes: !

[9] In Stock

RLD435A001C

GRILLE ASSY, AIR OUT

Notes: !, INCLUDES DRIP/CONDENSATE TRAY ALL LOUVERS, LOUVER HARNESSS AND LOUVER MOTORS

[9-30] In Stock

RLD435A001C

GRILLE ASSY, AIR OUT

Notes: INCLUDES DRIP/CONDENSATE TRAY ALL LOUVERS, LOUVER HARNESSS AND LOUVER MOTORS

[10] In Stock

RLD436A005B

FLAP(U)

Notes: Upper

[11] In Stock

RLD436A006C

FLAP(L)

Notes: LOWER HORIZONTAL FLAP

[12] Contact

RLD129A010

PLATE,CONNECTING(R)

Contact

Notes: !

[12-13] In Stock

RLD436A003

LOUVER ASSY (R )

Notes: INCLUDES 7x LOUVER BLADES AND A CONNECTING PLATE - RIGHT SIDE/ LENGTH 56CM Show Image

[13] In Stock

RLD436A007

LOUVER

Notes: !, SOLD INDIVIDUALLY Show Image

[14] Contact

RLD129A011

PLATE,CONNECTING(L)

Contact

Notes: !

[14-15] In Stock

RLD436A004

LOUVER ASSY(L)

Notes: INCLUDES 7x LOUVER BLADES AND A CONNECTING PLATE - LEFT SIDE

[15] In Stock

RLD436A007

LOUVER

Notes: !, SOLD INDIVIDUALLY Show Image

[16] In Stock

RLD129A014A

BRACKET,MOTOR(R)

Notes: !

[16-21] Out of Stock

RLD129A012A

BRACKET ASSY(R)

Show Image

[17] In Stock

RLB144A005

CRANK(C)

Notes: !, LENGTH 2CM Show Image

[18] In Stock

SSA512T158

MOTOR STEPPING

Notes: FOR FLAP,LOUVER(RIGHT) Show Image

[19] In Stock

RSA504A031

HARNESS ASSY

Notes: FOR FLAP MOTOR, WIRING HARNESS FOR HORIZONTAL UP/DOWN STEPPING MOTOR

[20] In Stock

RSA504A031A

HARNESS ASSY

Notes: FOR LOUVER MOTOR(RIGHT), FOR RIGHT LOUVER MOTOR(RIGHT) Show Image

[21] In Stock

RLD129A015

BRACKET,MOTOR(L)

Notes: ! Show Image

[21-24] In Stock

RLD129A013

BRACKET ASSY(L)

Notes: INCLUDES PLASTIC HOUSING, CRANK & LOUVER MOTOR Show Image

[22] In Stock

RLB144A005

CRANK(C)

Notes: !, LENGTH 2CM Show Image

[23] In Stock

SSA512T158

MOTOR STEPPING

Notes: FOR LOUVER(LEFT) Show Image

[24] In Stock

RSA504A031C

HARNESS ASSY

Notes: FOR LOUVER MOTOR(LEFT), WIRING HARNESS FOR LEFT SIDE LOUVER MOTOR Show Image

[25] In Stock

RLD144A002

LINK

Notes: !, LENGTH 5CM Show Image

[25-27] In Stock

RLD144A001A

LINK ASSY

Notes: LENGTH 7.5CM Show Image

[26] In Stock

RLD144A003

CRANK(U)

Notes: ! Show Image

[27] In Stock

RLD144A004A

CRANK(L)

Notes: ! Show Image

[28] Contact

SSA423A114A

HOSE,DRAIN

Contact

[29] In Stock

SSA326A047

PLUG

Notes: !, Plug for condensate/drain tray.

[30] In Stock

RLD129A021

SHAFT

Notes: secures horizontal up/down flaps onto indoor head unit - SOLD INDIVIDUALLY Show Image

[31] In Stock

RLD111A001C

BASE ASSY

[32] Out of Stock

RLD129A001

CASE,MOTOR(U)

[33] In Stock

RLD129A018

CASE ASSY(L)

[34] In Stock

SSA431G052

IMPELLER

Notes: FAN BARREL / FAN SCROLL

[35] In Stock

SSA923C136

BEARING, PLANE

Notes: END BEARING Show Image

[36] In Stock

SSA512T099A

MOTOR,DC

Notes: FOR IMPELLER, INDOOR FAN MOTOR-INCLUDES WIRING HARNESS Show Image

[37] In Stock

RLD116A001B

BRACKET,CONTROL

[38] In Stock

RLD032A001

PLATE,INSTALLATION

[39] In Stock

RLD132A001B

LID (R)

Notes: RIGHT SIDE LID Show Image

[40] In Stock

RLD132A002B

LID(L)

Notes: LEFT SIDE LID Show Image

[41] In Stock

SSA913A007

SCREW

Notes: 4X12, 1pc ONLY Show Image
