SRF50ZJX-S1 CONTROL AND PARTS SET

Name: SRF50ZJX-S1 CONTROL AND PARTS SET
SKU: SRF50ZJX-S1 CONTROL AND PARTS SET
Availability: InStock

SRF50ZJX-S1 CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

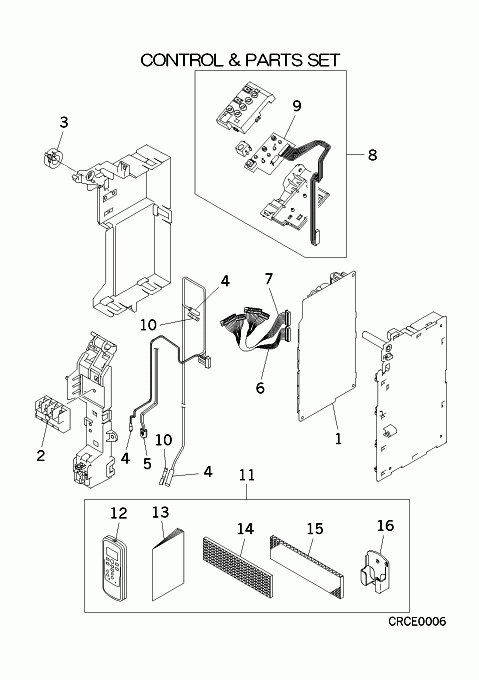

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

RKY505A001BL

PWB ASSY

[1-7] Contact

RFB501A002G

CONTROL UNIT

Contact

[2] In Stock

SSA561B702B

BLOCK,TERMINAL

Notes: T2 Show Image

[3] In Stock

SSA554D183

KILLER,NOISE

Show Image

[4] In Stock

SSA551A223B

SENSOR ASSY

Notes: INCL.SENSOR(ROOM TEMP.& HEAT EXCH.1,2) Show Image

[5] In Stock

SSA551B017B

SENSOR(HUMIDITY)

Notes: HS, LENGTH 52.5CM Show Image

[6] Contact

RFB504A003

HARNESS ASSY(DAMP)

Contact

[7] In Stock

RFB504A004

HARNESS ASSY(FLAP)

Show Image

[8] In Stock

RFB503A001

DISPLAY ASSY

[9] In Stock

RFB505A001

PWB ASSY(DISPLAY)

Show Image

[10] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR SENSOR Show Image

[11] Contact

RFB008A001B

PARTS,STANDARD

Contact

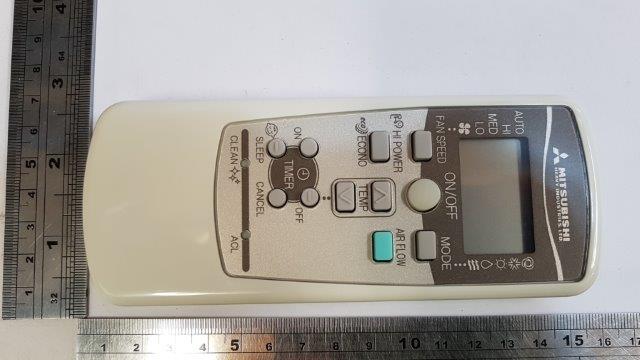

[12] In Stock

RKX502A001K

CONTROL,REMOTE

Show Image

[13] Contact

RFB012A004

MANUAL,INSTRUCTION

Contact

[14] In Stock

RKT437A005

FILTER,CLEAN

Notes: 1pc ONLY, PHOTO-CATALYTIC / DEODORIZING FILTER - triangular honeycomb shape

[15] In Stock

RKT437A801D

FILTER,CLEAN(BIO)

Notes: 1pc ONLY, ALLERGEN FILTER. For ZT models the optional Photocatalytic filter is RKT437A005. Show Image

[16] In Stock

RKN032A002B

HOLDER

Show Image

[17] Contact

RFB011F001G

LABEL,MODEL NAME

Contact
