SRF35ZS-W PANEL ASSY

Name: SRF35ZS-W PANEL ASSY
SKU: SRF35ZS-W PANEL ASSY
Availability: InStock

SRF35ZS-W PANEL ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

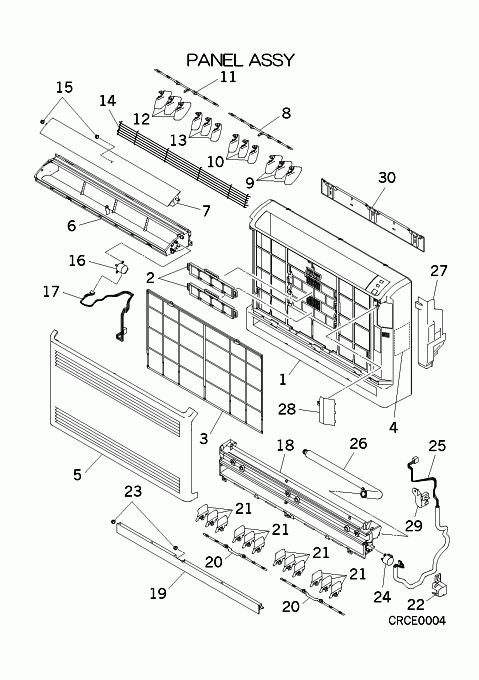

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact

RFB102A002B

PANEL ASSY,FRONT

Contact

[1-4] In Stock

RFB102A001B

PANEL ASSY,FRONT

[2] In Stock

RFB129A011

HOLDER,FILTER

Show Image

[3] In Stock

RFB437A001

FILTER,AIR

Notes: W699XH413( 2), W699XH413(T2)

[4] Contact

RFB011G001

LABEL,WIRING

Contact

Notes: !

[5] In Stock

RFB435A005D

PANEL ASSY,AIR IN

[6] In Stock

RFB435A007

GRILLE ASSY,OUT(U)

[7] In Stock

RFB436A001A

FLAP(UPPER)

[8] In Stock

RFB129A006

PLATE,CONNECTING(U

Notes: !

[8-10] In Stock

RFB436A003

LOUVER ASSY(R)

Notes: RIGHT

[9] In Stock

RFB436A006

LOUVER(UPPER,A)

Notes: !

[10] In Stock

RFB436A007

LOUVER(UPPER,B)

Notes: !

[11] In Stock

RFB129A006

PLATE,CONNECTING(U

Notes: !

[11-13] In Stock

RFB436A004

LOUVER ASSY(L)

Notes: LEFT Show Image

[12] In Stock

RFB436A006

LOUVER(UPPER,A)

Notes: !

[13] In Stock

RFB436A007

LOUVER(UPPER,B)

Notes: !

[14] In Stock

RFB131A001

GUARD,FAN

[15] Out of Stock

RKW935C200

COLLAR

Notes: ***SOLD INDIVIDUALLY***

[16] In Stock

SSA512T158

MOTOR STEPPING

Notes: FOR FLAP(UPPER) Show Image

[17] In Stock

RFB504A001

HARNESS ASSY

Notes: FOR MOTOR,FLAP(UPPER) Show Image

[18] In Stock

RFB435A008

GRILLE ASSY,OUT(L)

[19] Contact

RFB436A002B

FLAP(LOWER)

Contact

[20] Contact

RFB129A007

PLATE,CONNECTING(L

Contact

Notes: !

[20-21] In Stock

RFB436A005

LOUVER ASSY(LOWER)

Notes: 6 LOUVER FINS AND CONNECTING ROD Show Image

[21] Contact

RFB436A008

LOUVER(LOWER)

Contact

Notes: !

[22] Contact

RFB129A008

COVER,MOTOR(B)

Contact

[23] Out of Stock

RKW935C200

COLLAR

Notes: ***SOLD INDIVIDUALLY***

[24] In Stock

SSA512T158

MOTOR STEPPING

Notes: FOR FLAP(LOWER) Show Image

[25] In Stock

RFB504A001A

HARNESS ASSY

Notes: FOR MOTOR,FLAP(LOWER) Show Image

[26] In Stock

SSA423A114

HOSE,DRAIN

[27] Contact

RFB129A005B

COVER(PIPE)

Contact

[28] In Stock

RFB132A002A

LID (TERMINAL)

Notes: LENGTH 13.5CM Show Image

[29] Contact

RFB937A001B

CLAMP

Contact

[30] In Stock

RFB032A002

PLATE,INST(B)

SKU: SRF35ZS-W PANEL ASSY Category: Uncategorised
