SRC63ZEA-S HEAT EXCH. AND CONTROL

Name: SRC63ZEA-S HEAT EXCH. AND CONTROL
SKU: SRC63ZEA-S HEAT EXCH. AND CONTROL
Availability: InStock

SRC63ZEA-S HEAT EXCH. AND CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

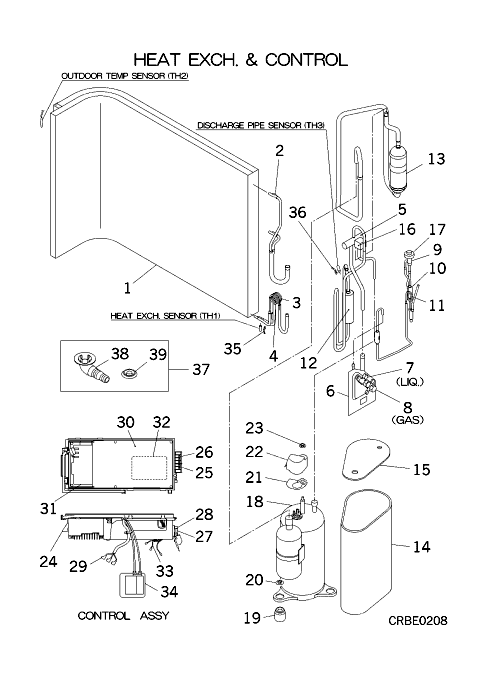

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-4] In Stock

RCR301A001

HEAT EXCH AIR

Notes: Condenser heat exchanger coil assembly

[2] Contact

RCR321A046

PIPE ASSY

Contact

Notes: !

[3] Contact

RCR315B008

CAPILLARY

Contact

Notes: !D2.8XD4.0 L350

[3-4] Contact

RCR321A056

PIPE ASSY

Contact

Notes: !

[4] Contact

RCR315B009

CAPILLARY

Contact

Notes: !D2.8XD4.0 L500

[5] In Stock

SSA382C080

VALVE,S(4WAY)

Notes: 20S, 20S BODY Show Image

[6] Contact

RCR116A003A

BRACKET(VALVE)

Contact

[7] In Stock

RCR381A003B

VALVE,SERVICE(1/4")

Notes: LIQ., LIQUID LINE SERVICE VALVE - 1/4' - LIQ. Show Image

[8] In Stock

RCR381A004

VALVE,SERVICE(5/8)

Notes: GAS, 5/8" GAS (SUCTION)

[9] Out of Stock

SSA387F047

VALVE EXP

Notes: EEVH or SM, EEV - VALVE BODY Show Image

[9-11] In Stock

RCR304A008

PIPING ASSY

Show Image

[10] In Stock

SSA357A005A

STRAINER

Show Image

[11] In Stock

RCP315B002

CAPILLARY,SUB

Notes: !D2.6XD4.0 L300, !D2.6XD4.0 L300‚ / LENGTH 8.5CM Show Image

[12] Out of Stock

PCA325A007

PIPE SHELL

[13] In Stock

AHT351A001

ACCUMULATOR

Show Image

[14] In Stock

RCR154D004

INSULATION,COMP

[15] In Stock

RPC154D858

INSULATION,COMP(B)

Notes: UPPER Show Image

[16] In Stock

RPC382F700B

COIL ASSY,S

Notes: FOR 20S Show Image

[17] In Stock

SSA382F210L

COIL,SOLENOID

Notes: FOR EEV, SOLENOID COIL FOR EEV (ELECTRONIC EXPANSION VALVE)

[18] In Stock

PCA201A048C

COMPRESSOR

Notes: TNB220FLBMT1, ***COMPRESSORS CANNOT BE RETURNED***

[19] Contact

PCA941C011

CUSHION RU

Contact

[20] In Stock

SSA914C013A

NUT,FLANGE

Notes: 1pc Show Image

[21] In Stock

PCA932C005A

GASKET COVER

Show Image

[22] Out of Stock

PCA947K005

COVER TERM

Substitute: OUT OF PRODUCTION Show Image

[23] Contact

PCA914C001

NUT FLANG

Contact

Notes: 1pc

[24] In Stock

RPC142A853

BOX,CONTROL(A)

Notes: BLACK PLASTIC FRAME

[25] In Stock

SSA561B665

BLOCK TERMI

Notes: T1 Show Image

[26] In Stock

SSA561B702B

BLOCK,TERMINAL

Notes: T2 Show Image

[27] In Stock

SSA564A106B

FUSE(CURREN

Notes: F 20A, 20Amps

[28] In Stock

SSA564B044

HOLDER, FUSE

Show Image

[29] In Stock

RCR504A009

WIRING ASSY

Notes: FOR COMP. Show Image

[30] Out of Stock

RCR505A001

PWB ASSY(MAIN)

Substitute: OUT OF PRODUCTION Notes: PWB1, OUT OF PRODUCTION - PWB1, RUNS FAN MOTOR Show Image

[31] Out of Stock

RCR505A002

PWB ASSY (POWER)

Substitute: OUT OF PRODUCTION Notes: PWB2, OUT OF PRODUCTION-PWB2 POWER (INVERTER)- PLUG INTO COMPRESSOR Show Image

[32] In Stock

RPC505A852B

PWB ASSY(CAPACITOR)

Notes: PWB3, PWB3 CAPACITOR Show Image

[33] In Stock

SSA551A228

SENSOR ASSY

Notes: TH1,TH2,TH3, TH1,TH2,TH3 - HAS 3 SENSORS Show Image

[34] In Stock

SSA554B079

REACTOR

Show Image

[35] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR THI-R Show Image

[36] In Stock

RCJ941F001

SPRING

Notes: LENGTH 2.5CM Show Image

[37] In Stock

RPC008A601

DRAIN KIT

Notes: 1x ELBOW, 2x GROMMETS PER DRAIN KIT

[38] In Stock

RPC008A601

DRAIN KIT

Notes: 1x ELBOW, 2x GROMMETS PER DRAIN KIT

[39] In Stock

SSA947A089

GROMMET

Notes: D20.1, SSA422A024 ELBOW Show Image

[40] Contact

RCR011F001

LABEL,MODEL NAME

Contact
