SRC56HEA-S HEAT EXCH. AND CONTROL

Name: SRC56HEA-S HEAT EXCH. AND CONTROL
SKU: SRC56HEA-S HEAT EXCH. AND CONTROL
Availability: InStock

SRC56HEA-S HEAT EXCH. AND CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

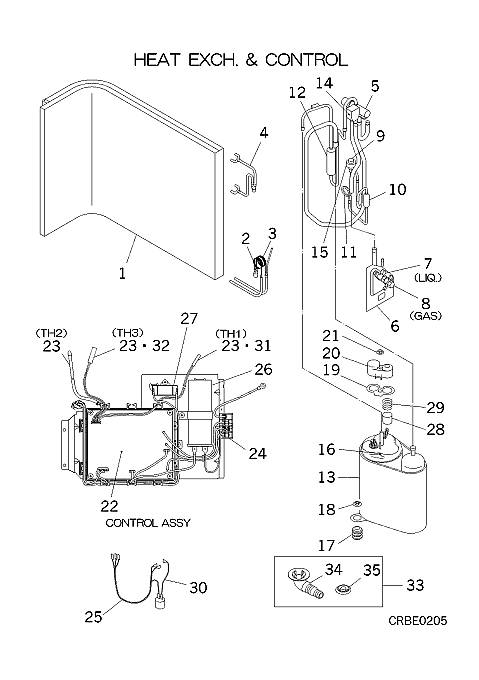

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-4] Out of Stock

RWC301A023

HEAT EXCH A

[2] Contact

RWC315B097

CAPILLARY

Contact

Notes: !D2.6XD4.0 L500

[2-3] Contact

RWC321A426

PIPE ASSY

Contact

[3] Contact

RWC315B097A

CAPILLARY

Contact

Notes: !D2.6XD4.0 L500

[4] Contact

RWC321A427

PIPING ASSY

Contact

[5] In Stock

SSA382C080

VALVE,S(4WAY)

Notes: 20S, 20S BODY Show Image

[6] Contact

RCK116A002

B/K(VALVE)

Contact

[7] In Stock

RCP381A001

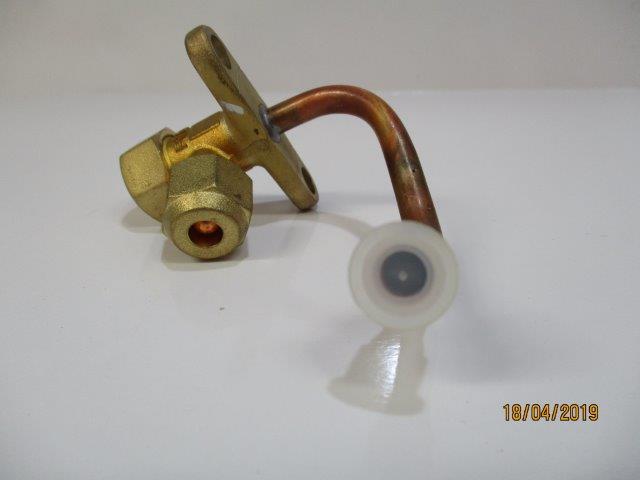

SERVICE V

Notes: LIQ. Show Image

[8] Out of Stock

RWC381A013A

VALVE,SERVI

Notes: GAS

[9] Out of Stock

SSA387F047

VALVE EXP

Notes: EEVH or SM, EEV - VALVE BODY Show Image

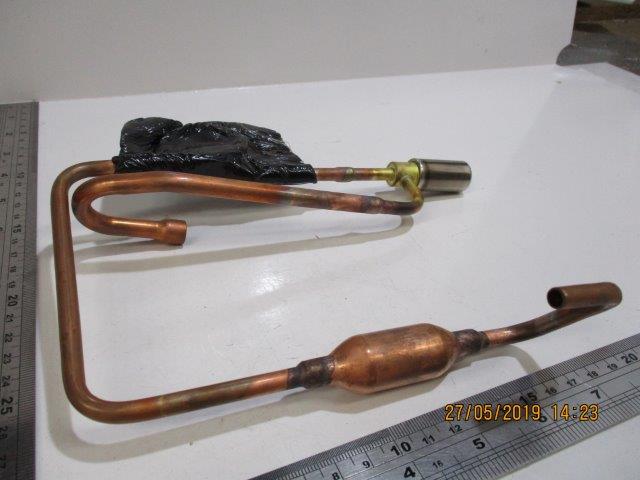

[9-11] In Stock

RWC304A127

PIPING ASSY

Show Image

[10] In Stock

SSA357A005A

STRAINER

Show Image

[11] Contact

RWC315B098

CAPILLARY,SUB

Contact

Notes: !D2.6XD4.0 L300

[12] Contact

SSA325A001CA

PIPE,SHELL

Contact

[13] Contact

RWC154D129

INSULATION,COMP

Contact

[14] In Stock

RSA382F010B

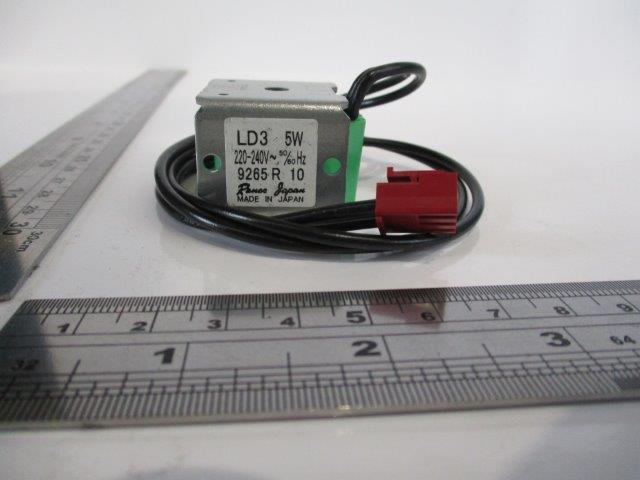

COIL ASSY,SOLENOID

Notes: FOR 20S, FOR REVERSING VALVE (COIL ONLY) Show Image

[15] In Stock

SSA382F210A

COIL,SOLENOID

Notes: FOR EEV

[16] In Stock

AHT201A540ND

RMB5120MNE5

Notes: RM-B5120MNE5, ***COMPRESSORS CANNOT BE RETURNED***

[17] Out of Stock

SSA941C114A

CUSHION RUB

[18] In Stock

SSA914C033

NUT

Notes: 1pc

[19] In Stock

RSA932C004

GASKET

Show Image

[20] In Stock

RSA947K005

COVER TERMINAL

Notes: FOR COMPRESSOR Show Image

[21] In Stock

SSA914C016

NUT

Notes: 1pc Show Image

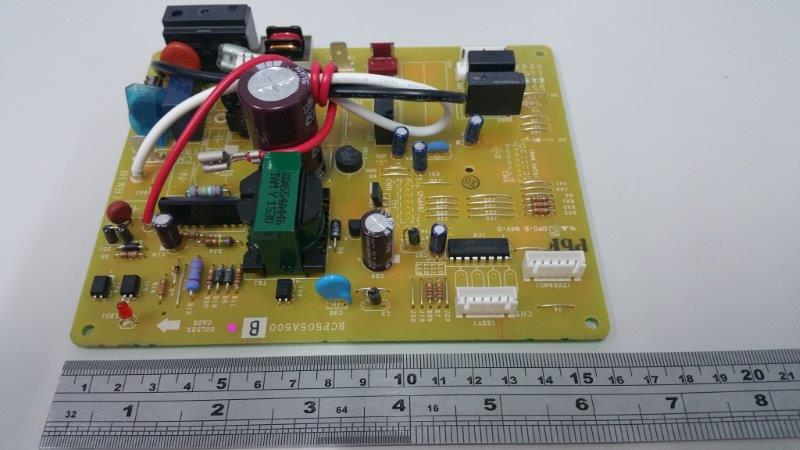

[22] In Stock

RCP505A500B

PWB

Show Image

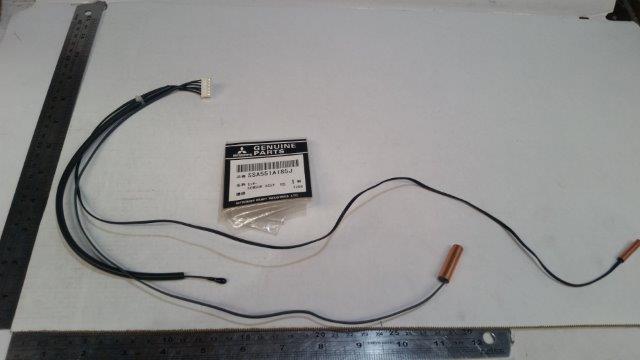

[23] In Stock

SSA551A185J

SENSOR ASSY

Notes: TH1,TH2,TH3 Show Image

[24] In Stock

SSA561B702B

BLOCK,TERMINAL

Notes: T2 Show Image

[25] In Stock

RCP504A500A

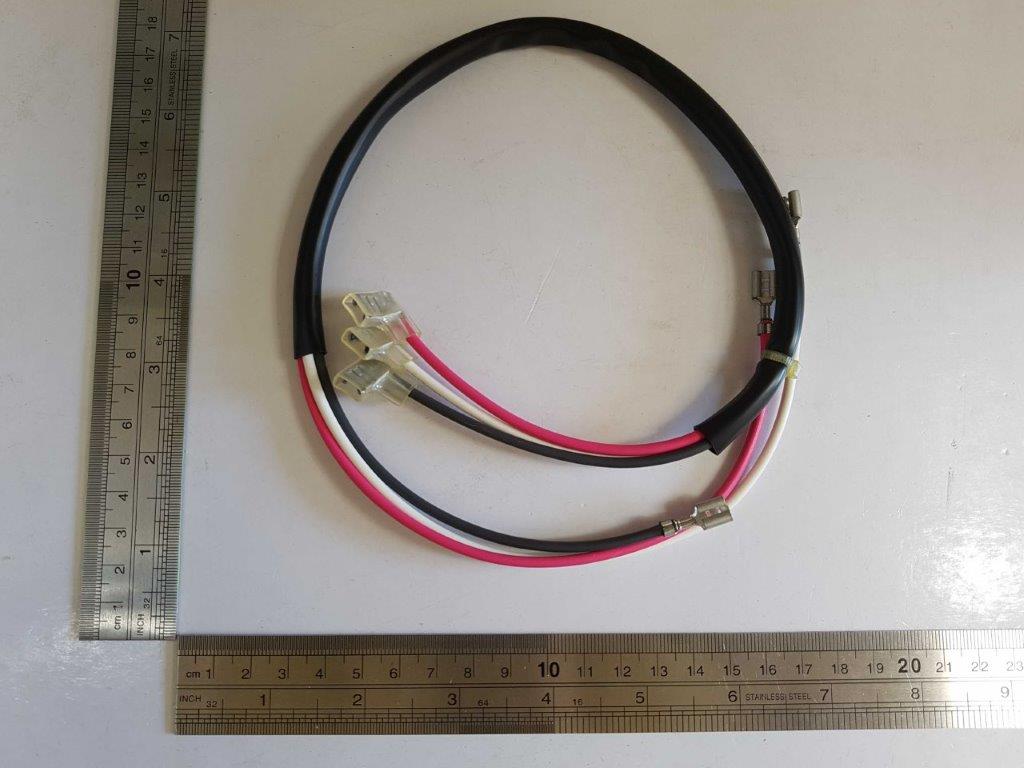

HARNESS

Notes: FOR COMP., LENGTH 65.5CM Show Image

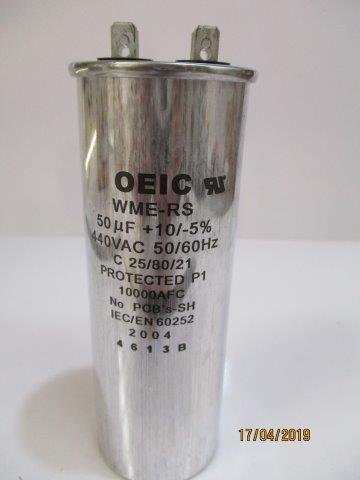

[26] In Stock

SSA552A178

CAPACITOR

Notes: CC 50MF 440VAC Show Image

[27] In Stock

SSA552A836A

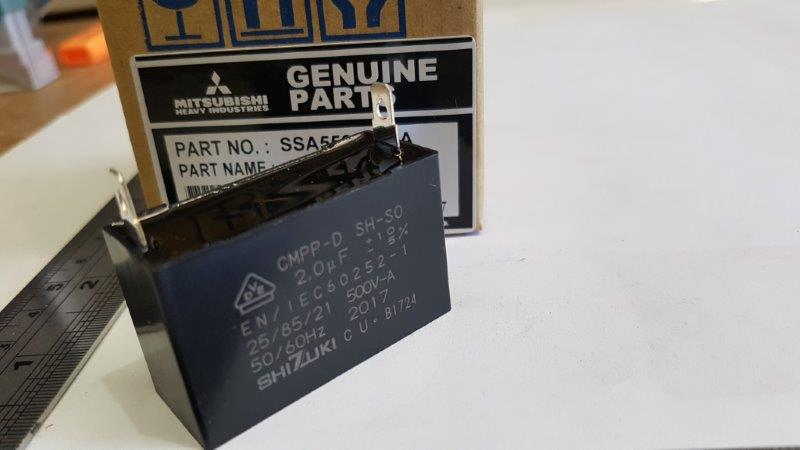

CAPACITOR

Notes: CFO 2.0MF 500VAC Show Image

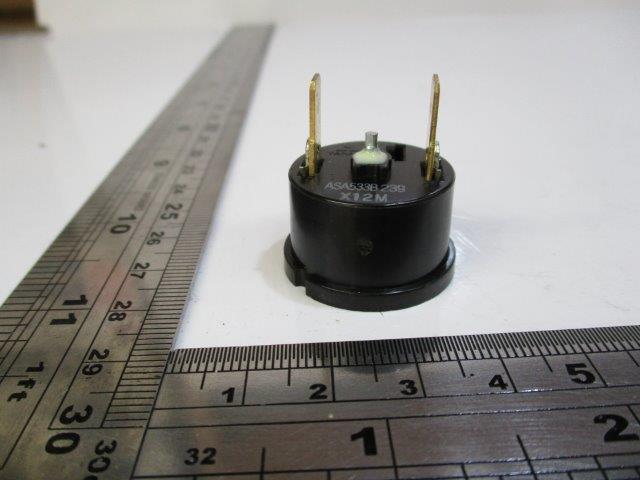

[28] In Stock

ASA533B239

PROTECTOR

Show Image

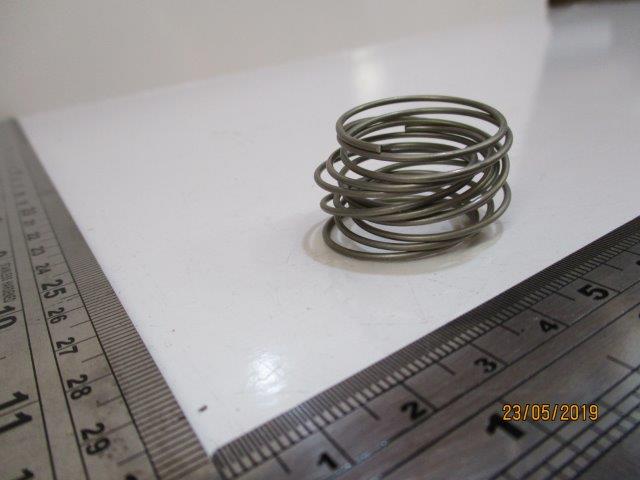

[29] In Stock

AHA941D003

SPRING (PROTECTOR)

Show Image

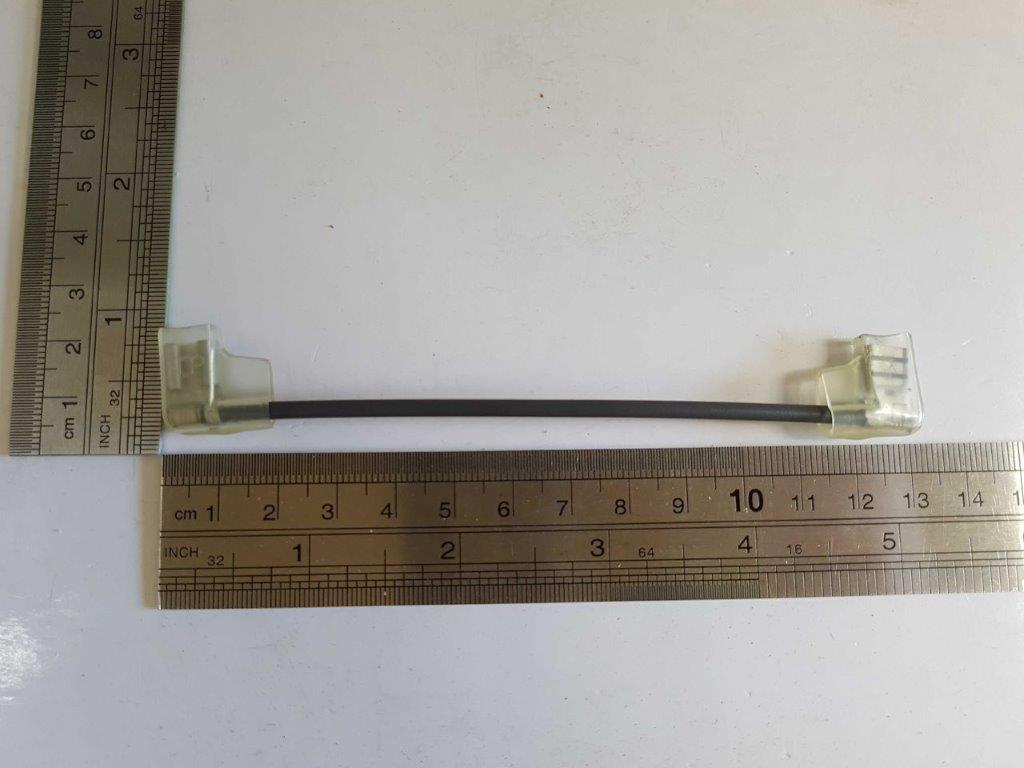

[30] In Stock

RCP504A504A

HARNESS ASSY

Notes: FOR COMP., LENGTH 13CM Show Image

[31] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR THI-R Show Image

[32] In Stock

RCJ941F001

SPRING

Notes: LENGTH 2.5CM Show Image

[33] Contact

RPC008A601B

PARTS,STANDARD(B)

Contact

Notes: !

[34] In Stock

RPC008A601

DRAIN KIT

Notes: 1x ELBOW, 2x GROMMETS PER DRAIN KIT

[35] In Stock

SSA947A089

GROMMET

Notes: D20.1, SSA422A024 ELBOW Show Image

[36] Contact

RWC011F008B

LABEL,MODEL NAME

Contact

SKU: SRC56HEA-S HEAT EXCH. AND CONTROL Category: Uncategorised
