SRC56CAA HEAT EXCH. AND CONTROL

Name: SRC56CAA HEAT EXCH. AND CONTROL
SKU: SRC56CAA HEAT EXCH. AND CONTROL
Availability: InStock

SRC56CAA HEAT EXCH. AND CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

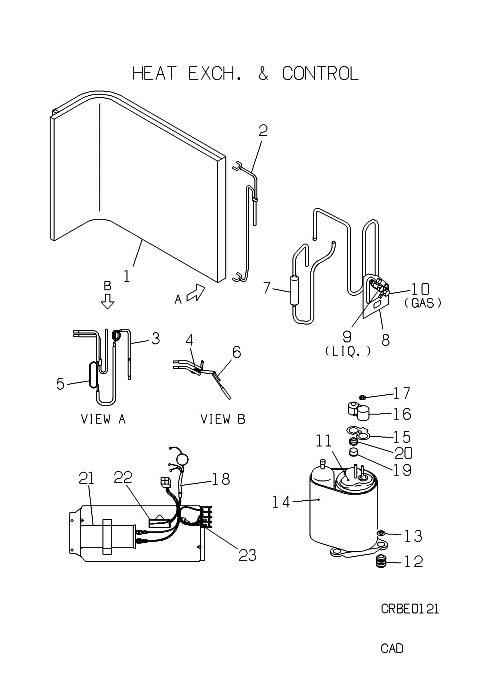

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact

RWC311A005

HEAT EX AIR

Contact

[1-6] Contact

RWC301A015A

HEAT EX AIR

Contact

[2] Contact

RWC321A314A

PIPING

Contact

[3-6] Contact

RWC304A098A

PIPING ASSY

Contact

[4] Contact

RWC315B085

CAPILLARY

Contact

Notes: !D1.5XD2.5 L500

[5] Contact

RWC315B085A

CAPILLARY

Contact

Notes: !D1.5XD2.5 L500

[6] Contact

RWC315B086

CAPILLARY

Contact

Notes: !D2.6XD4.0 L300

[7] Contact

SSA325A001BD

MUFFLER

Contact

Substitute: SSA325A001BH

[8] Contact

RCK116A002

B/K(VALVE)

Contact

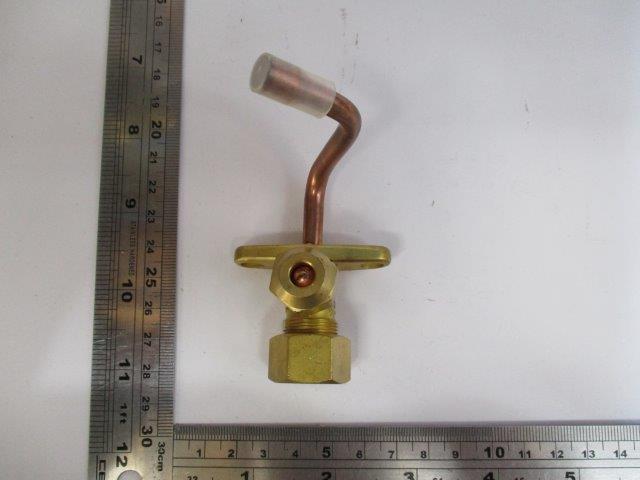

[9] In Stock

RCK381A501

SERVICE V

Notes: LIQ. Show Image

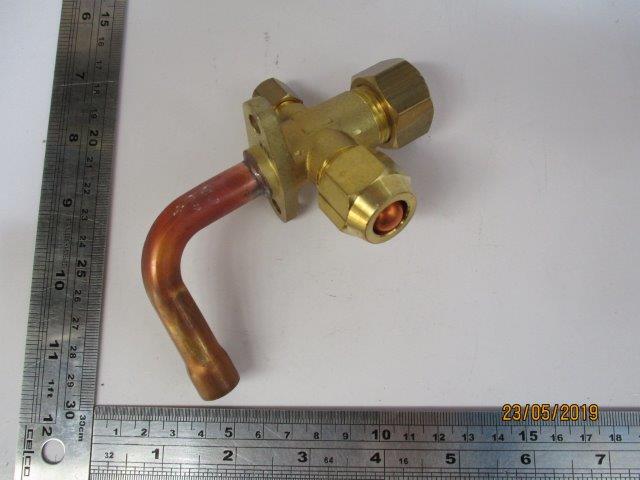

[10] In Stock

RWC381A012

VALVE,SERVS

Notes: GAS Show Image

[11] Out of Stock

AHT201D420NC

COMPRESSOR

Substitute: OUT OF PRODUCTION Notes: RM5526GNE4, ***COMPRESSORS CANNOT BE RETURNED***

[12] Out of Stock

SSA941C114A

CUSHION RUB

[13] In Stock

SSA914C033

NUT

Notes: 1pc

[14] Contact

RWC154D115

INSULATION

Contact

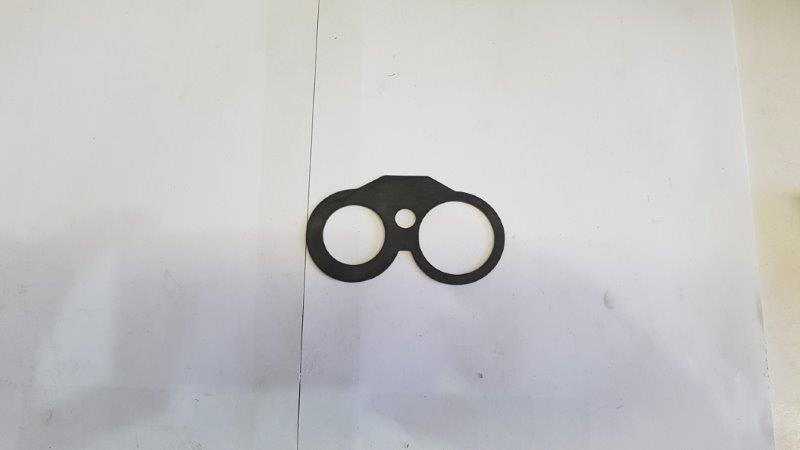

[15] In Stock

AHL932C002

GASKET,COVER

Show Image

[16] Out of Stock

AHL947K001

COVER,TERMINAL

Substitute: OUT OF PRODUCTION

[17] In Stock

SSA914C016

NUT

Notes: 1pc Show Image

[18] Contact

RWC504A077A

WIRING ASSY

Contact

Notes: FOR COMP.

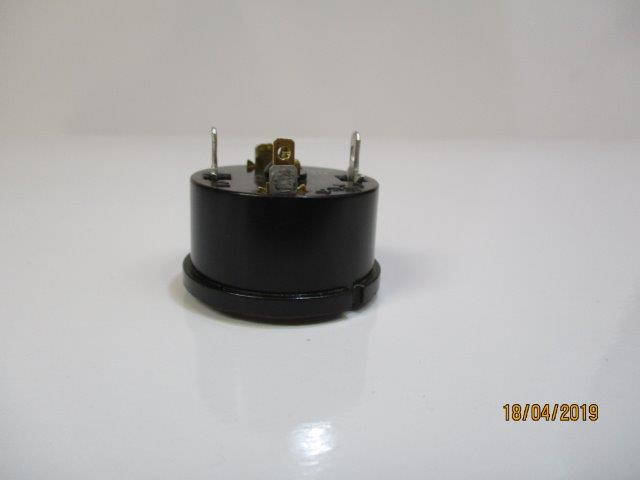

[19] In Stock

ASA533B135

PROTECTOR

Notes: 51C Show Image

[20] Out of Stock

AHL941D003

SPRING(PROTECTOR)

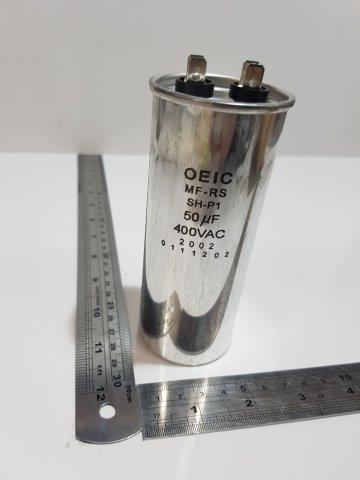

[21] Out of Stock

SSA552A823

CAPACITOR

Notes: CC Show Image

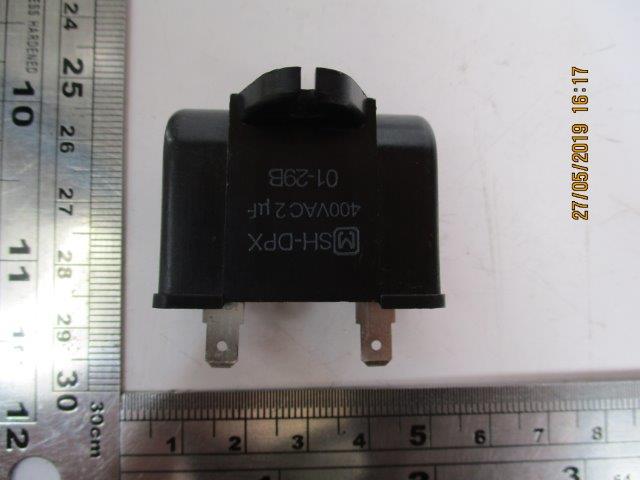

[22] In Stock

SSA552A491A

CAPACITOR,R

Notes: CFO Show Image

[23] In Stock

SSA561B670

BLOCK,TERMI

Notes: T2 Show Image

[24] Contact

RWC011F005C

LABEL,MODEL NAME

Contact
