SRC561HENF-A HEAT EXCH. AND CONTROL

Name: SRC561HENF-A HEAT EXCH. AND CONTROL
SKU: SRC561HENF-A HEAT EXCH. AND CONTROL
Availability: InStock

SRC561HENF-A HEAT EXCH. AND CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

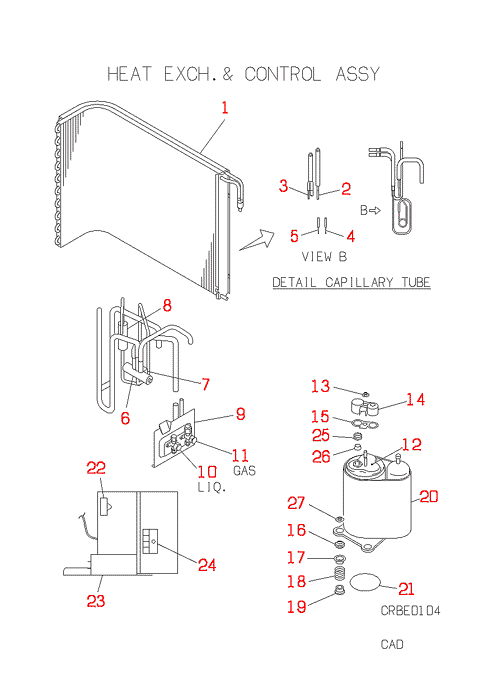

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact

RCC311A007D

HEAT,EX,AIR

Contact

[1-5] Contact

RCC301A015F

HEAT EX,AIR

Contact

[2] Contact

RCC315B058

CAPILLARY

Contact

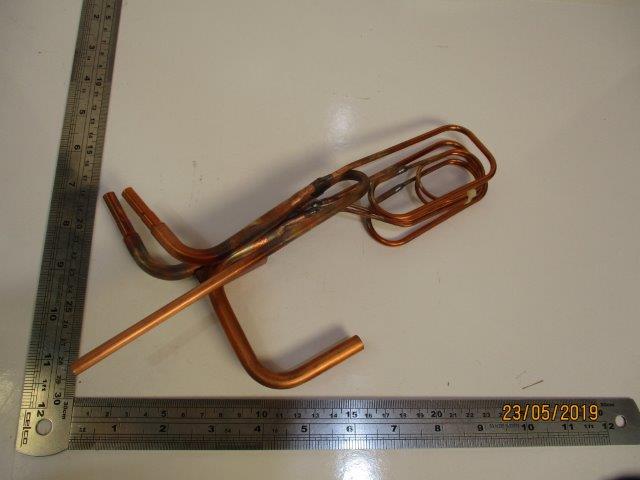

[2-5] In Stock

RCC304A064C

PIPING

Show Image

[3] Contact

RCC315B059

CAPILLARY

Contact

[4] Contact

RCC315B069

CAPILLARY

Contact

Notes: !D1.3XD2.5 L300

[5] Contact

RCC315B069A

CAPILLARY

Contact

Notes: !D1.3XD2.5 L300

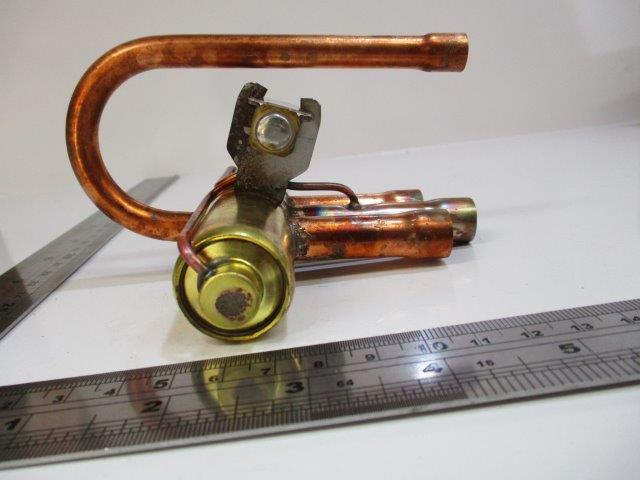

[6] In Stock

SSA382C014

VALVE 4WAY

Show Image

[7] In Stock

SSA382F008F

COIL S 150O

Notes: 20S Show Image

[8] Contact

SSA325A001AY

MUFFLER

Contact

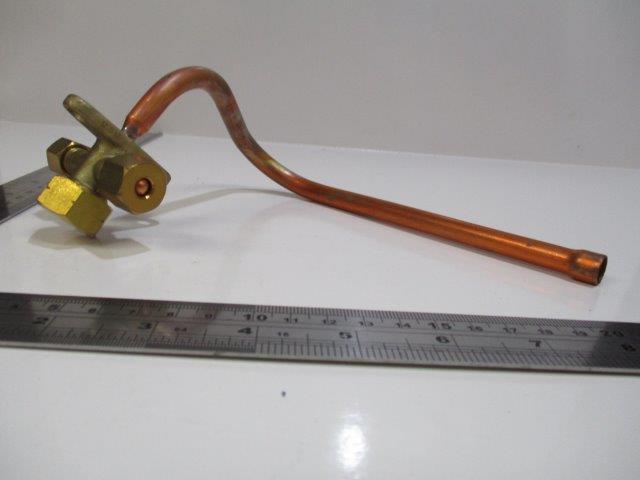

[10] In Stock

RCC381A010

VALVE SERVI

Notes: LIQ. Show Image

[11] Out of Stock

RCC381A009

VALVE SERVI

Notes: GAS

[12] Out of Stock

AHT201D420NC

COMPRESSOR

Substitute: OUT OF PRODUCTION Notes: RM5526GNE4, ***COMPRESSORS CANNOT BE RETURNED***

[13] In Stock

SSA914C016

NUT

Notes: 1pc Show Image

[14] Out of Stock

AHL947K001

COVER,TERMINAL

Substitute: OUT OF PRODUCTION

[15] In Stock

AHL932C002

GASKET,COVER

Show Image

[16] Contact

SSA941C133

CUSHION RUB

Contact

[17] Contact

SSA935C010

COLLER

Contact

Substitute: RM80170 Notes: 1pc ONLY, ***SOLD INDIVIDUALLY***

[18] Contact

AHA941D002A

SPRING(MOUNT)

Contact

[19] Contact

SSA941C012

CUSHION

Contact

Substitute: RM80168

[20] Contact

RCC151D010A

INSULA,COMP

Contact

[21] Contact

RCA154A001

INSULATION

Contact

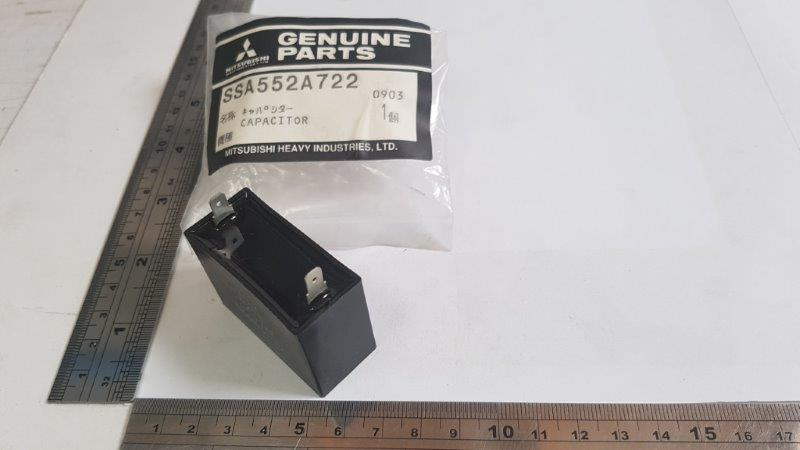

[22] In Stock

SSA552A722

CAPACITOR

Notes: CFO, CAPACITOR FOR FAN MOTOR - 4MF Show Image

[23] In Stock

SSA552A141

CAPACITOR

Notes: CC, COMPRESSOR Show Image

[24] In Stock

SSA561B670

BLOCK,TERMI

Notes: T2 Show Image

[25] Out of Stock

AHL941D003

SPRING(PROTECTOR)

[26] In Stock

ASA533B135

PROTECTOR

Notes: 51C Show Image

[27] In Stock

SSA914C033

NUT

Notes: 1pc

[28] Contact

RSA011F301W

LABEL,MODEL NAME

Contact

SKU: SRC561HENF-A HEAT EXCH. AND CONTROL Category: Uncategorised
