SRC50ZSXA-W/A HEAT EXCH. AND CONTROL

Name: SRC50ZSXA-W/A HEAT EXCH. AND CONTROL
SKU: SRC50ZSXA-W/A HEAT EXCH. AND CONTROL
Availability: InStock

SRC50ZSXA-W/A HEAT EXCH. AND CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

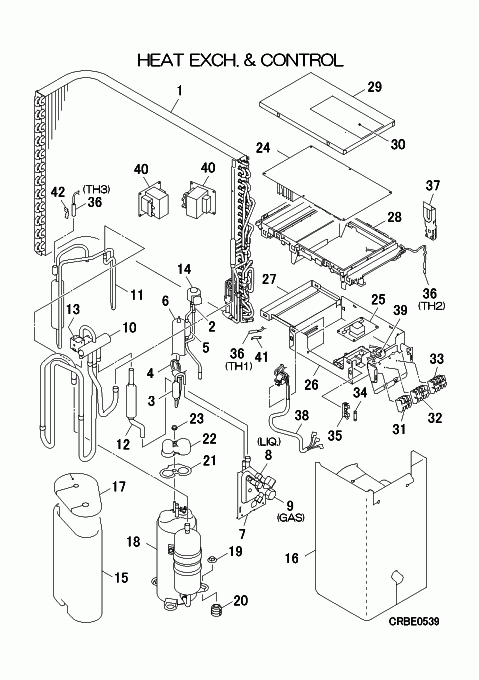

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

RCT301A702

HEAT EXCH ASSY(AIR)

Notes: Outdoor Heat exchanger coil

[2] In Stock

SSA387F051

VALVE,BODY(EXP)

Notes: EEV, 'BODY' ONLY. Does NOT include coil

[2-6] Contact

RCT304A302F

PIPING ASSY(EXPAN)

Contact

[3] In Stock

SSA357A005A

STRAINER

Show Image

[4] In Stock

RCT315B002

CAPILLARY

Notes: !D2.6XD4.0 L300, !D2.6XD4.0 L300‚ / LENGTH 8.6CM Show Image

[5] In Stock

RCN325A700

PIPE,SHELL

Notes: ! Show Image

[6] Contact

RCM325A300D

PIPE,SHELL

Contact

[7] Out of Stock

RCS116A004B

BRACKET,VALVE

[8] In Stock

RCS381A004B

SERVICE VALVE

Notes: LIQ., (1/4") LIQ. Show Image

[9] In Stock

RCT381A002

SERVICE VALVE

Notes: GAS, VALVE,SERVICE (1/2") - GAS Show Image

[10] In Stock

SSA382C098

VALVE S(4WAY)

Notes: 20S, reversing valve, body only Show Image

[11] Contact

RCT304A307

PIPING ASSY(DISCH)

Contact

[12] Contact

RCT321A359A

PIPING ASSY(E)

Contact

[13] In Stock

RSA382F013BC

COIL ASSY,SOLENOID

Notes: FOR 20S, REVERSING VALVE SOLENOID COIL / 4 WAY VALVE COIL - coil only

[14] In Stock

SSA382F210AY

SOLENOID COIL (EEV)

Notes: FOR EEV, SOLENOID COIL FOR EEV

[15] Contact

RCT154D300

INSULATION

Contact

[16] Contact

RCT154D201

INSULATION

Contact

[17] Contact

RCT154D302

INSULATION,COMP

Contact

[18] In Stock

AHT201C134WL

COMPRESSOR

Notes: RMT5113SWE11, ***COMPRESSORS CANNOT BE RETURNED***

[19] In Stock

SSA914C013A

NUT,FLANGE

Notes: 1pc Show Image

[20] In Stock

SSA941C346A

CUSHION,RUBBER

Notes: 1pc, FOR COMPRESSOR Show Image

[21] In Stock

RSA932C004

GASKET

Show Image

[22] In Stock

RSA947K005

COVER TERMINAL

Notes: FOR COMPRESSOR Show Image

[23] In Stock

SSA914C016

NUT

Notes: 1pc Show Image

[24] In Stock

RCR505A100V

PWB ASSY

Notes: PWB1, PWB1 - Main PCB - ****Must confirm SERVICE CODE before ordering**** Show Image

[25] In Stock

RCT505A304

DRED

Notes: PWB2, THIS PWB IS ONLY REQUIRED IN SPECIAL CIRCUMSTANCES, FOR MORE INFO CONTACT TECH SUPPORT Show Image

[26] In Stock

RCT142A201A

BOX ASSY,CONTROL

[27] In Stock

RCR132A200

COVER,CONTROL

[28] In Stock

RCR142A202A

BOX,CONTROL

[29-30] Contact

RCT142A202

LID ASSY,CONTROL

Contact

[30] Contact

RCR011G201

LABEL,WIRING

Contact

Notes: !

[31] In Stock

SSA561B665

BLOCK TERMI

Notes: TB1, T1 Show Image

[32] In Stock

SSA561B702B

BLOCK,TERMINAL

Notes: TB2, T2 Show Image

[33] In Stock

SSA561B733

BLOCK,TERMINAL

Notes: TB3, T3 Show Image

[34] In Stock

SSA564A136A

FUSE(CURRENT)

Notes: F 20A, F 20A‚ - 20 amp fuse Show Image

[35] In Stock

SSA564B088

HOLDER,FUSE

Show Image

[36] In Stock

SSA551A245

SENSOR ASSY

Notes: TH2,3,4, TH1,2,3 Show Image

[37] In Stock

RCV129A001A

HOLDER,SENSOR

Show Image

[38] In Stock

RCT504A020B

WIRING ASSY

Notes: FOR COMP., Red. White, Black Show Image

[39] In Stock

SSA554D173

CORE,FERRITE

[40] In Stock

SSA554B114

REACTOR

Show Image

[41] In Stock

RKF941F002

SPRING

Notes: FOR TH2, LENGTH 2.8CM Show Image

[42] In Stock

RCJ941F001

SPRING

Notes: FOR TH4, LENGTH 2.5CM Show Image

[43] Contact

RWC011F047J

LABEL,MODEL NAME

Contact

Notes: !
