SRC50HA HEAT EXCH. AND CONTROL

Name: SRC50HA HEAT EXCH. AND CONTROL
SKU: SRC50HA HEAT EXCH. AND CONTROL
Availability: InStock

SRC50HA HEAT EXCH. AND CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

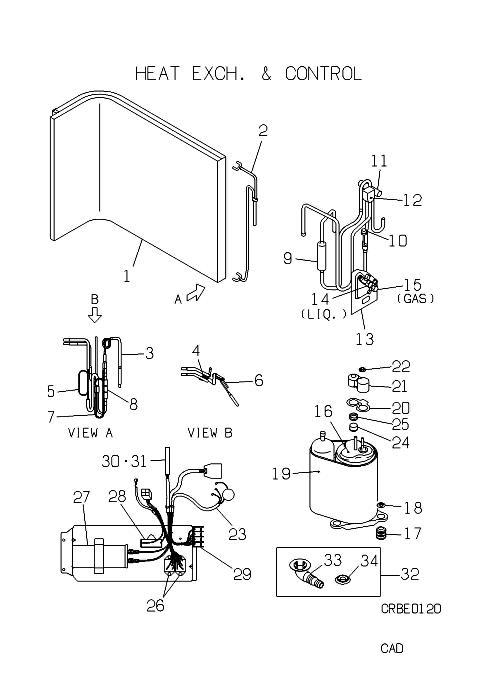

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact

RWC311A005

HEAT EX AIR

Contact

[1-8] Contact

RWC301A015

HEAT EX AIR

Contact

[2] Contact

RWC321A314

PIPING

Contact

[3-8] In Stock

RWC304A098

PIPING ASSY

Show Image

[4] Contact

RWC315B085

CAPILLARY

Contact

Notes: !D1.5XD2.5 L500

[5] Contact

RWC315B085A

CAPILLARY

Contact

Notes: !D1.5XD2.5 L500

[6] Contact

RWC315B086

CAPILLARY

Contact

Notes: !D2.6XD4.0 L300

[7] Contact

RWC315B090

CAPILLARY

Contact

Notes: !D2.0XD3.2 L600

[8] In Stock

SSA385A041A

CHECK VALVE

Show Image

[9] Contact

SSA325A001BD

MUFFLER

Contact

Substitute: SSA325A001BH

[10] In Stock

SSA532A052F

SWITCH,HP

Notes: 63H2 Show Image

[11] Out of Stock

SSA382C073

4 WAY VAL

Substitute: OUT OF PRODUCTION Show Image

[12] In Stock

SSA382F017C

SOLENO COIL

Notes: FOR 20S Show Image

[13] Contact

RCK116A002

B/K(VALVE)

Contact

[14] In Stock

RCK381A501

SERVICE V

Notes: LIQ. Show Image

[15] In Stock

RWC381A012

VALVE,SERVS

Notes: GAS Show Image

[16] Out of Stock

AHT201A410NC

RM5523GNE4-

Substitute: AHT201D410NC Notes: RM5523GNE4, ***COMPRESSORS CANNOT BE RETURNED*** **** SUB ALSO OUT OF PRODUCTION AHT201D410NC ****

[17] Out of Stock

SSA941C114A

CUSHION RUB

[18] In Stock

SSA914C033

NUT

Notes: 1pc

[19] Contact

RWC154D115

INSULATION

Contact

[20] In Stock

AHL932C002

GASKET,COVER

Show Image

[21] Out of Stock

AHL947K001

COVER,TERMINAL

Substitute: OUT OF PRODUCTION

[22] In Stock

SSA914C016

NUT

Notes: 1pc Show Image

[23] Contact

RWC504A076

WIRING ASSY

Contact

Notes: FOR COMP.

[24] In Stock

ASA533B176

PROTECTOR

Notes: 51C Show Image

[25] Out of Stock

AHL941D003

SPRING(PROTECTOR)

[26] In Stock

SSA521F079

RELAY

Notes: 52FL,52FM,52FH, SOLD INDIVIDUALLY - SOME UNITS HAVE MULTIPLE Show Image

[27] In Stock

SSA552A822

CAPACITOR

Notes: CC Show Image

[28] In Stock

SSA552A491A

CAPACITOR,R

Notes: CFO Show Image

[29] In Stock

SSA561B670

BLOCK,TERMI

Notes: T2 Show Image

[30] Contact

RWC011F005

LABEL,MODEL NAME

Contact

SKU: SRC50HA HEAT EXCH. AND CONTROL Category: Uncategorised
