SRC501CENF-A HEAT EXCH. AND CONTROL

Name: SRC501CENF-A HEAT EXCH. AND CONTROL
SKU: SRC501CENF-A HEAT EXCH. AND CONTROL
Availability: InStock

SRC501CENF-A HEAT EXCH. AND CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

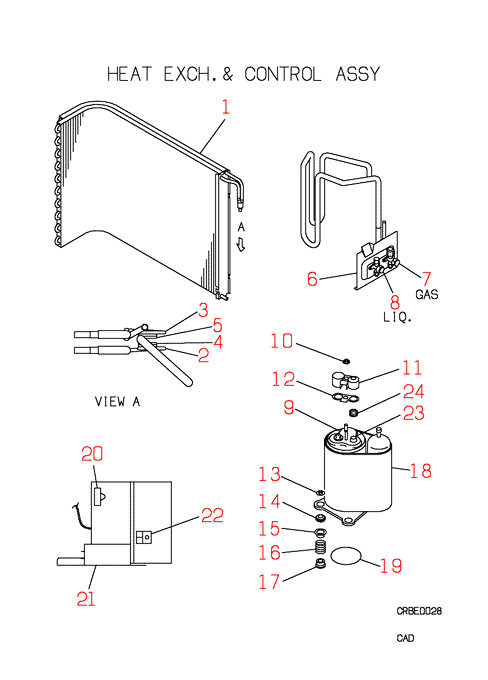

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact

RCC311A007D

HEAT,EX,AIR

Contact

[1-5] Contact

RCC301A015B

HEAT EX,AIR

Contact

[2] Contact

RCC315B058

CAPILLARY

Contact

[2-5] Contact

RCC304A064

PIPING ASSY(CAPI)

Contact

[3] Contact

RCC315B059

CAPILLARY

Contact

[4] Contact

RCC315B060

CAPILLARY

Contact

[5] Contact

RCC315B061

CAPILLARY

Contact

[6] Contact

RCC116A003N

BRAKET VALV

Contact

[7] Out of Stock

RCC381A009

VALVE SERVI

Notes: GAS

[8] In Stock

RCC381A010

VALVE SERVI

Notes: LIQ. Show Image

[9] Out of Stock

AHT201A410NC

RM5523GNE4-

Substitute: AHT201D410NC Notes: RM5523GNE4, ***COMPRESSORS CANNOT BE RETURNED*** **** SUB ALSO OUT OF PRODUCTION AHT201D410NC ****

[10] In Stock

SSA914C016

NUT

Notes: 1pc Show Image

[11] Out of Stock

AHL947K001

COVER,TERMINAL

Substitute: OUT OF PRODUCTION

[12] In Stock

AHL932C002

GASKET,COVER

Show Image

[13] In Stock

SSA914C033

NUT

Notes: 1pc

[14] Contact

SSA941C133

CUSHION RUB

Contact

[15] Contact

SSA935C010

COLLER

Contact

Substitute: RM80170 Notes: 1pc ONLY, ***SOLD INDIVIDUALLY***

[16] Contact

AHA941D002A

SPRING(MOUNT)

Contact

[17] Contact

SSA941C012

CUSHION

Contact

Substitute: RM80168

[18] Contact

RCC151D010A

INSULA,COMP

Contact

[19] Contact

RCA154A001

INSULATION

Contact

[20] In Stock

SSA552A862C

CAPACITOR,R

Notes: CFO 3MF 400V Show Image

[21] In Stock

SSA552A128

CAPACITOR

Notes: CC 50MF 370V Show Image

[22] Contact

SSA561B669

BLOCK,TERMI

Contact

[23] In Stock

ASA533B176

PROTECTOR

Notes: 51C Show Image

[24] Out of Stock

AHL941D003

SPRING(PROTECTOR)

[25] Contact

RSA011F301V

LABEL,MODEL NAME

Contact

SKU: SRC501CENF-A HEAT EXCH. AND CONTROL Category: Uncategorised
