SRC40HCA-S HEAT EXCH. AND CONTROL

Name: SRC40HCA-S HEAT EXCH. AND CONTROL
SKU: SRC40HCA-S HEAT EXCH. AND CONTROL
Availability: InStock

SRC40HCA-S HEAT EXCH. AND CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

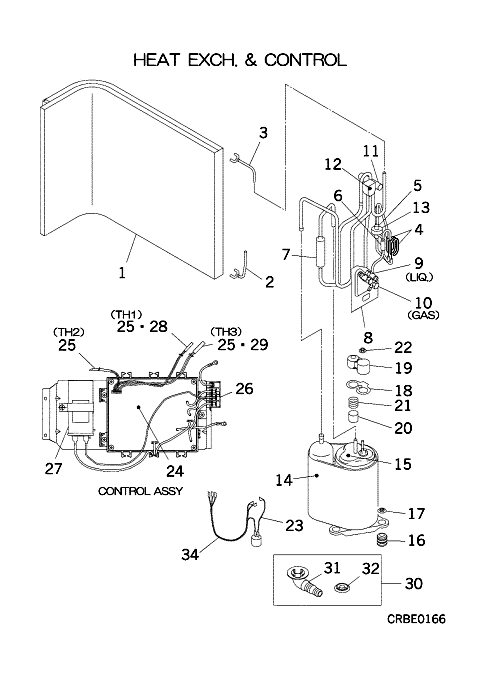

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-3] Contact

RWC301A022

HEAT EXCH A

Contact

[2] Contact

RWC321A373

PIPE ASSY

Contact

[3] Contact

RWC321A374

PIPE ASSY

Contact

[4] Contact

RWC315B091

CAPILLARY,SUB

Contact

Notes: !D2.6XD4.0 L300

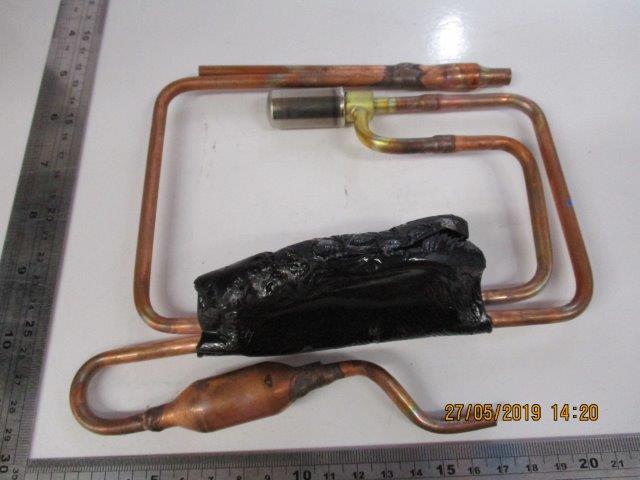

[4-6] In Stock

RWC304A113

PIPING ASSY

Show Image

[5] In Stock

SSA387F051

VALVE,BODY(EXP)

Notes: EEV, 'BODY' ONLY. Does NOT include coil

[6] In Stock

SSA357A005A

STRAINER

Show Image

[7] Contact

RCD325A700

PIPE,SHELL

Contact

[8] Contact

RCK116A002

B/K(VALVE)

Contact

[9] In Stock

RCP381A001

SERVICE V

Notes: LIQ. Show Image

[10] In Stock

RWC381A013

VALVE,SERVICE(1/2"

Notes: GAS

[11] Out of Stock

SSA382C073

4 WAY VAL

Substitute: OUT OF PRODUCTION Show Image

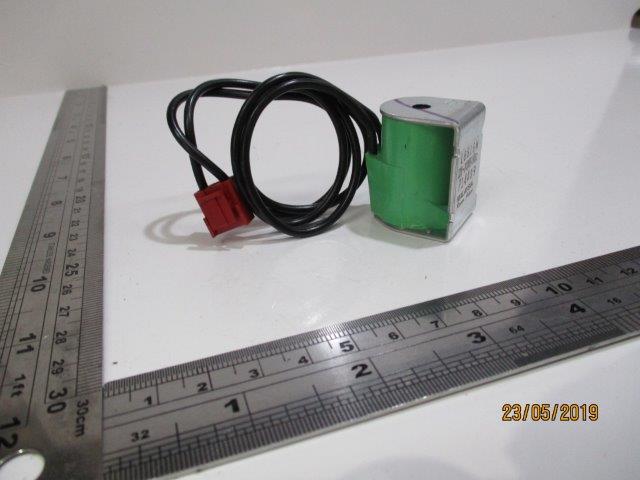

[12] In Stock

RCD382F007AB

COIL ASSY,S

Notes: FOR 20S Show Image

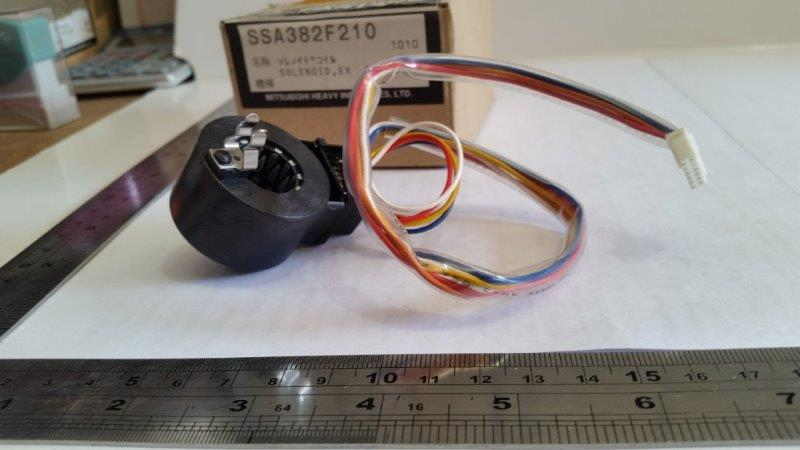

[13] In Stock

SSA382F210

SOLENOID,EX

Show Image

[14] Contact

RWC154D125

INSULATION

Contact

[15] In Stock

RSA201A006

COMPRESSOR

Notes: 5KS150DBB, ***COMPRESSORS CANNOT BE RETURNED***

[16] Out of Stock

SSA941C114A

CUSHION RUB

[17] In Stock

SSA914C013A

NUT,FLANGE

Notes: 1pc Show Image

[18] Contact

RSA932C002

GASKET,COVE

Contact

[19] Contact

RSA947K003

COVER,TERMI

Contact

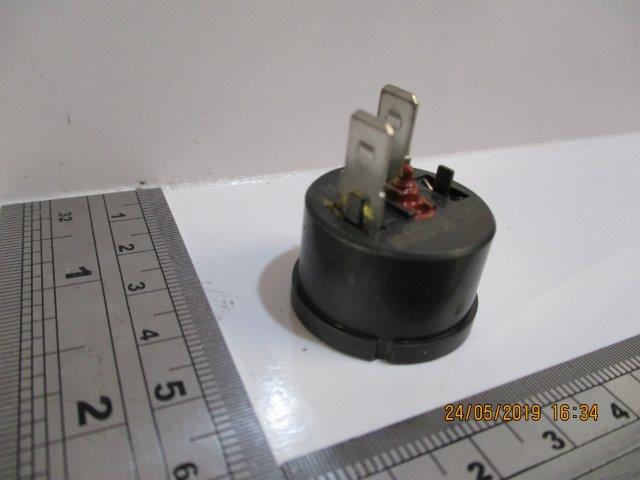

[20] In Stock

RSA533B003

PROTECTOR,M

Show Image

[21] In Stock

AHA941D003

SPRING (PROTECTOR)

Show Image

[22] In Stock

SSA914C016

NUT

Notes: 1pc Show Image

[23] In Stock

RCP504A504A

HARNESS ASSY

Notes: FOR COMP., LENGTH 13CM Show Image

[24] In Stock

RCP505A500A

PWB ASSY

[25] In Stock

SSA551A185F

SENS0R

Notes: TH1,TH2,TH3, TH1,TH2,TH3 - SENSOR ASSEMBLY

[26] In Stock

SSA561B702

BLOCK,TERMINAL

Notes: TB1 Show Image

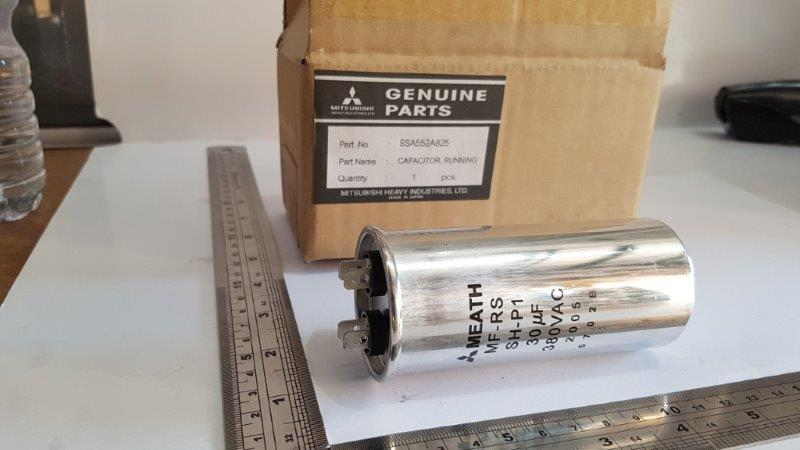

[27] In Stock

SSA552A825

CAPACITOR

Notes: CC Show Image

[28] In Stock

RKF941F002

SPRING

Notes: LENGTH 2.8CM Show Image

[29] In Stock

RCJ941F001

SPRING

Notes: LENGTH 2.5CM Show Image

[30] In Stock

RPC008A601

DRAIN KIT

Notes: 1x ELBOW, 2x GROMMETS PER DRAIN KIT

[31] In Stock

RPC008A601

DRAIN KIT

Notes: 1x ELBOW, 2x GROMMETS PER DRAIN KIT

[32] In Stock

SSA947A089

GROMMET

Notes: D20.1, SSA422A024 ELBOW Show Image

[33] Contact

RWC011F006D

LABEL,MODEL NAME

Contact

[34] In Stock

RCP504A500A

HARNESS

Notes: FOR COMP., LENGTH 65.5CM Show Image

SKU: SRC40HCA-S HEAT EXCH. AND CONTROL Category: Uncategorised
