SRC35GZ-L1 HEAT EXCH. AND CONTROL

Name: SRC35GZ-L1 HEAT EXCH. AND CONTROL
SKU: SRC35GZ-L1 HEAT EXCH. AND CONTROL
Availability: InStock

SRC35GZ-L1 HEAT EXCH. AND CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

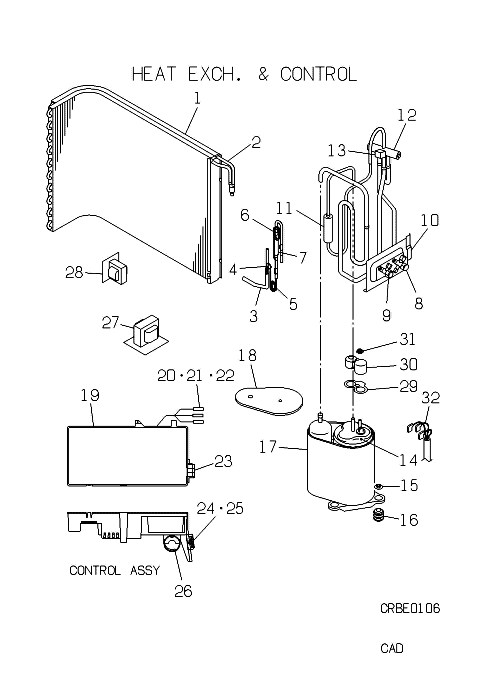

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact

RCG311A005G

HEAT,EX,AIR

Contact

Substitute: RWC301A013

[1-6] Contact

RWC301A013

HEAT EX AIR

Contact

[2] Contact

RWC321A259

PIPING ASSY

Contact

[3-7] Out of Stock

RWC304A088

PIPING ASSY

[4] Contact

RWC315B063

CAPILLARY

Contact

Notes: !D1.6XD3.2 L400

[5] Contact

RWC315B064

CAPILLARY

Contact

Notes: !D2.6XD4.0 L300

[6] Contact

RWC315B065

CAPILLARY

Contact

Notes: !D1.5XD2.5 L400

[7] In Stock

SSA385A015

VALVE CHECK

Show Image

[8] In Stock

RCG381A007A

VELVE SERVI

Notes: GAS, 1/2" GAS (SUCTION) Show Image

[9] In Stock

RCG381A707

VALVE SERVI

Notes: LIQ. Show Image

[10] Contact

RCG116A003MG

BRACKET,VAL

Contact

[11] Contact

RCD325A700

PIPE,SHELL

Contact

[12] In Stock

SSA382C034

VALVE 4WAY

Notes: REVERSING VALVE (4WAY) Show Image

[13] In Stock

SSA382F414

COIL SOLENO

Notes: SV, 240V Show Image

[14] In Stock

AHT201A196A

RM5485GAE1T

Notes: RM5485GAE1, ***COMPRESSORS CANNOT BE RETURNED***

[15] In Stock

SSA914C013A

NUT,FLANGE

Notes: 1pc Show Image

[16] In Stock

SSA941C241

CUSION

Show Image

[17] Out of Stock

RCG154D008

INSULATION

Notes: SIDE

[18] Out of Stock

RCG154D011

INSULATION

Notes: UPPER

[19] In Stock

RCK505A520A

PWB ASSY

Notes: PWB1

[20] In Stock

RCK551A510

SENSOR ASSY

Notes: OUTDOOR SENSOR SRK35GZ-L1 Show Image

[21] In Stock

RKF941F002

SPRING

Notes: LENGTH 2.8CM Show Image

[22] Out of Stock

SSA937C027

CLIP

Notes: FOR TH3

[23] In Stock

SSA561B675

BLOCK,TERMI

Show Image

[24] In Stock

SSA564A047

FUSE

Notes: F 20A Show Image

[25] In Stock

SSA564B044

HOLDER, FUSE

Show Image

[26] In Stock

SSA552F382

CAPACITOR

Notes: 30U Show Image

[27] Out of Stock

SSA554B058

REACTOR

[28] Out of Stock

SSA554B057A

REACTOR

[29] In Stock

AHA932C002

GASKET

[30] In Stock

AHA947K002

COVER

[31] In Stock

SSA914C016

NUT

Notes: 1pc Show Image

[32] Contact

RCG504A003D

HARNESS

Contact

Notes: FOR COMP.

[33] Contact

RSA011F282AM

LABEL,MODEL NAME

Contact
