SRC328HENF-A HEAT EXCH. AND CONTROL

Name: SRC328HENF-A HEAT EXCH. AND CONTROL
SKU: SRC328HENF-A HEAT EXCH. AND CONTROL
Availability: InStock

SRC328HENF-A HEAT EXCH. AND CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

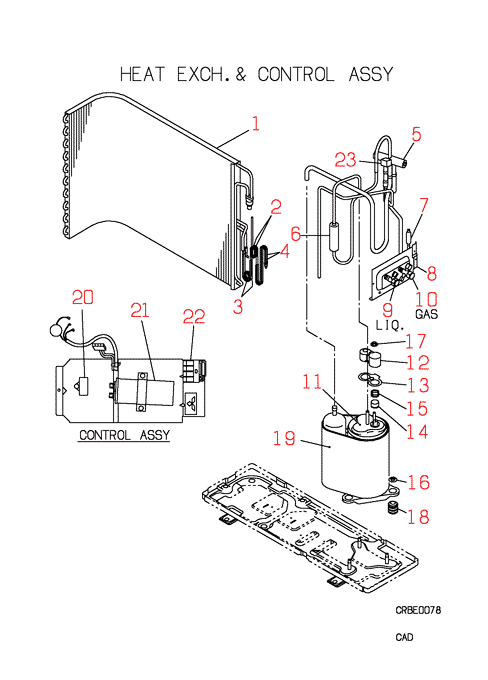

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact

RCG311A001MA

HEAT EXCH

Contact

[1-4] Contact

RCG301A004MN

HEAT EXCH ASSY(AIR

Contact

[2] Contact

RCG315B019L

CAPILLARY

Contact

[2-4] Contact

RCG304A015N

PIPING ASSY

Contact

[3] Contact

RCG315B017

CAPILLARY

Contact

Substitute: P210V26A000

[4] Contact

RCG315B018

CAPILLARY

Contact

Substitute: P210V26A000

[5] In Stock

SSA382C034

VALVE 4WAY

Notes: REVERSING VALVE (4WAY) Show Image

[6] Contact

RCD325A700

PIPE,SHELL

Contact

[7] In Stock

SSA357A005A

STRAINER

Show Image

[8] Contact

RCG116A003MG

BRACKET,VAL

Contact

[9] Contact

RCG381A700

SERVICE VAL

Contact

Substitute: RCG381A014 Notes: LIQ.

[10] In Stock

RCG381A007A

VELVE SERVI

Notes: GAS, 1/2" GAS (SUCTION) Show Image

[11] In Stock

AHT201A340NA

RM5517GNE2

Notes: RM5517GNE2 1PHASE 22, ***COMPRESSORS CANNOT BE RETURNED***

[12] In Stock

AHA947K002

COVER

[13] In Stock

AHA932C002

GASKET

[14] In Stock

ASA533B092

PROTECTOR

Notes: 51C Show Image

[15] In Stock

AHA941D003

SPRING (PROTECTOR)

Show Image

[16] In Stock

SSA914C033

NUT

Notes: 1pc

[17] In Stock

SSA914C016

NUT

Notes: 1pc Show Image

[18] Out of Stock

SSA941C239

R CUSSION

Substitute: OUT OF PRODUCTION

[19] Contact

RCG151C021

INSULATION

Contact

[20] In Stock

SSA552A153

CAPACITOR,R

Notes: 1.6MF 460VAC Show Image

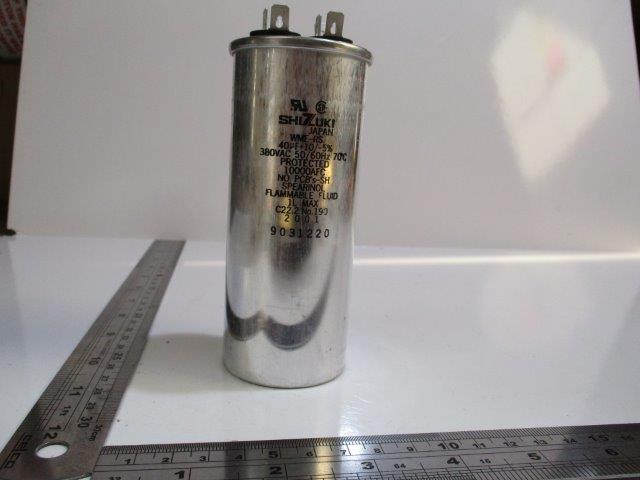

[21] In Stock

SSA552A149

CAPACITOR

Notes: CC Show Image

[22] In Stock

SSA561B670

BLOCK,TERMI

Notes: T2 Show Image

[23] In Stock

SSA382F414

COIL SOLENO

Notes: SV, 240V Show Image

SKU: SRC328HENF-A HEAT EXCH. AND CONTROL Category: Uncategorised
