SRC25ZDA-S HEAT EXCH. AND CONTROL

Name: SRC25ZDA-S HEAT EXCH. AND CONTROL
SKU: SRC25ZDA-S HEAT EXCH. AND CONTROL
Availability: InStock

SRC25ZDA-S HEAT EXCH. AND CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

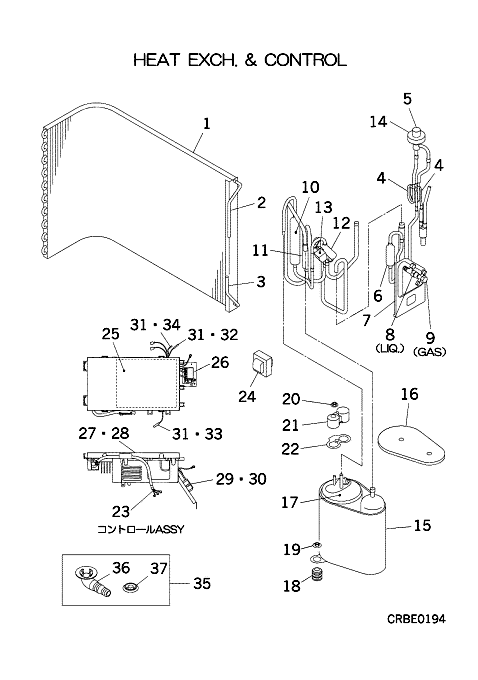

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-3] Contact

RCP301A001J

HEAT EXCH

Contact

[2] Contact

RCP321A159

PIPE

Contact

[3] Contact

RCP321A160

PIPE

Contact

[4] In Stock

RCP315B002

CAPILLARY,SUB

Notes: !D2.6XD4.0 L300, !D2.6XD4.0 L300‚ / LENGTH 8.5CM Show Image

[4-6] In Stock

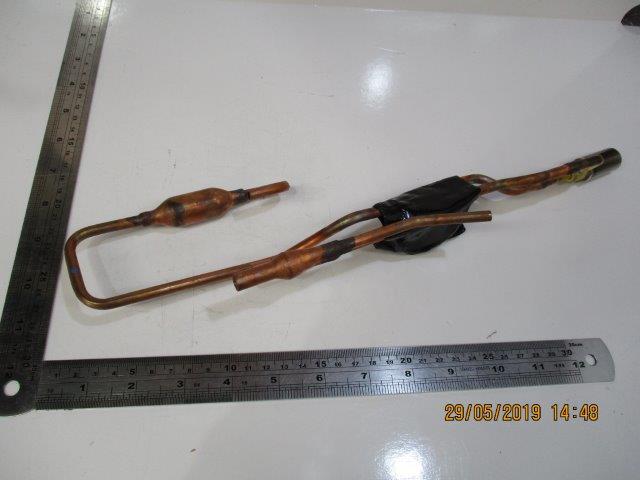

RCP304A105A

PIPING ASSY

Show Image

[5] In Stock

SSA387F051

VALVE,BODY(EXP)

Notes: EEV, 'BODY' ONLY. Does NOT include coil

[6] In Stock

SSA357A005A

STRAINER

Show Image

[7] Contact

RCK116A002

B/K(VALVE)

Contact

[8] In Stock

RCP381A003

SERVICE V

Notes: LIQ. Show Image

[9] Out of Stock

RCP381A004

SERVICE VAL

Substitute: OUT OF PRODUCTION Notes: GAS Show Image

[10] Out of Stock

RCD325A700A

PIPE,SHELL

[11] Contact

SSA325A001CH

PIPE,SHELL

Contact

[12] In Stock

SSA382C077

VALVE,S(4WAY)

Notes: 20S, REVERSING VALVE (BODY) Show Image

[13] In Stock

RSA382F010B

COIL ASSY,SOLENOID

Notes: FOR 20S, FOR REVERSING VALVE (COIL ONLY) Show Image

[14] In Stock

SSA382F210A

COIL,SOLENOID

Notes: FOR EEV

[15] Contact

RCP154D002

INSULATION

Contact

Notes: SIDE

[16] Contact

RCM154D824

INSULATION

Contact

Notes: UPPER

[17] In Stock

AHT201A864D

COMPRESSOR ASSY

Notes: RM-B5077MD1, ***COMPRESSORS CANNOT BE RETURNED***

[18] In Stock

SSA941C241

CUSION

Show Image

[19] In Stock

SSA914C013A

NUT,FLANGE

Notes: 1pc Show Image

[20] In Stock

SSA914C016

NUT

Notes: 1pc Show Image

[21] In Stock

RSA947K005

COVER TERMINAL

Notes: FOR COMPRESSOR Show Image

[22] In Stock

RSA932C004

GASKET

Show Image

[23] Contact

RCN504A011F

WIRING ASSY

Contact

Notes: FOR COMPRESSOR

[24] In Stock

SSA554B069

REACTOR

[25] Out of Stock

RCP505A101AD

PWB ASSY

Substitute: OUT OF PRODUCTION Notes: OUT OF PRODUCTION - SUB FOR RCP505A101AC

[26] In Stock

SSA561B702

BLOCK,TERMINAL

Notes: TB1 Show Image

[27-28] Contact

RCP142A105A

LID ASSY,CO

Contact

[28] Contact

RWC011G077

LABEL,WIRING

Contact

[29] In Stock

SSA564A047

FUSE

Notes: F 20A Show Image

[30] In Stock

SSA564B044

HOLDER, FUSE

Show Image

[31] In Stock

SSA551A185H

SENSOR

Notes: HEAT EXCHANGE,DISCHARGE PIPE,OUTDOOR TEMP, TH1,TH2,TH3 Show Image

[32] In Stock

RKF941F002

SPRING

Notes: LENGTH 2.8CM Show Image

[33] In Stock

RCJ941F001

SPRING

Notes: LENGTH 2.5CM Show Image

[34] Contact

RCP129A001

HOLDER

Contact

Notes: FOR OUTDOOR TEMP SENSOR

[35] Contact

RPC008A601B

PARTS,STANDARD(B)

Contact

Notes: !

[36] In Stock

RPC008A601

DRAIN KIT

Notes: 1x ELBOW, 2x GROMMETS PER DRAIN KIT

[37] In Stock

SSA947A089

GROMMET

Notes: D20.1, SSA422A024 ELBOW Show Image

[38] Contact

RSA011F398

LABEL,MODEL NAME

Contact
