SRC25ZAA HEAT EXCH. AND CONTROL

Name: SRC25ZAA HEAT EXCH. AND CONTROL
SKU: SRC25ZAA HEAT EXCH. AND CONTROL
Availability: InStock

SRC25ZAA HEAT EXCH. AND CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

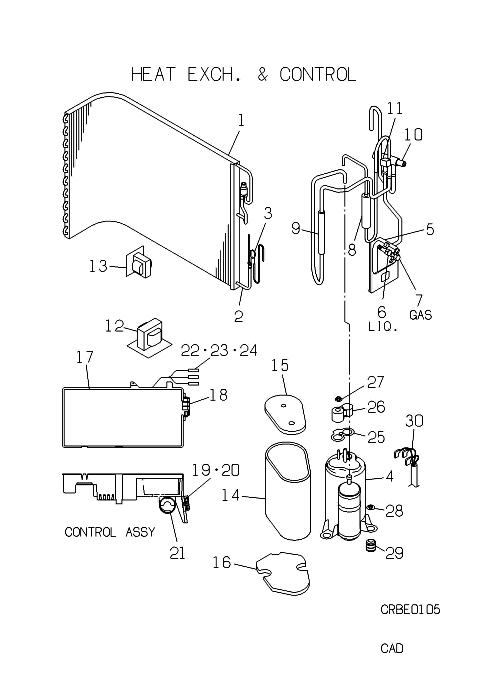

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact

RCK311A502

HEAT EX,AIR

Contact

[1-3] Contact

RCK301A501A

HEAT EXCH

Contact

[2-3] Contact

RCK321A551

PIPE

Contact

[3] Contact

RCK315B508

CAPILLARY

Contact

[4] In Stock

AHT201A156A

RM5465GAE1T

Notes: RM5465GAE1, ***COMPRESSORS CANNOT BE RETURNED***

[5] Contact

RCK116A002

B/K(VALVE)

Contact

[6] In Stock

RCK381A501

SERVICE V

Notes: LIQ. Show Image

[7] In Stock

RCK381A502

SERVICE V

Notes: GAS Show Image

[8] Contact

RCD325A700

PIPE,SHELL

Contact

[9] Contact

RCK325A501

MUFFLER

Contact

[10] In Stock

SSA382C054

4 WAY VAL

Notes: 4 WAY VAVLE Show Image

[11] In Stock

RCD382F007Y

SOLENOID

Notes: 20S, SOLENOID COIL FOR 4-WAY VALVE - 20S Show Image

[12] In Stock

SSA554B056

REACTOR

Notes: LOWER Show Image

[13] In Stock

SSA554B057

REACTOR

Notes: UPPER Show Image

[14] Out of Stock

RCK154D501A

INSULATION

Notes: SIDE

[15] Out of Stock

RCH154D305

INSULATION

Notes: UPPER

[16] Out of Stock

RCK154D504

INSULATION

Notes: LOWER

[17] Out of Stock

RWC006A001F

PWB SET

Substitute: OUT OF PRODUCTION Notes: Replaces RCK505A520

[18] In Stock

SSA561B675

BLOCK,TERMI

Show Image

[19] In Stock

SSA564A047B

FUSE

Notes: Fuse 15A Show Image

[20] In Stock

SSA564B044

HOLDER, FUSE

Show Image

[21] In Stock

SSA552F383

CAPACITOR

Notes: 40 mf, 40MF Show Image

[22] In Stock

RCK551A500

SENSOR ASSY

Notes: INCL.SENSOR(TH1,TH2,TH3) Show Image

[23] Out of Stock

SSA937C027

CLIP

Notes: FOR TH3

[24] In Stock

RKF941F002

SPRING

Notes: LENGTH 2.8CM Show Image

[25] In Stock

AHA932C002

GASKET

[26] In Stock

AHA947K002

COVER

[27] In Stock

SSA914C016

NUT

Notes: 1pc Show Image

[28] In Stock

SSA914C013A

NUT,FLANGE

Notes: 1pc Show Image

[29] In Stock

SSA941C241

CUSION

Show Image

[30] Contact

RCG504A003D

HARNESS

Contact

Notes: FOR COMP.

[31] Contact

RSA011F282AR

LABEL,MODEL NAME

Contact

SKU: SRC25ZAA HEAT EXCH. AND CONTROL Category: Uncategorised
