SRC208HENF-A HEAT EXCH. AND CONTROL

Name: SRC208HENF-A HEAT EXCH. AND CONTROL
SKU: SRC208HENF-A HEAT EXCH. AND CONTROL
Availability: InStock

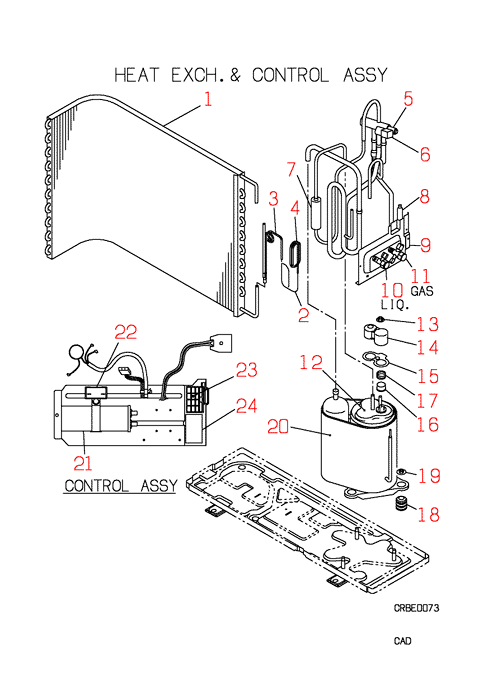

SRC208HENF-A HEAT EXCH. AND CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact

RCD311A701

HEAT,EX,AIR

Contact

[1-4] Contact

RCD301A704

HEAT EXCH

Contact

[2] Contact

RCD315B725

CAPILLARY

Contact

Notes: ! D1.3XD2.5 L500

[2-4] Contact

RCD304A715

PIPING

Contact

[3] Contact

RCD315B726

CAPILLARY,SUB

Contact

Notes: ! D2.6XD4.0 L300

[4] Contact

RCD315B727

CAPILLARY,SUB

Contact

Notes: ! D2.6XD4.0 L300

[5] Out of Stock

SSA382C032

VALVE 4WAY

[6] In Stock

SSA382F414

COIL SOLENO

Notes: SV, 240V Show Image

[7] Contact

RCD325A700

PIPE,SHELL

Contact

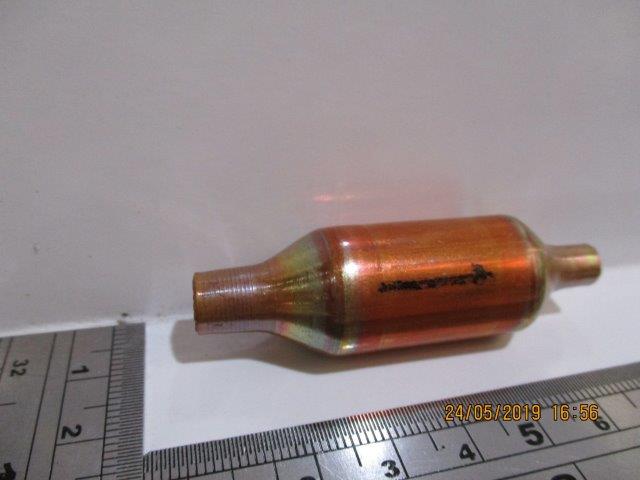

[8] In Stock

SSA357A005J

STRAINER

Show Image

[9] Contact

RCD116A702B

BRACKET V

Contact

[10] Contact

RCD381A710

SERVICE VAL

Contact

Notes: LIQ.

[11] Out of Stock

RCD381A712

SERVICE VAL

Notes: GAS

[12] Out of Stock

AHT201A190NA

RM5485GNE2

Substitute: OUT OF PRODUCTION Notes: RM5485GNE2 1PHASE 22

[13] In Stock

SSA914C016

NUT

Notes: 1pc Show Image

[14] In Stock

AHA947K002

COVER

[15] In Stock

AHA932C002

GASKET

[16] In Stock

ASA533B150

PROTECTOR

Notes: 51C Show Image

[17] In Stock

AHA941D003

SPRING (PROTECTOR)

Show Image

[18] Contact

SSA941C177B

CUSHION RUB

Contact

Substitute: SSA941C177

[19] In Stock

SSA914C013A

NUT,FLANGE

Notes: 1pc Show Image

[20] Contact

RCD151C706B

INSULATION

Contact

[21] In Stock

SSA552A447H

CAPACITOR

Notes: CC Show Image

[22] In Stock

SSA552A153

CAPACITOR,R

Notes: 1.6MF 460VAC Show Image

[23] In Stock

SSA561B670

BLOCK,TERMI

Notes: T2 Show Image

[24] Contact

RWC011G043B

LABEL,WIRING

Contact
