SRC208CENF-A HEAT EXCH. AND CONTROL

Name: SRC208CENF-A HEAT EXCH. AND CONTROL
SKU: SRC208CENF-A HEAT EXCH. AND CONTROL
Availability: InStock

SRC208CENF-A HEAT EXCH. AND CONTROL

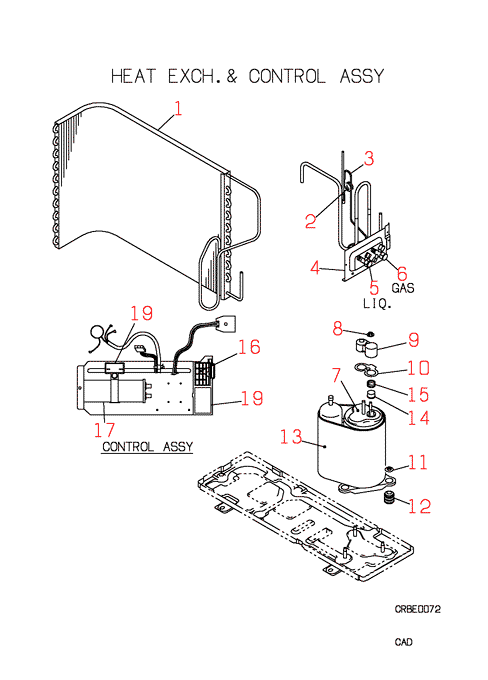

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact

RCD301A706

HEAT EXCH

Contact

[2] Contact

RCD315B729A

CAPILLARY

Contact

Notes: ! D1.2XD2.5 L700

[2-3] Contact

RCD315B721C

CAPILLARY A

Contact

[3] Contact

RCD315B723

CAPILARY

Contact

Notes: ! D2.6XD4.0 L300

[4] Contact

RCD116A702B

BRACKET V

Contact

[5] Contact

RCD381A711

SERVICE V

Contact

Notes: LIQ.

[6] In Stock

RCG381A703

SERVICE V

Notes: GAS Show Image

[7] Out of Stock

AHT201A160ND

RM5470GNE5

Notes: RM5470GNE5 1PHASE 10, ***COMPRESSORS CANNOT BE RETURNED***

[8] In Stock

SSA914C016

NUT

Notes: 1pc Show Image

[9] In Stock

AHA947K002

COVER

[10] In Stock

AHA932C002

GASKET

[11] In Stock

SSA914C013A

NUT,FLANGE

Notes: 1pc Show Image

[12] Contact

SSA941C177B

CUSHION RUB

Contact

Substitute: SSA941C177

[13] Contact

RCD151C706A

INSULATION

Contact

[14] Out of Stock

ASA533B106

O,C,R

Notes: 51C

[15] In Stock

AHA941D003

SPRING (PROTECTOR)

Show Image

[16] Contact

SSA561B669

BLOCK,TERMI

Contact

[17] Out of Stock

SSA552A251

CAPACITOR

Notes: CC

[18] In Stock

SSA552A153

CAPACITOR,R

Notes: 1.6MF 460VAC Show Image

[19] Contact

RWC011G032B

LABEL,WIRING

Contact

SKU: SRC208CENF-A HEAT EXCH. AND CONTROL Category: Uncategorised
