SRC13CFV HEAT EXCH. AND CONTROL
PRINT
SRC13CFV HEAT EXCH. AND CONTROL
SRC13CFV HEAT EXCH. AND CONTROL
Parts List
Key:
Instock.
Nilstock.
Contact MRE.

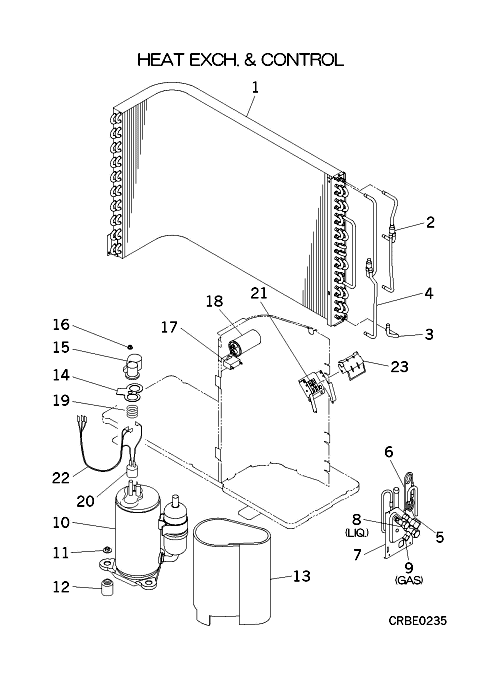

Check the parts position number [ ] matching with the drawing.
Login
to view prices.
[1-4]
Contact
RCS301A101
HEAT EXCH ASSY(AIR
Contact
[2]
Contact
RCS321A054
PIPE ASSY
Contact
Notes:
!
[3]
Contact
RCS321A053
PIPE
Contact
Notes:
!
[4]
Contact
RCS321A055
PIPE ASSY
Contact
Notes:
!
[5]
Contact
RCS315B007
CAPILLARY
Contact
Notes:
!
[5-6]
Contact
RCS304A005
PIPING ASSY
Contact
Notes:
!
[6]
Contact
RCS315B004
CAPILLARY,SUB
Contact
Notes:
!
[7]
In Stock
RCS116A004
BRACKET,VALVE
[8]
Out of Stock

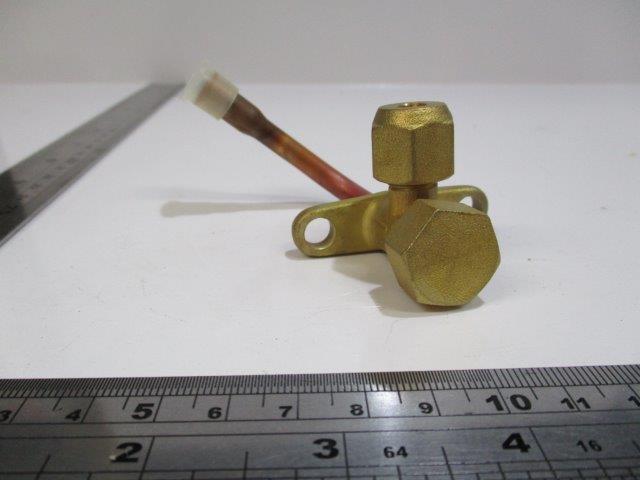

RCS381A001
VALVE,SERVICE(1/4"
Substitute:
OUT OF PRODUCTION
Notes:
LIQ., LIQ.‚ - 1/4 INCH
Show Image
[9]
Out of Stock

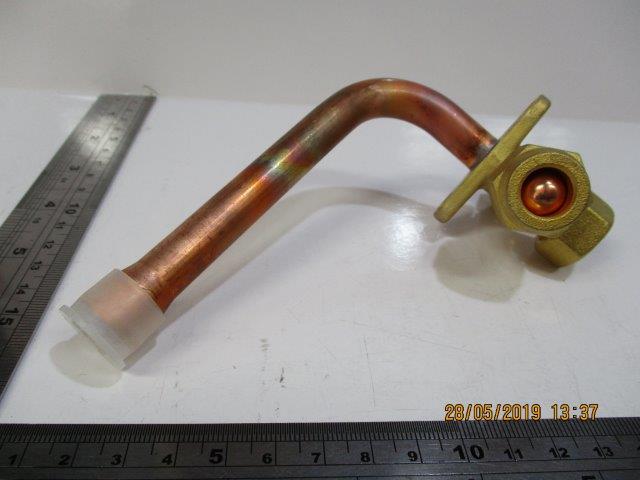

RCS381A003
VALVE,SERVICE(1/2"
Substitute:
OUT OF PRODUCTION
Notes:
GAS
Show Image
[10]
Out of Stock
RSA201A017
COMPRESSOR ASSY
Substitute:
OUT OF PRODUCTION
Notes:
***COMPRESSORS CANNOT BE RETURNED***
[11]
In Stock
SSA914C013A
NUT,FLANGE
Notes:
1pc
Show Image
[12]
Contact
RSA941C003
CUSHION,RUBBER
Contact
[13]
Contact
RCS154D002
INSULATION,COMP
Contact
[14]
Contact
RSA932C005
GASKET,COVER
Contact
[15]
Contact
RSA947K006
COVER,TERMINAL
Contact
[16]
In Stock
SSA552A842A
CAPACITOR,RUNNING
Notes:
CFI 2.5MF 450VAC, CFO 2.5MF 450VAC
Show Image
[17]
Out of Stock
SSA552A843B
CAPACITOR,RUNNING
Substitute:
SSA552A178K
Notes:
CFO 30MF 400VAC
Show Image
[18]
Out of Stock
AHA941D003
SPRING (PROTECTOR)
Substitute:
RM80088
Show Image
[19]
Contact
RSA533B005
PROTECTOR,MOTOR
Contact
[20]
Contact
SSA561B669
BLOCK,TERMI
Contact
[21]
In Stock

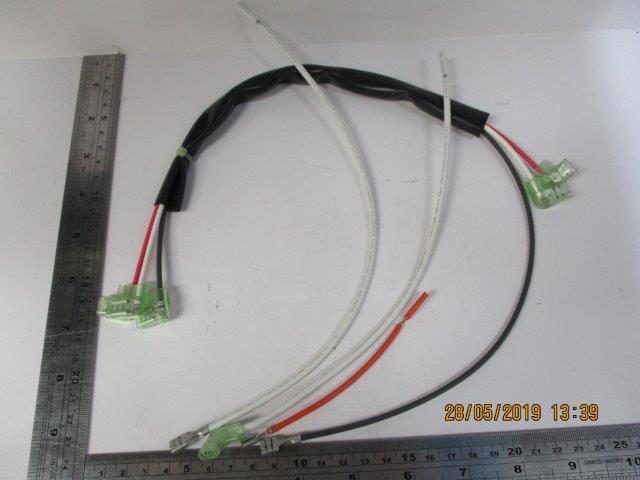

RCS504A001
WIRING ASSY
Notes:
FOR COMP.
Show Image
[22]
Contact
RCS142A500
COVER(TB)
Contact
[23]
Contact
RCS011F002A
LABEL,MODEL NAME
Contact
Notes:
!
