SRC10CFVA HEAT EXCH. AND CONTROL

Name: SRC10CFVA HEAT EXCH. AND CONTROL
SKU: SRC10CFVA HEAT EXCH. AND CONTROL
Availability: InStock

SRC10CFVA HEAT EXCH. AND CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

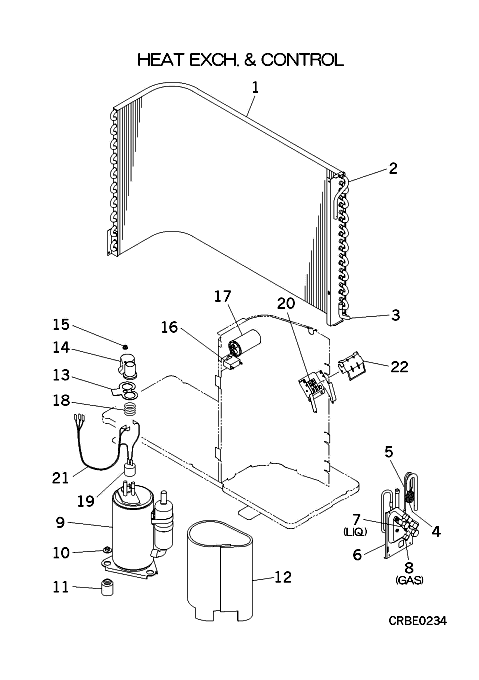

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-3] Contact

RCS301A001B

HEAT EXCH ASSY(AIR

Contact

[2] Contact

RCP321A035A

PIPE

Contact

Notes: !

[3] Contact

RCS321A003A

PIPE

Contact

Notes: !

[4] Contact

RCS315B001

CAPILLARY

Contact

Notes: !

[4-5] Contact

RCS304A002

PIPING ASSY

Contact

Notes: !

[5] Contact

RCS315B002

CAPILLARY,SUB

Contact

Notes: !

[6] In Stock

RCS116A004

BRACKET,VALVE

[7] In Stock

RCS381A001

VALVE,SERVICE(1/4"

Notes: LIQ., LIQ.‚ - 1/4 INCH Show Image

[8] In Stock

RCS381A002

VALVE,SERVICE(3/8"

Notes: GAS., GAS Show Image

[9] In Stock

RSA201A018

COMPRESSOR ASSY

Notes: ***COMPRESSORS CANNOT BE RETURNED***

[10] In Stock

SSA914C013A

NUT,FLANGE

Notes: 1pc Show Image

[11] Contact

RSA941C003

CUSHION,RUBBER

Contact

[12] Contact

RCS154D001

INSULATION,COMP

Contact

[13] Contact

RSA932C005

GASKET,COVER

Contact

[14] Contact

RSA947K006

COVER,TERMINAL

Contact

[16] In Stock

SSA552A497B

CAPA. RUN

Notes: RUNNING CAPACITOR Show Image

[17] In Stock

SSA552A843A

CAPACITOR,RUNNING

Notes: CC 25MF 370VAC Show Image

[18] In Stock

AHA941D003

SPRING (PROTECTOR)

Show Image

[19] In Stock

RSA533B004

PROTECTOR,MOTOR

Show Image

[20] Contact

SSA561B669

BLOCK,TERMI

Contact

[21] In Stock

RCS504A001

WIRING ASSY

Notes: FOR COMP. Show Image

[22] Contact

RCS142A500

COVER(TB)

Contact

[23] Contact

RCS011F002

LABEL,MODEL NAME

Contact

Notes: !
