SKM25ZF-S HEAT EXCH. AND CONTROL

Name: SKM25ZF-S HEAT EXCH. AND CONTROL
SKU: SKM25ZF-S HEAT EXCH. AND CONTROL
Availability: InStock

SKM25ZF-S HEAT EXCH. AND CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

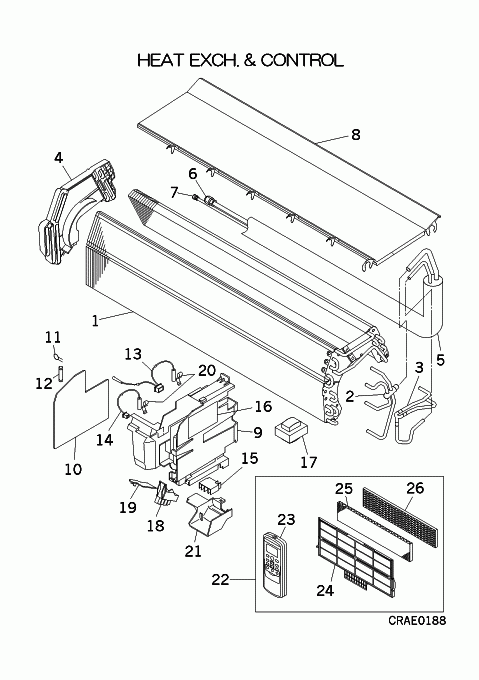

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-8] In Stock

RKV301A500D

HEAT EXCH A

Notes: Indoor Heat exchanger coil

[2] Contact

RKV315D501A

HEADER ASSY

Contact

[3] Contact

RKV321A507

PIPE ASSY

Contact

[4] Contact

RKV129A001

BRACKET(L)

Contact

[5-7] Contact

RKV321A512A

PIPE ASSY

Contact

[6] Contact

SSA323F082

UNION

Contact

Notes: GAS

[7] Contact

SSA323F082A

UNION(SLD)

Contact

Notes: LIQ.

[8] Contact

RKV129A004

PLATE

Contact

[9] In Stock

RKV142A500

BOX,CONTROL

Show Image

[10-12] Out of Stock

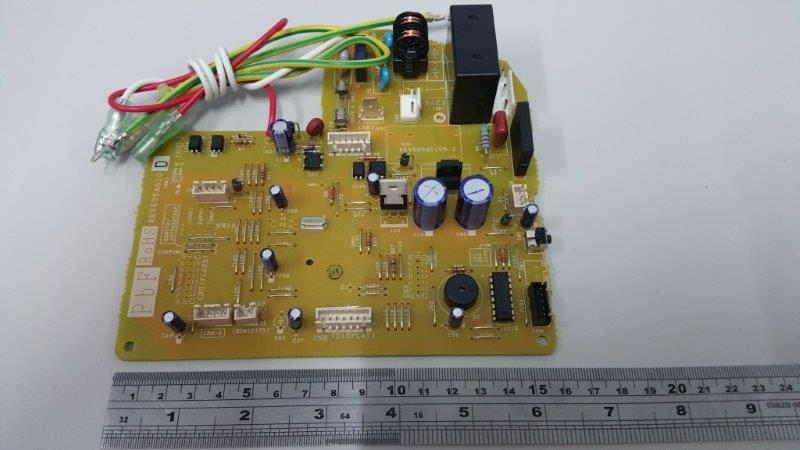

RKV505A510D

PWB ASSY

Substitute: OUT OF PRODUCTION Show Image

[11] Contact

SSA555B041B

VARISTOR

Contact

Notes: Z

[12] In Stock

SSA564A132

FUSE(CURRENT)

Notes: 3.15A Show Image

[13] In Stock

SSA551A163F

SENSOR

Notes: INCL SENSOR ROOM TEMP and HEAT EXCH, INCL.SENSOR (ROOM TEMP.& HEAT EXCH.) Show Image

[14] In Stock

SSA551A194

SENSOR

Notes: HEAT EXCH.SENSOR, HEAT/ LENGTH 41CM Show Image

[15] In Stock

SSA561B702B

BLOCK,TERMINAL

Notes: T2 Show Image

[16] Contact

RKV011G501

LABEL,WIRING

Contact

Notes: !

[17] In Stock

SSA554A441

TRANSFORMER

Show Image

[18] Out of Stock

RKV129A006

HOLDER,DISP

Substitute: OUT OF PRODUCTION

[18-19] Contact

RKV503A510

DISPLAY ASSY

Contact

[19] In Stock

RKV505A511

PWB DISPLAY

Show Image

[20] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR THI-R Show Image

[21] In Stock

RKV142A501

COVER

Show Image

[22] Contact

RKV008A500A

PARTS,STANDARD

Contact

Notes: !

[23] In Stock

RMA502A001F

REMOCON ASSY

Notes: RKR032A002 remote control holder Show Image

[24] In Stock

RKT129A009

HOLDER

Notes: 1pc ONLY Show Image

[25] In Stock

RKT437A801D

FILTER,CLEAN(BIO)

Notes: 1pc ONLY, ALLERGEN FILTER. For ZT models the optional Photocatalytic filter is RKT437A005. Show Image

[26] In Stock

RKT437A005

FILTER,CLEAN

Notes: 1pc ONLY, PHOTO-CATALYTIC / DEODORIZING FILTER - triangular honeycomb shape

[27] Contact

RWA011F007B

LABEL,MODEL NAME

Contact

SKU: SKM25ZF-S HEAT EXCH. AND CONTROL Category: Uncategorised
