SCT403HENF-A HEAT EXCH. AND CONTROL

Name: SCT403HENF-A HEAT EXCH. AND CONTROL
SKU: SCT403HENF-A HEAT EXCH. AND CONTROL
Availability: InStock

SCT403HENF-A HEAT EXCH. AND CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

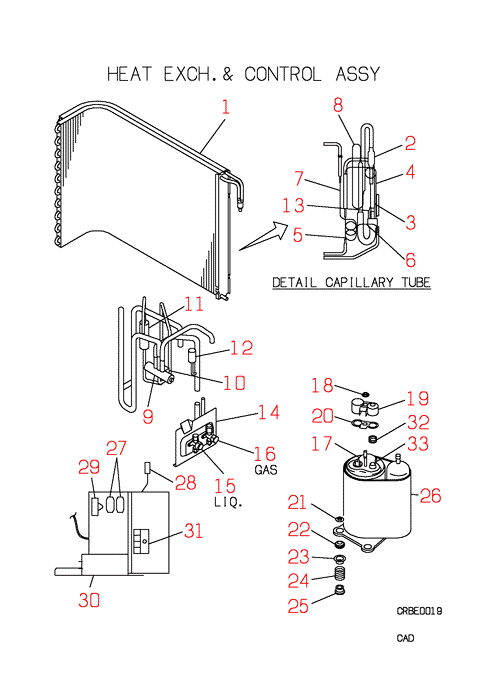

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-8] Contact

RCC301A010C

HEAT EXCH ASSY(AIR

Contact

[2] Out of Stock

SSA357A007

STRAINER

Substitute: ZZ60573

[2-8] Contact

RCC304A030B

PIPING ASSY(CAPI)

Contact

[3] Out of Stock

SSA385A052

VALVE,CHECK

Show Image

[4] Contact

RCC315B024

CAPILLARY TUBE

Contact

Notes: ! D1.5XD2.5 L350

[5] Contact

RCC315B025

CAPILLARY TUBE

Contact

Notes: ! D1.5XD2.5 L300

[6] Contact

RCC315B026

CAPILLARY TUBE

Contact

Notes: ! D1.5XD2.5 L300

[7] Contact

RCC315B027

CAPILLARY TUBE

Contact

Notes: ! D1.5XD2.5 L250

[8] Contact

RCC315B044

CAPILLARY TUBE

Contact

Notes: ! D1.8XD3.2 L300

[9] In Stock

SSA382C014

VALVE 4WAY

Show Image

[10] In Stock

SSA382F008F

COIL S 150O

Notes: 20S Show Image

[11] Contact

SSA325A001AY

MUFFLER

Contact

[12] Out of Stock

RCC532A001A

SWITCH

Substitute: OUT OF PRODUCTION

[13] Contact

RCC315B023

CAPILL,ASY

Contact

Notes: INCL. D0.8XD2.0 L1000

[14] Contact

RCC116A003N

BRAKET VALV

Contact

[15] Out of Stock

RCC381A009

VALVE SERVI

Notes: GAS

[16] In Stock

RCC381A010

VALVE SERVI

Notes: LIQ. Show Image

[17] Out of Stock

AHM201A351NC

COMPRESSOR ASSY

Notes: RM5518GNHE4 1PHASE 220/240V 50HZ, ***COMPRESSORS CANNOT BE RETURNED***

[18] In Stock

SSA914C016

NUT

Notes: 1pc Show Image

[19] Out of Stock

AHL947K001

COVER,TERMINAL

Substitute: OUT OF PRODUCTION

[20] In Stock

AHL932C002

GASKET,COVER

Show Image

[21] In Stock

SSA914C033

NUT

Notes: 1pc

[22] Contact

SSA941C133

CUSHION RUB

Contact

[23] Contact

SSA935C010

COLLER

Contact

Substitute: RM80170 Notes: 1pc ONLY, ***SOLD INDIVIDUALLY***

[24] Contact

AHA941D002A

SPRING(MOUNT)

Contact

[25] Contact

SSA941C012

CUSHION

Contact

Substitute: RM80168

[26] Contact

RCC151D010

INSULATION ASSY,CO

Contact

[27] In Stock

SSA521F079

RELAY

Notes: 52FO,52XO, SOLD INDIVIDUALLY - SOME UNITS HAVE MULTIPLE Show Image

[28] In Stock

SSA531D013A

SWITCH THER

Notes: 23DH Show Image

[29] In Stock

SSA552A862C

CAPACITOR,R

Notes: CFO 3MF 400V Show Image

[30] Contact

SSA552A130

CAPACITOR

Contact

Notes: CC

[31] In Stock

SSA561C007

TERMINAL

Show Image

[32] Out of Stock

AHL941D003

SPRING(PROTECTOR)

[33] Contact

ASA533B158

PROTECTOR,MOTOR

Contact

Notes: 51C

SKU: SCT403HENF-A HEAT EXCH. AND CONTROL Category: Uncategorised
