SCM80ZA HEAT EXCH. AND CONTROL

Name: SCM80ZA HEAT EXCH. AND CONTROL
SKU: SCM80ZA HEAT EXCH. AND CONTROL
Availability: InStock

SCM80ZA HEAT EXCH. AND CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

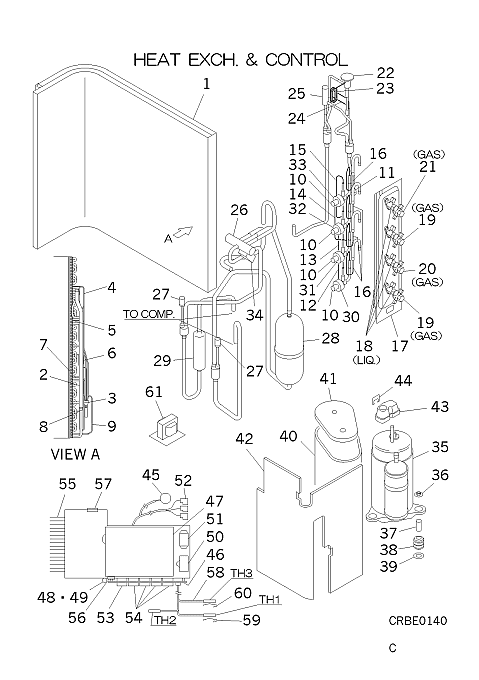

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact

RPC311A700

HEAT EXCH

Contact

[1-9] Contact

RPC301A700

HEAT EXCH

Contact

[2] Contact

RPC315D700

HEADER

Contact

[3] Contact

SSA315A252K

DISTRIBUTOR

Contact

[3-9] Contact

RPC315A700

DISTRIBUTOR

Contact

[4] Contact

RPC315B705

CAPILLARY(1)

Contact

Notes: !D2.0XD3.2 L800

[5] Contact

RPC315B706

CAPILLARY(2)

Contact

Notes: !D2.0XD3.2 L650

[6] Contact

RPC315B707

CAPILLARY(3)

Contact

Notes: !D2.0XD3.2 L400

[7] Contact

RPC315B708

CAPILLARY(4)

Contact

Notes: !D2.0XD3.2 L650

[8] Contact

RPC315B709

CAPILLARY(5)

Contact

Notes: !D2.0XD3.2 L400

[9] Contact

RPC315B710

CAPILLARY(6)

Contact

Notes: !D2.0XD3.2 L300

[10] In Stock

SSA387F017D

EXP V

Notes: FEEDS INDOOR UNITS

[10-16] Contact

RPC304A701

PIPING ASSY

Contact

[11] Out of Stock

SSA315A252A

DISTRIBUTOR

[11-15] Contact

RPC315A701

DISTRIBUTOR

Contact

[12] Contact

RPC315B701

CAPILLARY(1)

Contact

Notes: !D3.0XD4.0 L400

[13] Contact

RPC315B702

CAPILLARY(2)

Contact

Notes: !D3.0XD4.0 L400

[14] Contact

RPC315B703

CAPILLARY(3)

Contact

Notes: !D3.0XD4.0 L400

[15] Contact

RPC315B704

CAPILLARY(4)

Contact

Notes: !D3.0XD4.0 L420

[16] Contact

RPC315B716

CAPILLARY

Contact

Notes: !D2.6XD4.0 L250

[17] Contact

RPC116A701

BRACKET,VAL

Contact

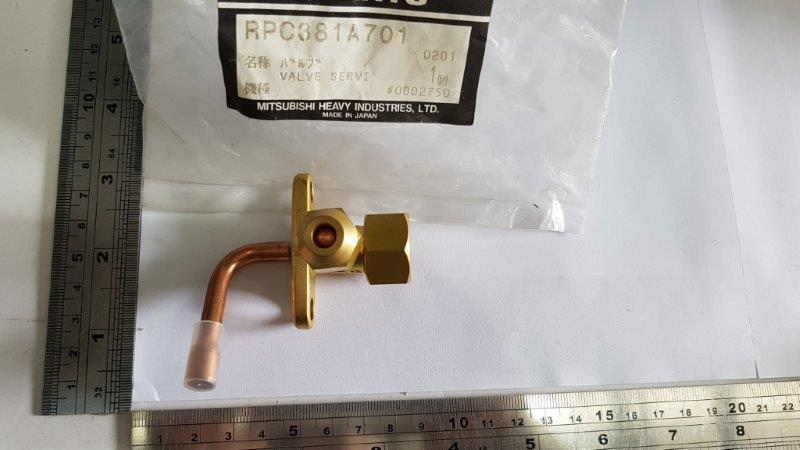

[18] Out of Stock

RPC381A701

VALVE SERVI

Substitute: OUT OF PRODUCTION Notes: LIQ., liquid service valve - OUT OF PRODUCTION Show Image

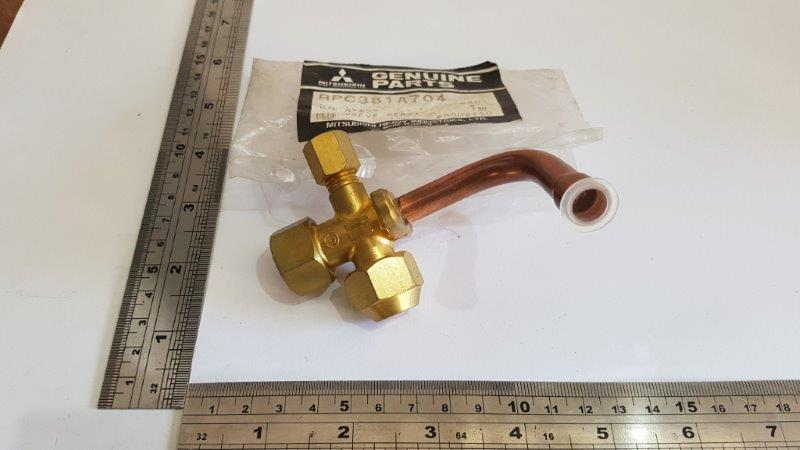

[19] In Stock

RPC381A704

VALVE SERVI

Notes: GAS, GAS SERVICE VALVE Show Image

[20] Out of Stock

RPC381A702

VALVE SERVI

Substitute: OUT OF PRODUCTION Notes: GAS

[21] Out of Stock

RPC381A703

VALVE SERVI

Substitute: OUT OF PRODUCTION Notes: GAS

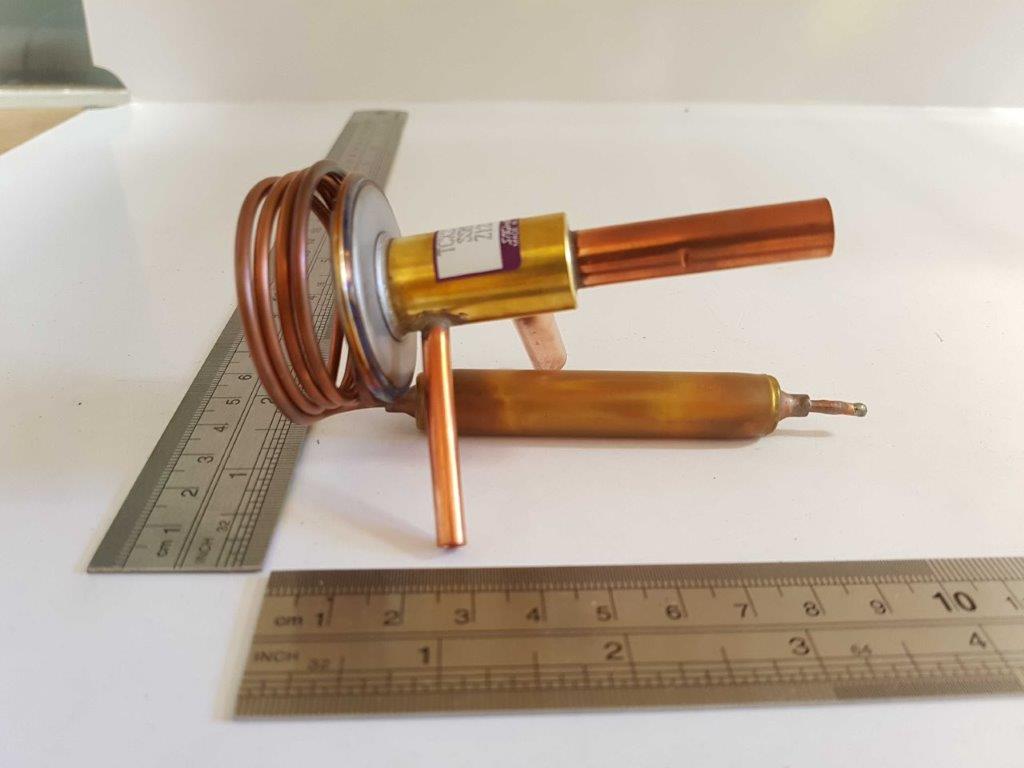

[22] In Stock

SSA387A051

EXP.VALVE

Notes: OUTDOOR CONTROL VALVE Show Image

[22-25] In Stock

RPC304A702

PIPING ASSY

[23] Contact

RPC315B711

CAPILLARY

Contact

Notes: !D1.5XD2.5 L350

[24] Contact

RPC315B717

CAPILLARY

Contact

Notes: !D2.0XD3.2 L720

[25] Out of Stock

SSA383D002D

VALVE DPR

Substitute: OUT OF PRODUCTION

[26] In Stock

SSA382C057

VALVE 4WAY

Notes: 20S Show Image

[27] Contact

RPC327B001B

SERVICE V

Contact

[28] Contact

SSA351A189

ACCUMLATOR

Contact

[29] Contact

SSA325A001R

MUFFLER

Contact

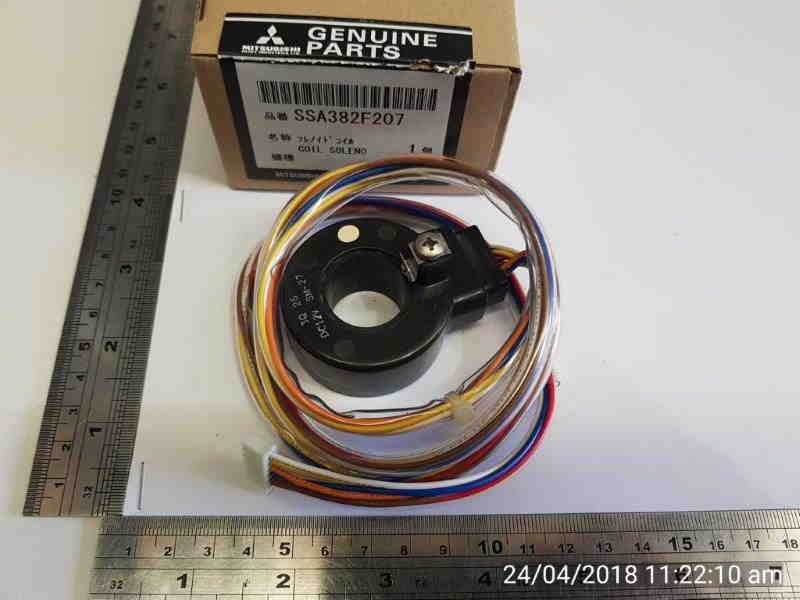

[30] In Stock

SSA382F207

COIL SOLENO

Notes: FOR EVA Show Image

[31] In Stock

SSA382F207

COIL SOLENO

Notes: FOR EVB Show Image

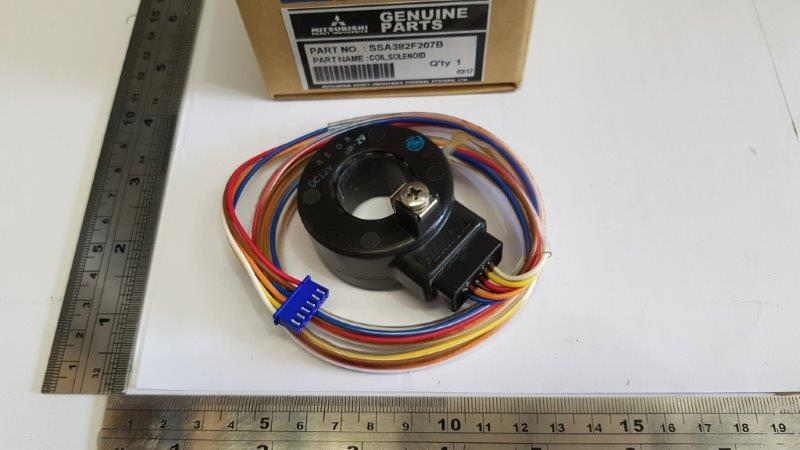

[32] In Stock

SSA382F207B

COIL SOLENOID

Notes: FOR EVC, EEV-C SOLENOID COIL Show Image

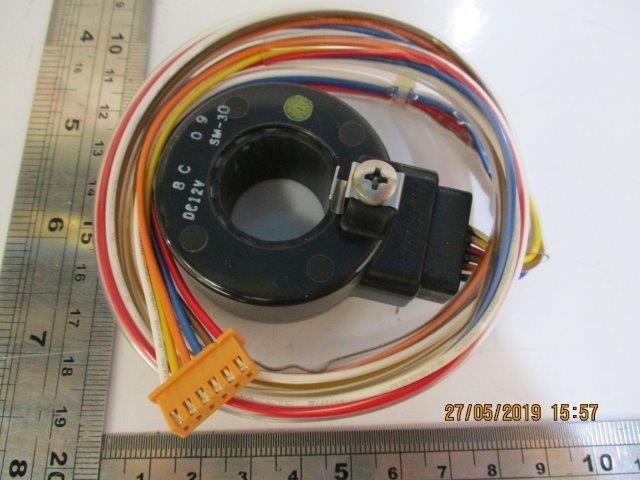

[33] In Stock

SSA382F207C

COIL SOLENO

Notes: FOR EVD Show Image

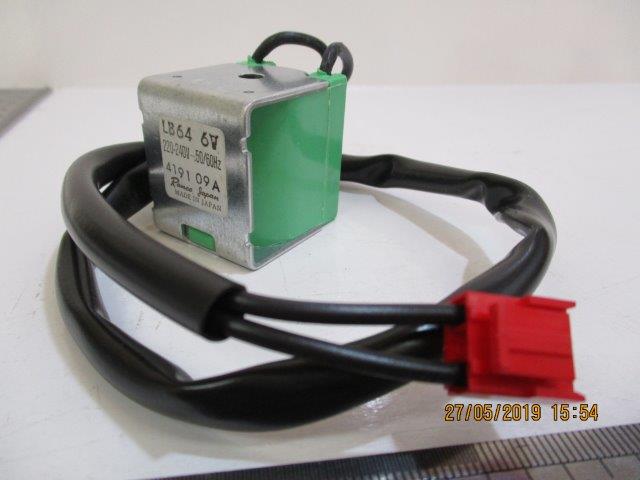

[34] In Stock

RPC382F700

SOLENOID C

Notes: FOR 20S Show Image

[35] Out of Stock

RPC201A700A

COMPRESSOR

Substitute: OUT OF PRODUCTION Notes: ***COMPRESSORS CANNOT BE RETURNED***

[36] In Stock

SSA914C013A

NUT,FLANGE

Notes: 1pc Show Image

[37] Contact

RPC941C701

BUSH

Contact

[38] Contact

RPC941C700

CUSHION

Contact

[39] Contact

RPC915B700

WASHER

Contact

Notes: 1pc ONLY

[40] Contact

RPC154D700

INDULATION

Contact

[41] Out of Stock

RPC154D701

INSULATION

[42] Contact

RPC154D703

INSULATION

Contact

[43] Out of Stock

RPC947K700

C0VER,TERMI

[44] Contact

RPC947H700

BUSH

Contact

[45] In Stock

RPC533B700

PROTECTOR

Notes: 51C, LENGTH 64.5CM

[46] Out of Stock

RPC505A700

PWB

Substitute: OUT OF PRODUCTION Notes: PWB1, (LED LIGHTS) CPU

[47] Out of Stock

RPC505A701

PWB

Substitute: OUT OF PRODUCTION Notes: PWB3, POWER

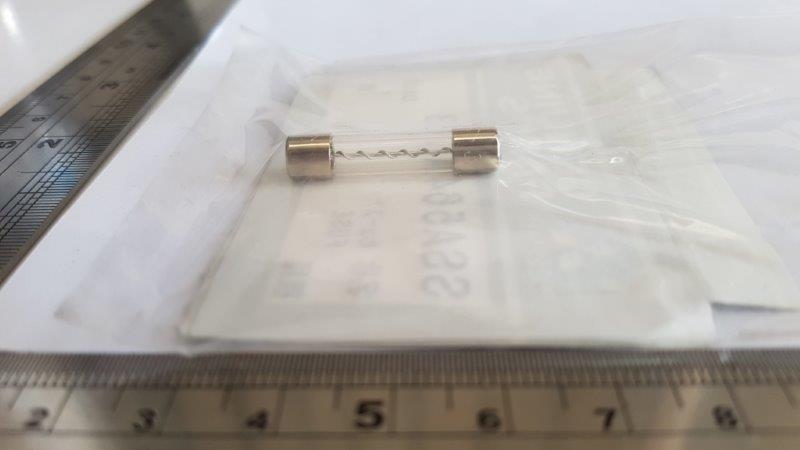

[48] Out of Stock

SSA564A103

FUSE

Notes: 30A Show Image

[49] In Stock

SSA564B044

HOLDER, FUSE

Show Image

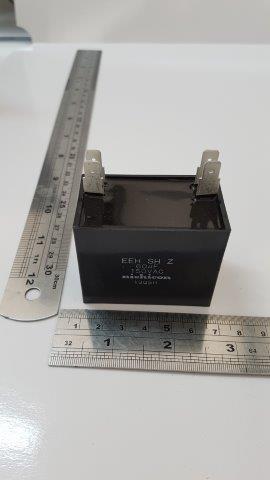

[50] Out of Stock

SSA552F421A

CAPACITOR

Notes: C2,C5‚ - 60MF - 150VAC Show Image

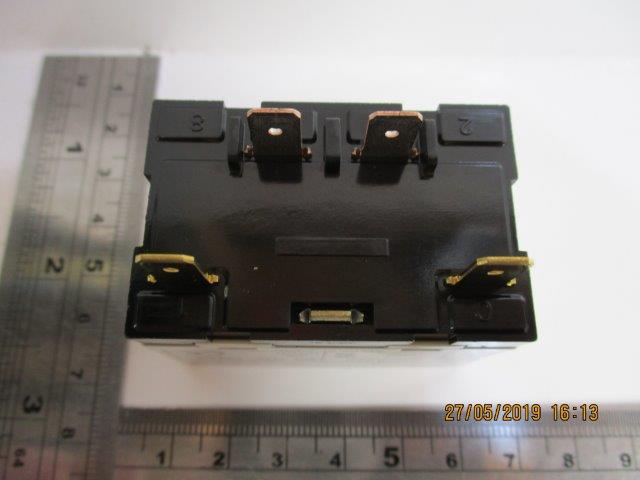

[51] In Stock

SSA521F083

RELAY

Notes: 52X5-2 Show Image

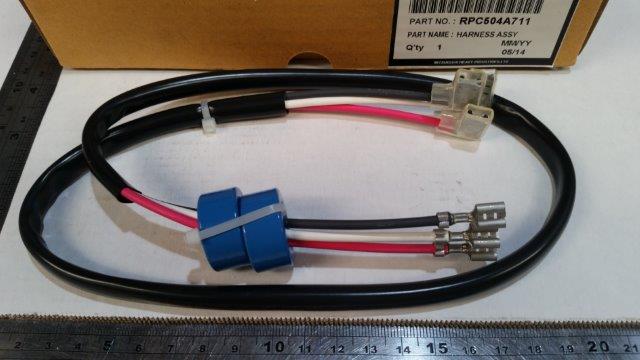

[52] In Stock

RPC504A711

HARNESS

Notes: FOR COMP. Show Image

[53] In Stock

SSA561B665

BLOCK TERMI

Notes: T1 Show Image

[54] In Stock

SSA561B675A

BLOCK,TERMI

Notes: TB Show Image

[55] Out of Stock

RPC501A701

CONTROL ASSY

Substitute: OUT OF PRODUCTION Notes: PWB ASSY(RAD.) - POWER TRANSISTOR - INVERTER

[56] Contact

SSA947A040

GROMMET

Contact

Notes: D20

[57] Contact

SSA947B019

GROMMET

Contact

Notes: 16X8

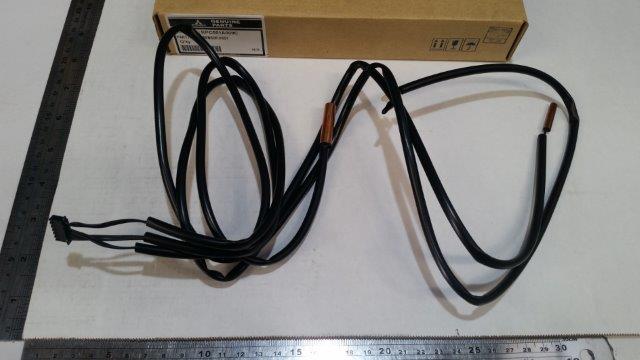

[58] Out of Stock

RPC551A009C

SENSER ASSY

Notes: TH1,TH2,TH3, INCLUDES DISCHARGE SENSOR - 3 sensors on the one sensor assembly Show Image

[59] In Stock

RKF941F002

SPRING

Notes: LENGTH 2.8CM Show Image

[60] In Stock

RCJ941F001

SPRING

Notes: LENGTH 2.5CM Show Image

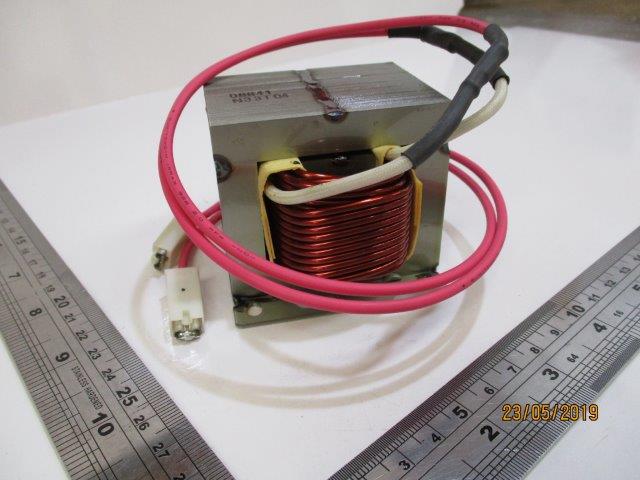

[61] In Stock

SSA554B060

REACTOR

Show Image

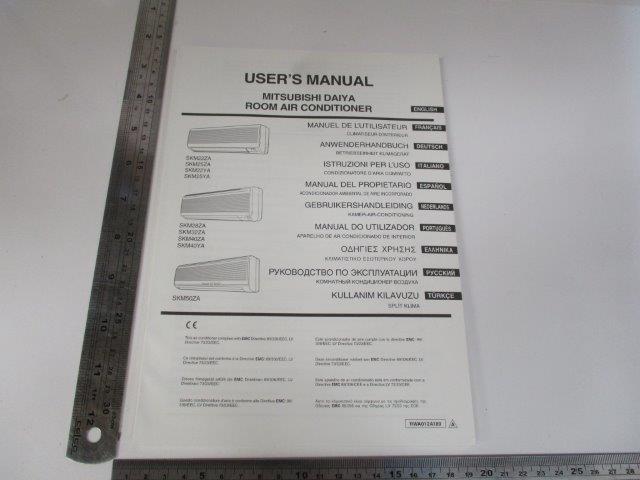

[62] In Stock

RWA012A189

INSTRUCTION

Show Image

[63] Contact

RPC011G700

LABEL,WIRING

Contact

[64] Contact

RSA011F292V

LABEL,MODEL NAME

Contact
