SCM68ZA HEAT EXCH. AND CONTROL

Name: SCM68ZA HEAT EXCH. AND CONTROL
SKU: SCM68ZA HEAT EXCH. AND CONTROL
Availability: InStock

SCM68ZA HEAT EXCH. AND CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

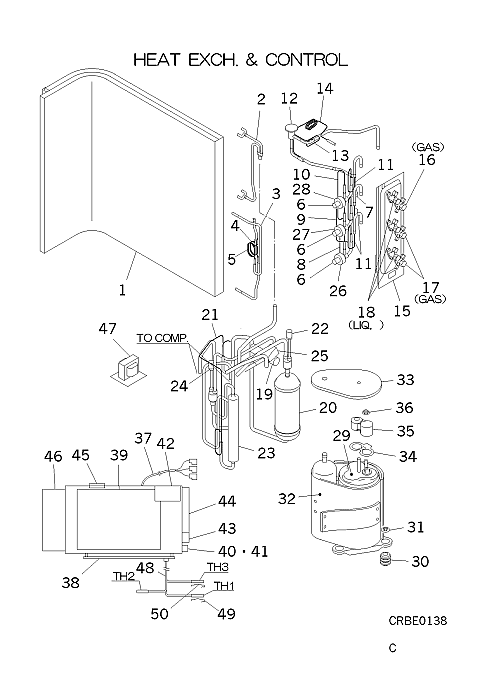

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact

RPC311A800

HEAT EXCH

Contact

[1-5] Contact

RPC301A800

HEAT EXCH

Contact

[2] Contact

RPC321A811

PIPING ASSY

Contact

[3-5] Contact

RPC304A804

PIPING ASSY

Contact

[4] Contact

RPC315B800

CAPILLARY

Contact

Notes: !D2.6XD4.0 L350

[5] Contact

RPC315B800A

CAPILLARY

Contact

Notes: !D2.6XD4.0 L350

[6] In Stock

SSA387F017D

EXP V

Notes: FEEDS INDOOR UNITS

[6-11] Contact

RPC304A807

PIPING

Contact

[7] In Stock

SSA315A252B

DISTRIBUTOR

Show Image

[7-10] Contact

RPC315A800

DISTRIBUTER

Contact

[8] Contact

RPC315B806

CAPILLARY(1)

Contact

Notes: !D3.0XD4.0 L400

[9] Contact

RPC315B807

CAPILLARY(2)

Contact

Notes: !D3.0XD4.0 L400

[10] Contact

RPC315B808

CAPILLARY(3)

Contact

Notes: !D3.0XD4.0 L400

[11] Contact

RPC315B811

CAPILLARY

Contact

[12] In Stock

SSA387A051

EXP.VALVE

Notes: OUTDOOR CONTROL VALVE Show Image

[12-14] Contact

RPC304A801

PIPING ASSY

Contact

[13] Contact

RPC315B801

CAPILLARY

Contact

Notes: !D1.3XD2.5 L300

[14] Contact

RPC315B812

CAPILLARY

Contact

Notes: !D2.0XD3.2 L600

[15] Contact

RWC116A033

BLACKET

Contact

[16] Out of Stock

RPC381A801

VALVE SERVI

Substitute: OUT OF PRODUCTION Notes: GAS

[17] Out of Stock

RPC381A802

VALVE SERVI

Substitute: OUT OF PRODUCTION Notes: GAS

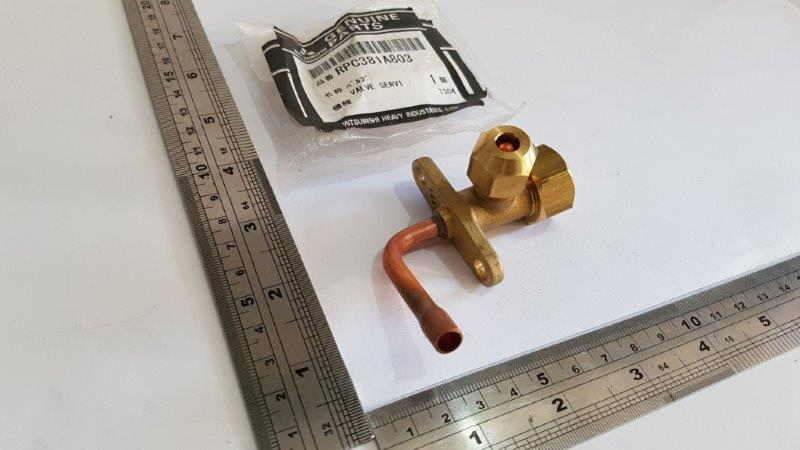

[18] In Stock

RPC381A803

VALVE SERVI

Notes: LIQ. Show Image

[19] Out of Stock

SSA382C073

4 WAY VAL

Substitute: OUT OF PRODUCTION Show Image

[20] Contact

SSA351A190

ACCUMULATOR

Contact

[20-22] Contact

RPC304A806

PIPING ASSY

Contact

[21] Contact

RPC315B805

CAPILLARY

Contact

Notes: !D1.0XD2.0 L1000

[22] Contact

RPC327B001B

SERVICE V

Contact

[23] Out of Stock

SSA325A023M

PLATE SHELL

[24] Contact

RPC327B001B

SERVICE V

Contact

[25] In Stock

RPC382F700A

COIL SOLENO

Notes: FOR 20S, 20s - 4WAY VALVE COIL

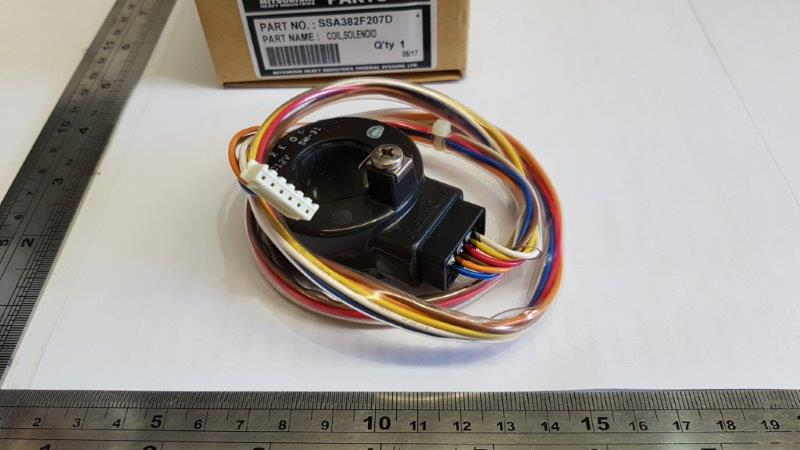

[26] Out of Stock

SSA382F207D

SOLENOID

Substitute: OUT OF PRODUCTION Notes: FOR EVA, EEV-A SOLENOID COIL Show Image

[27] In Stock

SSA382F207F

SOLENOID

Notes: FOR EVB, EEV-B SOLENOID COIL Show Image

[28] In Stock

SSA382F207B

COIL SOLENOID

Notes: FOR EVC, EEV-C SOLENOID COIL Show Image

[29] Out of Stock

AHT201A334AR

COMPRESSOR

Substitute: OUT OF PRODUCTION Notes: RM5516GA92 DAVID, RM5516GAE97. COMPRESSORS CANNOT BE RETURNED

[30] Out of Stock

SSA941C114A

CUSHION RUB

[31] In Stock

SSA914C033

NUT

Notes: 1pc

[32] Out of Stock

RPC154D800

INSULATION

[33] Contact

RPC154D805

INSULATION

Contact

[34] In Stock

AHA932C002

GASKET

[35] In Stock

AHA947K002

COVER

[36] In Stock

SSA914C016

NUT

Notes: 1pc Show Image

[37] Contact

RPC504A711A

HARNESS ASSY

Contact

Notes: FOR COMP.

[38] Out of Stock

RPC505A700D

PWB ASSY

Substitute: OUT OF PRODUCTION Notes: PWB1, CPU / MAIN - LED LIGHTS, OUT OF PRODUCTION

[39] In Stock

RPC505A701A

PWB

Notes: PWB3, POWER - CONTROLS FAN MOTOR. PLEASE NOTE THE OTHER PWBs ARE NO LONGER AVAILABLE Show Image

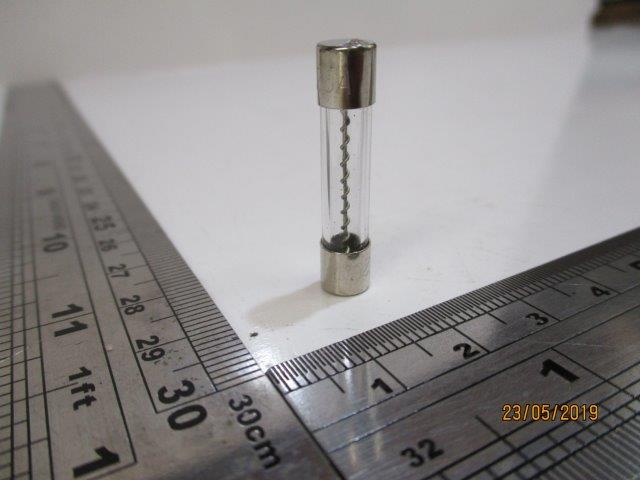

[40] In Stock

SSA564A047A

FUSE

Notes: 25A Show Image

[41] In Stock

SSA564B044

HOLDER, FUSE

Show Image

[42] Out of Stock

SSA552F421A

CAPACITOR

Notes: C2,C5‚ - 60MF - 150VAC Show Image

[43] In Stock

SSA561B665

BLOCK TERMI

Notes: T1 Show Image

[44] In Stock

SSA561B699

BLOCK TERMI

Notes: T2

[45] Contact

SSA947B019

GROMMET

Contact

Notes: 16X8

[46] Out of Stock

RPC501A801

CONTROL ASSY

Substitute: OUT OF PRODUCTION Notes: CONTROL ASSY (RAD.) - POWER TRANSISTOR / INVERTER. Some refer to as a PWB

[47] In Stock

SSA554B078

REACTOR

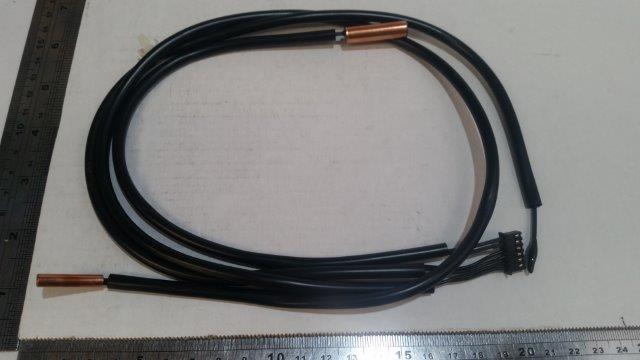

[48] In Stock

RPC551A009D

SENSOR

Notes: TH1,TH2,TH3 Show Image

[49] In Stock

RKF941F002

SPRING

Notes: LENGTH 2.8CM Show Image

[50] In Stock

RCJ941F001

SPRING

Notes: LENGTH 2.5CM Show Image

[51] In Stock

RWA012A189

INSTRUCTION

Show Image

[52] Contact

RPC011G800

LABEL,WIRING

Contact

[53] Contact

RSA011F377C

LABEL,MODEL NAME

Contact
