SCM60ZF-S HEAT EXCH. AND CONTROL

Name: SCM60ZF-S HEAT EXCH. AND CONTROL
SKU: SCM60ZF-S HEAT EXCH. AND CONTROL
Availability: InStock

SCM60ZF-S HEAT EXCH. AND CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

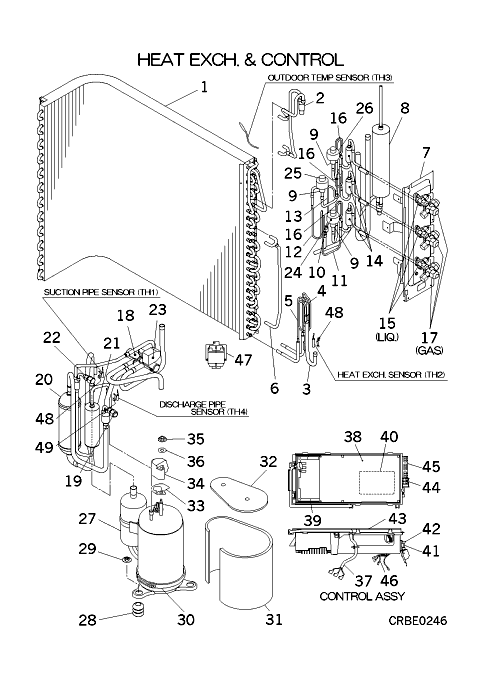

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-6] In Stock

RPC301A851

HEAT EXCH ASSY(AIR)

[2] Contact

RPC321A889

PIPING ASSY

Contact

Notes: !

[3-5] Contact

RPC321A888

PIPE ASSY

Contact

[4] Contact

RPC315B850

CAPILLARY

Contact

Notes: !D2.6XD4.0 L500

[5] Contact

RPC315B851

CAPILLARY

Contact

Notes: !D2.6XD4.0 L500

[6] Contact

RPC321A890

PIPE ASSY

Contact

Notes: !

[7] Contact

RPC116A861

BRACKET ASSY

Contact

[8] Contact

RPC352D853

RECEIVER ASSY

Contact

[9] In Stock

SSA387F051

VALVE,BODY(EXP)

Notes: EEV, 'BODY' ONLY. Does NOT include coil

[9-16] Contact

RPC304A860

PIPING ASSY(EXPAN)

Contact

[10] In Stock

SSA315A252B

DISTRIBUTOR

Show Image

[10-13] In Stock

RPC315A850

DISTRIBUTOR ASSY

Show Image

[11] Contact

RPC315B856

CAPILLARY,SUB(A)

Contact

Notes: !D2.6XD4.0 L300

[12] Contact

RPC315B857

CAPILLARY,SUB(B)

Contact

Notes: !D2.6XD4.0 L300

[13] Contact

RPC315B858

CAPILLARY,SUB(C)

Contact

Notes: !D2.6XD4.0 L300

[14] In Stock

SSA357A005A

STRAINER

Show Image

[15] In Stock

RPC381A852

VALVE,SERVICE(1/4"

Notes: LIQ. Show Image

[16] Contact

RCN315B001

CAPILLARY,SUB

Contact

Notes: !D2.6XD4.0 L300

[17] In Stock

RPC381A854

VALVE,SERVICE (3/8")

Notes: GAS Show Image

[18] In Stock

SSA382C068

4 WAY VALVE

Notes: 20S, 20S - REVERSING VALVE BODY - (NOT COIL) Show Image

[19] Contact

RPC327B850A

VALVE ASSY SERVICE

Contact

[20] In Stock

AHT351A001

ACCUMULATOR

Show Image

[21] Contact

RPC325A852

PIPE,SHELL

Contact

[22] Contact

RPC327B850A

VALVE ASSY SERVICE

Contact

[23] Out of Stock

RPC382F801

COIL ASSY,SOLENOID

Substitute: OUT OF PRODUCTION Notes: FOR 20S

[24] In Stock

SSA382F210C

COIL,SOLENOID

Notes: FOR EEV, FOR EEVA - 5 WIRES - WHITE PLUG/ LENGTH 56CM Show Image

[25] In Stock

SSA382F210D

COIL,SOLENOID

Notes: FOR EEVB, FOR EEVB - 5 WIRES - RED PLUG Show Image

[26] In Stock

SSA382F210F

COIL SOLENOID

Notes: FOR EEVC, EEVC - 5 wires

[27] In Stock

PCA201A048C

COMPRESSOR

Notes: TNB220FLBMT1, ***COMPRESSORS CANNOT BE RETURNED***

[28] Contact

PCA941C011

CUSHION RU

Contact

[29] In Stock

SSA914C033

NUT

Notes: 1pc

[30] Out of Stock

RPC541B001A

HEATER ASSY (CRANK)

Show Image

[31] Contact

RPC154D852

INSULATION,COMP

Contact

Notes: SIDE

[32] In Stock

RPC154D858

INSULATION,COMP(B)

Notes: UPPER Show Image

[33] In Stock

PCA932C005A

GASKET COVER

Show Image

[34] Out of Stock

PCA947K005

COVER TERM

Substitute: OUT OF PRODUCTION Show Image

[35] Contact

PCA914C001

NUT FLANG

Contact

Notes: 1pc

[36] Contact

PCA915H002

WASHER

Contact

Notes: 1pc ONLY

[37] In Stock

RPC504A887

WIRING ASSY

Notes: FOR COMPRESSOR Show Image

[38] In Stock

RPC505A860B

PWB ASSY MAIN

Notes: PWB1

[39] In Stock

RPC505A861C

PWB (POWER)

Notes: PWB2, ***THE PCB THIS PLUGS INTO IS NO LONGER AVAILABLE(EXCLUDES SCM40ZG-S,SCM60ZF-S,SCM80ZF-S). ***Controls the compressor. Aka INVERTER aka PWB2 aka IPM (HEAT SINK ATTACHED). Image is of the underside of PWB. Show Image

[40] In Stock

RPC505A862

PWB ASSY (CAPACITOR)

Notes: PWB3, PWB3 - AKA CAPACITOR PWB Show Image

[41] In Stock

SSA564A136A

FUSE(CURRENT)

Notes: 20A, F 20A‚ - 20 amp fuse Show Image

[42] In Stock

SSA564B044

HOLDER, FUSE

Show Image

[43] In Stock

RPC142A856

Lid Assy Control

[44] In Stock

SSA561B665

BLOCK TERMI

Notes: T1 Show Image

[45] In Stock

SSA561B699

BLOCK TERMI

Notes: T2

[46] In Stock

SSA551A195A

SENSOR

Notes: TH1,2,3,4, Replaces SSA551A199A - TH1,2,3,4/ LENGTH 94.5CM Show Image

[47] In Stock

SSA554B113

REACTOR

Show Image

[48] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR THI-R Show Image

[49] In Stock

RCJ941F001

SPRING

Notes: LENGTH 2.5CM Show Image

[50] Contact

RWA012A241

MANUAL,INSTRUCTION

Contact

[51] Contact

RWC011F009A

LABEL,MODEL NAME

Contact
