SCM48ZG-S HEAT EXCH. AND CONTROL

Name: SCM48ZG-S HEAT EXCH. AND CONTROL
SKU: SCM48ZG-S HEAT EXCH. AND CONTROL
Availability: InStock

SCM48ZG-S HEAT EXCH. AND CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

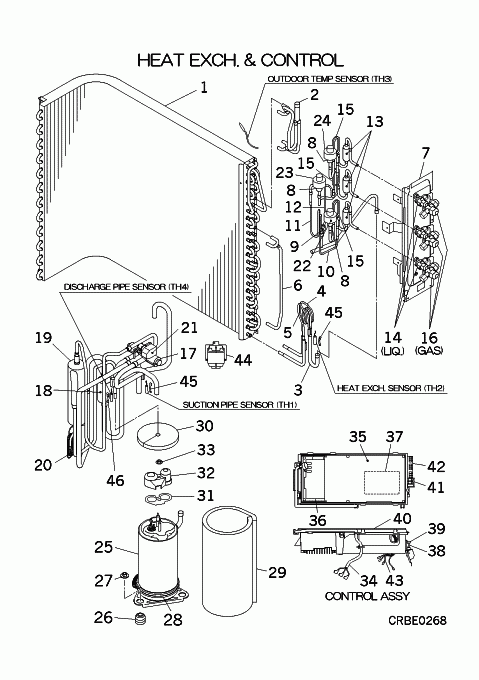

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-6] Out of Stock

RPC301A857

HEAT EXCH ASSY(AIR

[2] Contact

RPC321A976

PIPING ASSY

Contact

Notes: !

[3-5] Contact

RPC321B061

PIPE ASSY

Contact

[4] Contact

RPC315B917

CAPILLARY

Contact

Notes: !D2.6XD4.0 L500

[5] Contact

RPC315B918

CAPILLARY

Contact

Notes: !D2.6XD4.0 L500

[6] Contact

RPC321A890

PIPE ASSY

Contact

Notes: !

[7] Contact

RPC116A861A

BRACKET ASSY(VALVE

Contact

[8] In Stock

SSA387F051

VALVE,BODY(EXP)

Notes: EEV, 'BODY' ONLY. Does NOT include coil

[8-15] Contact

RPC304A860

PIPING ASSY(EXPAN)

Contact

[9] In Stock

SSA315A252B

DISTRIBUTOR

Show Image

[9-12] In Stock

RPC315A850

DISTRIBUTOR ASSY

Show Image

[10] Contact

RPC315B856

CAPILLARY,SUB(A)

Contact

Notes: !D2.6XD4.0 L300

[11] Contact

RPC315B857

CAPILLARY,SUB(B)

Contact

Notes: !D2.6XD4.0 L300

[12] Contact

RPC315B858

CAPILLARY,SUB(C)

Contact

Notes: !D2.6XD4.0 L300

[13] In Stock

SSA357A005A

STRAINER

Show Image

[14] In Stock

RPC381A852

VALVE,SERVICE(1/4"

Notes: LIQ. Show Image

[15] Contact

RCN315B001

CAPILLARY,SUB

Contact

Notes: !D2.6XD4.0 L300

[16] In Stock

RPC381A854

VALVE,SERVICE (3/8")

Notes: GAS Show Image

[17] In Stock

SSA382C068

4 WAY VALVE

Notes: 20S, 20S - REVERSING VALVE BODY - (NOT COIL) Show Image

[18] In Stock

SSA357A039

STRAINER

Show Image

[19] Contact

RPC354A902A

SEPARATOR ASSY,OIL

Contact

[19-20] Contact

RPC304A899

PIPING ASSY(DISCH)

Contact

[20] In Stock

RPC304A902A

PIPING ASSY(DISCH)

Notes: !D1.0XD2.0 L1000

[21] Out of Stock

RPC382F801

COIL ASSY,SOLENOID

Substitute: OUT OF PRODUCTION Notes: FOR 20S

[22] In Stock

SSA382F210C

COIL,SOLENOID

Notes: FOR EEV, FOR EEVA - 5 WIRES - WHITE PLUG/ LENGTH 56CM Show Image

[23] In Stock

SSA382F210D

COIL,SOLENOID

Notes: FOR EEVB, FOR EEVB - 5 WIRES - RED PLUG Show Image

[24] In Stock

SSA382F210F

COIL SOLENOID

Notes: FOR EEVC, EEVC - 5 wires

[25] In Stock

RSA201A001A

COMPRESSOR

Notes: 5CS102XFD, ***COMPRESSORS CANNOT BE RETURNED***

[26] In Stock

SSA941C241

CUSION

Show Image

[27] In Stock

SSA914C013A

NUT,FLANGE

Notes: 1pc Show Image

[28] Contact

RPC541B001

HEATER ASSY

Contact

Substitute: OUT OF PRODUCTION Notes: OUT OF PRODUCTION

[29] Contact

RPC154D865

INSULATION,COMP

Contact

Notes: SIDE

[30] Contact

RPC154D855

INSULATION,

Contact

Notes: UPPER

[31] Contact

RSA932C004A

GASKET

Contact

[32] In Stock

RSA947K005

COVER TERMINAL

Notes: FOR COMPRESSOR Show Image

[33] In Stock

SSA914C016

NUT

Notes: 1pc Show Image

[34] Contact

RPC504A887D

WIRING ASSY

Contact

Notes: FOR COMP.

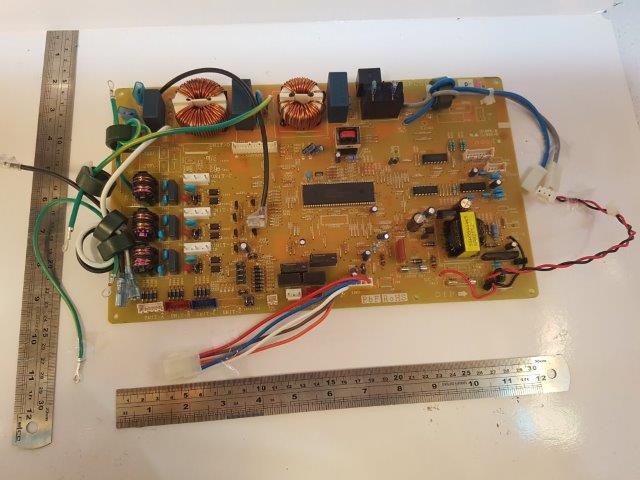

[35] In Stock

RPC505A860P

PWB ASSY(MAIN)

Notes: PWB1 Show Image

[36] In Stock

RPC505A861B

PWB ASSY (POWER)

Notes: PWB2 INVERTER, PWB2 POWER (INV) -FOR COMPRESSOR Show Image

[37] In Stock

RPC505A862

PWB ASSY (CAPACITOR)

Notes: PWB3, PWB3 - AKA CAPACITOR PWB Show Image

[38] In Stock

SSA564A136

FUSE

Notes: 15A

[39] In Stock

SSA564B044

HOLDER, FUSE

Show Image

[40] In Stock

RPC142A856

Lid Assy Control

[41] In Stock

SSA561B665

BLOCK TERMI

Notes: T1 Show Image

[42] In Stock

SSA561B699

BLOCK TERMI

Notes: T2

[43] In Stock

SSA551A195A

SENSOR

Notes: TH1,2,3,4, Replaces SSA551A199A - TH1,2,3,4/ LENGTH 94.5CM Show Image

[44] In Stock

SSA554B113

REACTOR

Show Image

[45] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR THI-R Show Image

[46] In Stock

RCJ941F001

SPRING

Notes: LENGTH 2.5CM Show Image

[47] Contact

RWA012A246

MANUAL,INSTRUCTION

Contact

[48] Contact

RWC011F009K

LABEL,MODEL NAME

Contact
