SCM45ZF-S HEAT EXCH. AND CONTROL

Name: SCM45ZF-S HEAT EXCH. AND CONTROL
SKU: SCM45ZF-S HEAT EXCH. AND CONTROL
Availability: InStock

SCM45ZF-S HEAT EXCH. AND CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

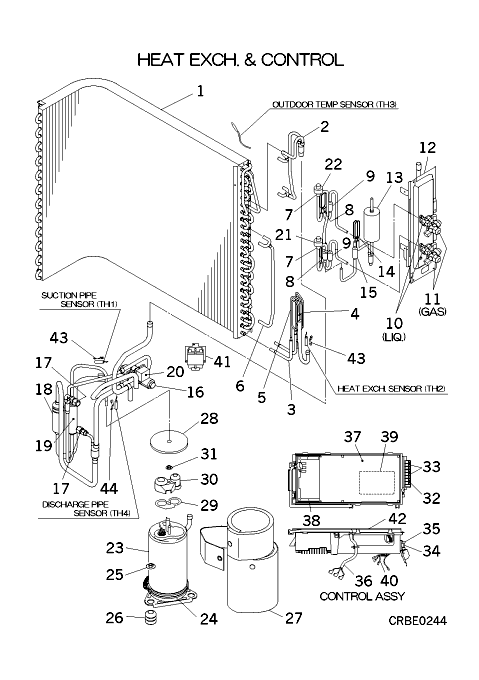

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-6] In Stock

RPC301A851

HEAT EXCH ASSY(AIR)

[2] Contact

RPC321A889

PIPING ASSY

Contact

Notes: !

[3-5] Contact

RPC321A888

PIPE ASSY

Contact

[4] Contact

RPC315B850

CAPILLARY

Contact

Notes: !D2.6XD4.0 L500

[5] Contact

RPC315B851

CAPILLARY

Contact

Notes: !D2.6XD4.0 L500

[6] Contact

RPC321A890

PIPE ASSY

Contact

Notes: !

[7] In Stock

SSA387F051

VALVE,BODY(EXP)

Notes: EEV, 'BODY' ONLY. Does NOT include coil

[7-10] Contact

RPC304A852

PIPING ASSY

Contact

[8] Contact

RCN315B001

CAPILLARY,SUB

Contact

Notes: !D2.6XD4.0 L300

[9] In Stock

SSA357A005A

STRAINER

Show Image

[10] In Stock

RPC381A852

VALVE,SERVICE(1/4"

Notes: LIQ. Show Image

[11] In Stock

RCP381A002A

VALVE,SERVI

Notes: GAS Show Image

[12] Contact

RPC116A855

BRACKET ASSY

Contact

[13] Contact

RPC352D852

RECEIVER

Contact

[13-15] Contact

RPC352D851

RECEIVER AS

Contact

[14] Contact

RCN315B001

CAPILLARY,SUB

Contact

Notes: !D2.6XD4.0 L300

[15] Contact

SSA325A036

PIPE,SHELL

Contact

[16] In Stock

SSA382C068

4 WAY VALVE

Notes: 20S, 20S - REVERSING VALVE BODY - (NOT COIL) Show Image

[17] Contact

RPC327B850A

VALVE ASSY SERVICE

Contact

[18] Contact

SSA357A027

STRAINER

Contact

[19] Contact

SSA325A001CA

PIPE,SHELL

Contact

[20] Out of Stock

RPC382F801

COIL ASSY,SOLENOID

Substitute: OUT OF PRODUCTION Notes: FOR 20S

[21] In Stock

SSA382F210C

COIL,SOLENOID

Notes: FOR EEV, FOR EEVA - 5 WIRES - WHITE PLUG/ LENGTH 56CM Show Image

[22] In Stock

SSA382F210D

COIL,SOLENOID

Notes: FOR EEVB, FOR EEVB - 5 WIRES - RED PLUG Show Image

[23] In Stock

RSA201A001A

COMPRESSOR

Notes: 5CS102XFD, ***COMPRESSORS CANNOT BE RETURNED***

[24] Contact

RPC541B001

HEATER ASSY

Contact

Substitute: OUT OF PRODUCTION Notes: OUT OF PRODUCTION

[25] In Stock

SSA914C013A

NUT,FLANGE

Notes: 1pc Show Image

[26] In Stock

SSA941C241

CUSION

Show Image

[27] Contact

RPC154D856

INSULATION,

Contact

Notes: SIDE

[28] Contact

RPC154D855

INSULATION,

Contact

Notes: UPPER

[29] Contact

RSA932C004A

GASKET

Contact

[30] In Stock

RSA947K005

COVER TERMINAL

Notes: FOR COMPRESSOR Show Image

[31] In Stock

SSA914C016

NUT

Notes: 1pc Show Image

[32] In Stock

SSA561B665

BLOCK TERMI

Notes: T1 Show Image

[33] In Stock

SSA561B675A

BLOCK,TERMI

Notes: TB Show Image

[34] In Stock

SSA564A136

FUSE

Notes: 15A

[35] In Stock

SSA564B044

HOLDER, FUSE

Show Image

[36] In Stock

RPC504A887

WIRING ASSY

Notes: FOR COMPRESSOR Show Image

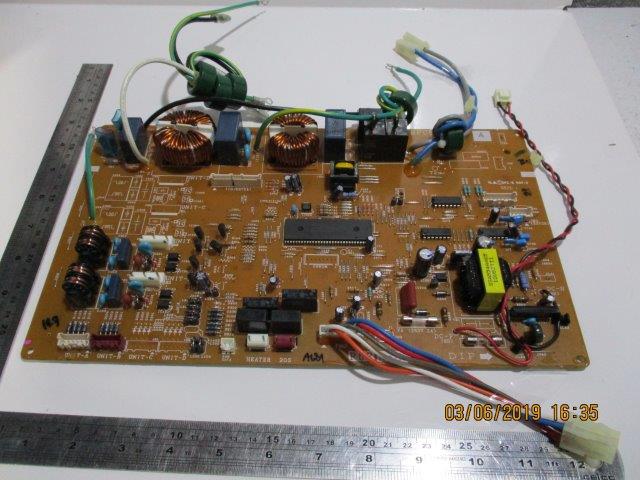

[37] In Stock

RPC505A860A

PWB ASSY MAIN

Notes: PWB1 Show Image

[38] In Stock

RPC505A861B

PWB ASSY (POWER)

Notes: PWB2 INVERTER, PWB2 POWER (INV) -FOR COMPRESSOR Show Image

[39] In Stock

RPC505A862

PWB ASSY (CAPACITOR)

Notes: PWB3, PWB3 - AKA CAPACITOR PWB Show Image

[40] In Stock

SSA551A195

SENSOR TEMP

Notes: Replaces SSA551A199 Show Image

[41] In Stock

SSA554B113

REACTOR

Show Image

[42] In Stock

RPC142A856

Lid Assy Control

[43] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR THI-R Show Image

[44] In Stock

RCJ941F001

SPRING

Notes: LENGTH 2.5CM Show Image

[45] Contact

RWA012A241

MANUAL,INSTRUCTION

Contact

[46] Contact

RWC011F009

LABEL,MODEL NAME

Contact
