SCM40ZS-S HEAT EXCH. AND CONTROL

Name: SCM40ZS-S HEAT EXCH. AND CONTROL
SKU: SCM40ZS-S HEAT EXCH. AND CONTROL
Availability: InStock

SCM40ZS-S HEAT EXCH. AND CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

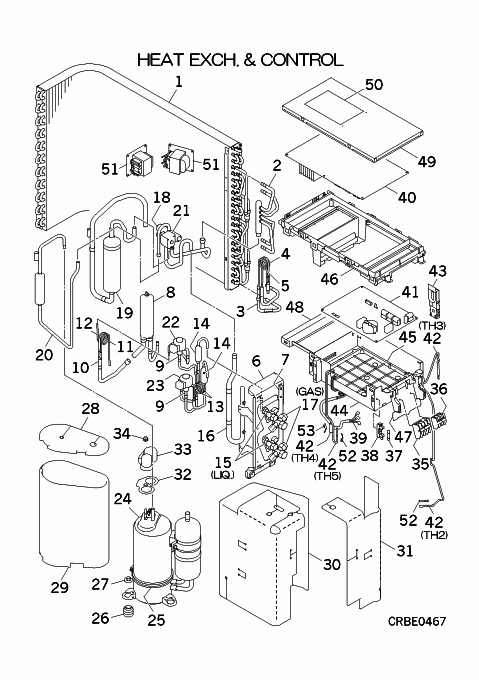

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-5] In Stock

RPC301A200

HEAT EXCH ASSY(AIR)

[2] Contact

RPC315D200

HEADER ASSY,GAS

Contact

[3-5] Contact

RPC321B176

PIPE ASSY

Contact

[4] Contact

RPC315B200

CAPILLARY

Contact

[5] Contact

RPC315B200A

CAPILLARY

Contact

[6] Contact

RPC116A200

BRACKET ASSY(VALVE

Contact

[7] Contact

RPC116A205

BRACKET ASSY(VALVE

Contact

[8] Contact

RPC352D200

RECEIVER ASSY

Contact

[9] In Stock

SSA387F051

VALVE,BODY(EXP)

Notes: 'BODY' ONLY. Does NOT include coil

[9-15] Contact

RPC304A201

PIPING ASSY(EXPAN)

Contact

[10-12] Contact

RPC321B196

PIPE ASSY

Contact

[11] Contact

RPC315B200

CAPILLARY

Contact

[12] Contact

RPC315B201

CAPILLARY

Contact

[13] Contact

RPC315B201

CAPILLARY

Contact

[14] In Stock

SSA357A005A

STRAINER

Show Image

[15] In Stock

RPC381A852C

VALVE SERVICE (1/4

Notes: LIQ. Show Image

[16-17] Contact

RPC315D202

HEADER ASSY,GAS

Contact

[17] In Stock

RPC381A854B

VALVE,SERVICE(3/8"

Notes: GAS, LENGTH 7.5CM Show Image

[18] In Stock

SSA382C097

4 WAY VALVE

Notes: Reversing Valve Body - Body only

[19] Contact

RPC304A203

PIPING ASSY(SUCTIO

Contact

[20] Contact

RPC304A204

PIPING ASSY(DISCH)

Contact

[21] In Stock

RSA382F013AP

COIL ASSSY SOLENOID

Notes: Reversing valve solenoid coil - blue wiring harness, red plug Show Image

[22] In Stock

SSA382F210BL

COIL,SOLENOID

Notes: LENGTH 39.5CM Show Image

[23] In Stock

SSA382F210D

COIL,SOLENOID

Notes: FOR EEVB - 5 WIRES - RED PLUG Show Image

[24] In Stock

AHT201C114FA

COMPRESSOR ASSY

Notes: ***COMPRESSORS CANNOT BE RETURNED***

[25] Contact

RPC541B001H

HEATER ASSY(CRANK)

Contact

[26] In Stock

SSA941C346A

CUSHION,RUBBER

Notes: 1pc, FOR COMPRESSOR Show Image

[27] In Stock

SSA914C013A

NUT,FLANGE

Notes: 1pc Show Image

[28] Contact

RPC154D200

INSULATION,COMP

Contact

[29] Contact

RPC154D201

INSULATION,COMP

Contact

[30] Contact

RPC154D202

INSULATION

Contact

[31] Contact

RPC154D203

INSULATION

Contact

[32] In Stock

RSA932C004

GASKET

Show Image

[33] In Stock

RSA947K005

COVER TERMINAL

Notes: FOR COMPRESSOR Show Image

[34] In Stock

SSA914C016

NUT

Notes: 1pc Show Image

[35] In Stock

SSA561B723C

BLOCK,TERMINAL

Show Image

[36] In Stock

SSA561B675A

BLOCK,TERMI

Show Image

[37] In Stock

SSA564A136

FUSE

[38] In Stock

SSA564B088

HOLDER,FUSE

Show Image

[39] In Stock

RPC504A200

WIRING ASSY

Notes: WIRING HARNESS FOR COMPRESSOR/ LENGTH 76CM Show Image

[40] In Stock

RCR505A100CB

PWB MAIN

Show Image

[41] In Stock

RCT505A006AK

PWB SUB

[42] In Stock

SSA551A232F

SENSOR ASSY

Show Image

[43] In Stock

RCV129A001A

HOLDER,SENSOR

Show Image

[44] Contact

RPC142A205

BOX ASSY,CONTROL

Contact

[45] Contact

RPC142A905

BOX,CONTROL(C)

Contact

[46] Contact

RPC142A201

BOX,CONTROL(A)

Contact

[47] Contact

RPC116A209

BRACKET(TB)

Contact

[48] Contact

RPC132A202

COVER,CONTROL

Contact

[49-50] Contact

RPC142A203

LID ASSY,CONTROL

Contact

[50] Contact

RPC011G200

LABEL,WIRING

Contact

[51] In Stock

SSA554B119

REACTOR

Show Image

[52] In Stock

RKJ941F001

SPRING LEAF

Show Image

[53] In Stock

RCJ941F001

SPRING

Notes: LENGTH 2.5CM Show Image

[54] Contact

RWC011F022

LABEL,MODEL NAME

Contact

SKU: SCM40ZS-S HEAT EXCH. AND CONTROL Category: Uncategorised
