SCM40ZJ-S HEAT EXCH. AND CONTROL

Name: SCM40ZJ-S HEAT EXCH. AND CONTROL
SKU: SCM40ZJ-S HEAT EXCH. AND CONTROL
Availability: InStock

SCM40ZJ-S HEAT EXCH. AND CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

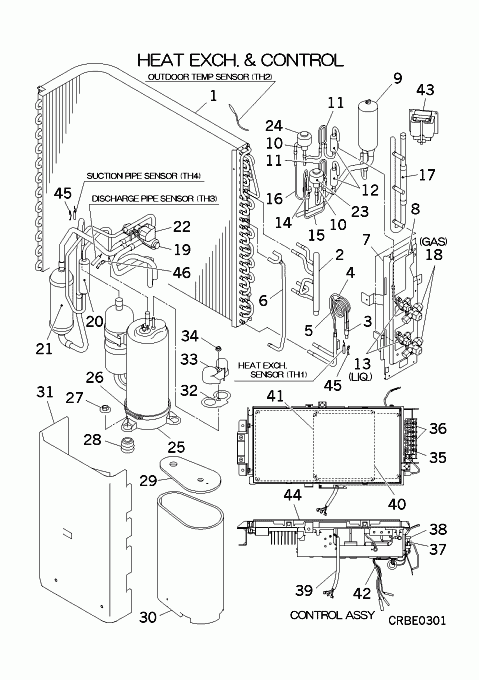

Check the parts position number [ ] matching with the drawing. Login to view prices.

[] In Stock

RPC504A916

HARNESS

Notes: MAIN PWB - SUB PWB (CNMAIN - CNSUB)

[1-6] In Stock

RPC301A858

HEAT EXCH ASSY(AIR

[2] Contact

RPC315D863

HEADER ASSY,GAS

Contact

[3-5] Contact

RPC321B047A

PIPE ASSY

Contact

[4] Contact

RPC315B870

CAPILLARY

Contact

Notes: !D2.6XD4.0 L500

[5] Contact

RPC315B871

CAPILLARY

Contact

Notes: !D2.6XD4.0 L500

[6] Contact

RPC321A890

PIPE ASSY

Contact

Notes: !

[7] Contact

RPC116A870A

BRACKET ASSY(VALVE

Contact

[8] Contact

RPC116A871A

BRACKET ASSY(VALVE

Contact

[9] Contact

RPC352D860A

RECEIVER ASSY

Contact

[10] In Stock

SSA387F051

VALVE,BODY(EXP)

Notes: EEV, 'BODY' ONLY. Does NOT include coil

[10-16] Out of Stock

RPC304A921

PIPING ASSY(EXPAN)

[11] Contact

RCN315B001

CAPILLARY,SUB

Contact

Notes: !D2.6XD4.0 L300

[12] In Stock

SSA357A005A

STRAINER

Show Image

[13] In Stock

RPC381A852

VALVE,SERVICE(1/4"

Notes: LIQ. Show Image

[14] Contact

RSA315A004B

DISTRIBUTOR

Contact

[14-16] Contact

RPC315A852

DISTRIBUTOR ASSY

Contact

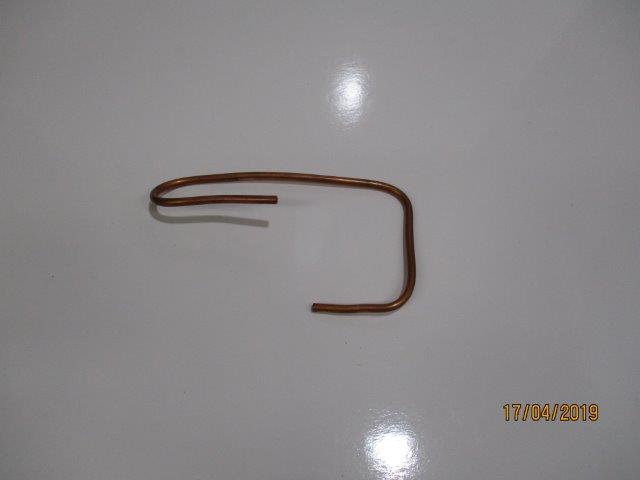

[15] In Stock

RPC315B872

CAPILLARY,SUB(A)

Notes: !D2.6XD4.0 L300 Show Image

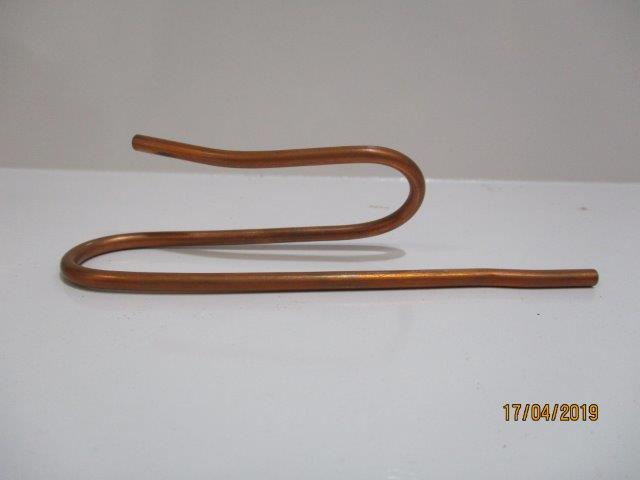

[16] In Stock

RPC315B873

CAPILLARY,SUB(B)

Notes: !D2.6XD4.0 L300 Show Image

[17] Contact

RCK325A501A

MUFFLER

Contact

[18] In Stock

RPC381A854

VALVE,SERVICE (3/8")

Notes: GAS Show Image

[19] In Stock

SSA382C068

4 WAY VALVE

Notes: 20S, 20S - REVERSING VALVE BODY - (NOT COIL) Show Image

[20] Contact

SSA325A001CA

PIPE,SHELL

Contact

[21] In Stock

AHT351A001

ACCUMULATOR

Show Image

[22] In Stock

RPC382F802

COIL ASSY,SOLENOID

Notes: FOR 20S, FOR 20S‚ / LENGTH 31CM Show Image

[23] In Stock

SSA382F210C

COIL,SOLENOID

Notes: FOR EEV, FOR EEVA - 5 WIRES - WHITE PLUG/ LENGTH 56CM Show Image

[24] In Stock

SSA382F210D

COIL,SOLENOID

Notes: FOR EEVB, FOR EEVB - 5 WIRES - RED PLUG Show Image

[25] In Stock

AHT201C134DA

COMPRESSOR ASSY

Notes: RMT5113MDE2, ***COMPRESSORS CANNOT BE RETURNED***

[26] Out of Stock

RPC541B001F

HEATER ASSY(CRANK)

[27] In Stock

SSA914C013A

NUT,FLANGE

Notes: 1pc Show Image

[28] Contact

SSA941C346

CUSHION,RUBBER

Contact

[29] Contact

RPC154D903

INSULATION,COMP

Contact

Notes: COMP UPPER

[30] Contact

RPC154D871

INSULATION,COMP

Contact

Notes: COMP BODY

[31] Contact

RPC154D851A

INSULATION

Contact

Notes: OUTSIDE

[32] In Stock

RSA932C004

GASKET

Show Image

[33] In Stock

RSA947K005

COVER TERMINAL

Notes: FOR COMPRESSOR Show Image

[34] In Stock

SSA914C016

NUT

Notes: 1pc Show Image

[35] In Stock

SSA561B665

BLOCK TERMI

Notes: T1 Show Image

[36] In Stock

SSA561B675A

BLOCK,TERMI

Notes: TB Show Image

[37] In Stock

SSA564A136

FUSE

Notes: 15A

[38] In Stock

SSA564B088

HOLDER,FUSE

Show Image

[39] In Stock

RPC504A912

WIRING ASSY

Notes: FOR COMP. Show Image

[40] In Stock

RCT505A005JA

PWB (MAIN)

Notes: PWB1, TOP BOARD Show Image

[41] In Stock

RCT505A006

PWB ASSY(SUB)

Notes: PWB2

[42] In Stock

SSA551A232D

SENSOR ASSY

Notes: TH1,2,3,4 Show Image

[43] In Stock

SSA554B113

REACTOR

Show Image

[44] In Stock

RPC142A906

LID ASSY,CONTROL

[45] In Stock

RKJ941F001

SPRING LEAF

Show Image

[46] In Stock

RCJ941F001

SPRING

Notes: LENGTH 2.5CM Show Image

[47] Contact

RWC011F017A

LABEL,MODEL NAME

Contact
